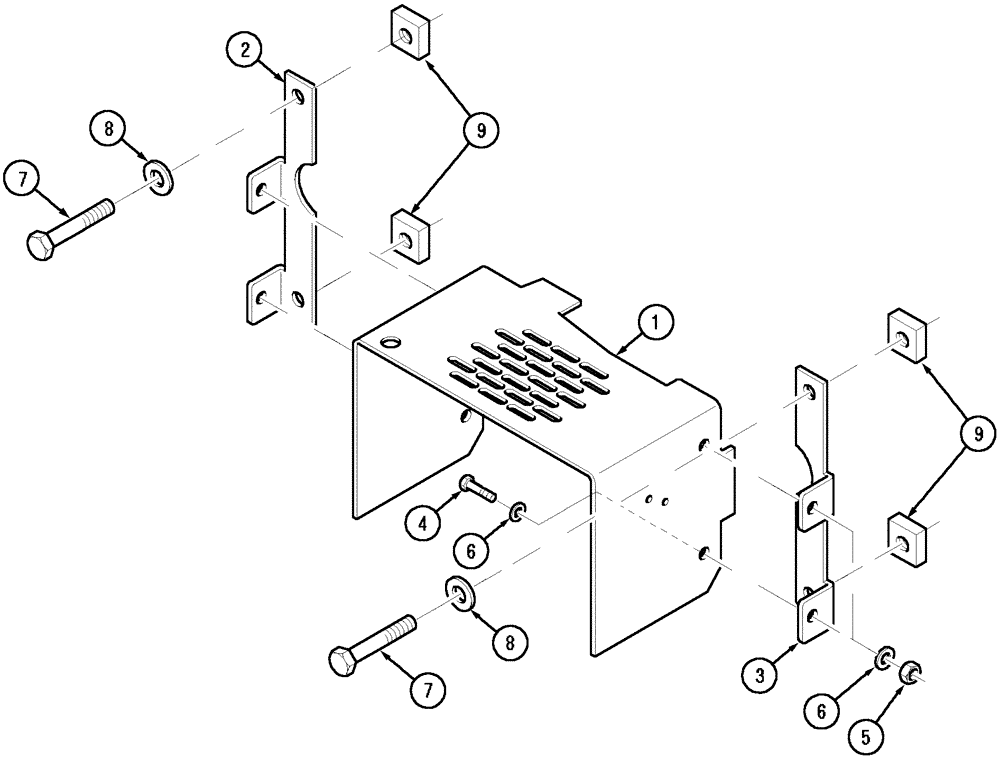

Запчасти Case IH MX150 (09-63) - P.T.O. SHIELD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

Europe Only

1шт.

331279A1

PROTECTION PLATE

Shield, Consists Of 1A - 9

1шт.

1

362924A1

GUARD

Dromone

1шт.

1b

252285A2

PROTECTION PLATE

Without Trailer Hitch

1шт.

2

252286A1

LARGE PLATE

PLATE, LARGE , Left

1шт.

3

252291A1

LARGE PLATE

PLATE, LARGE , Right

1шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

7

828-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

M16 x 170; 10.9

4шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

9

252342A1

PLATE,SMALL SQUARE

Mounting, Shield

4шт.
