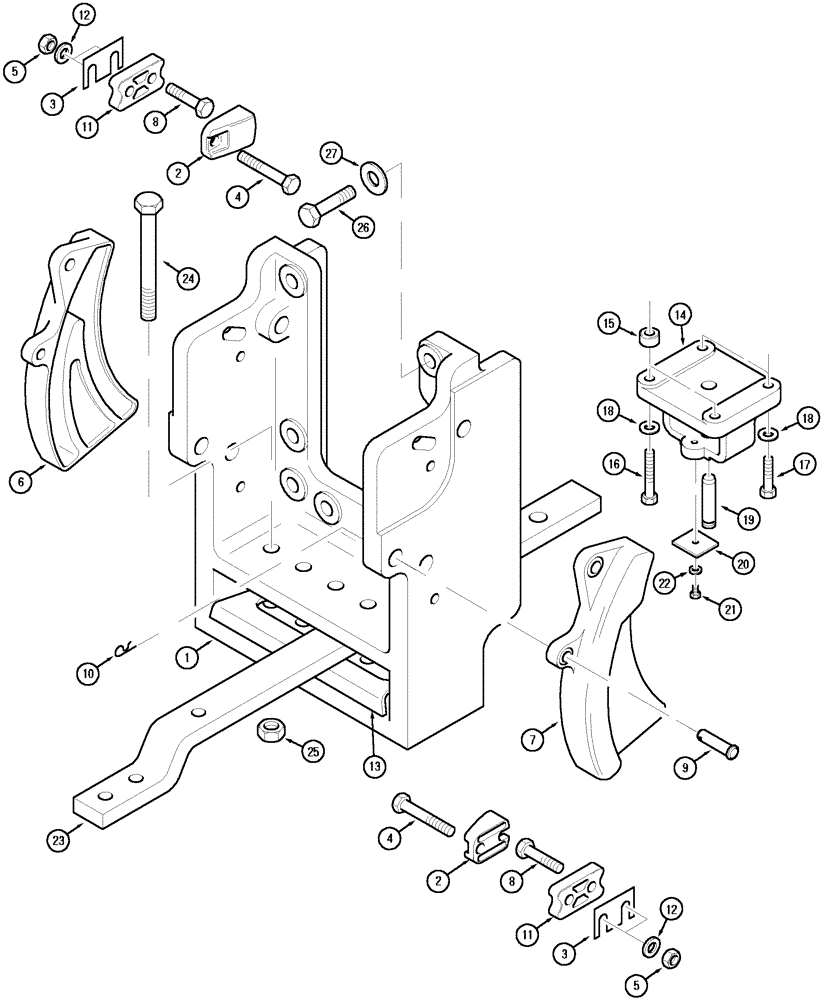

Запчасти Case IH MX150 (09-60) - SUPPORT AND LIMITERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

N.A. Only

1шт.

1

229006A2

SUPPORT

1шт.

2

301248A2

BUMPER

2шт.

3

189946A1

SHIM,76mm OD x 1.03mm Thk

6шт.

4

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

4шт.

5

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

6

228479A1

CAM

Left

1шт.

7

228480A1

CAM

Right

1шт.

8

805-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

m20 x 60, 10,9

2шт.

9

439-51233

HEADED PIN,3/4" x 2 1/16"

3/4 x 2-1/16

2шт.

10

1978738C1

HAIR PIN COTTER

3/16"

2шт.

11

301927A1

SPACER

2шт.

12

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

13

143821A4

PLATE ASSY.

1шт.

14

232755A2

HITCH BRACKET

1шт.

15

1331722C1

LARGE PIN

PIN, LARGE

2шт.

16

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

17

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

2шт.

18

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

19

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

20

67828C1

RETAINER

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

22

892-11012

LOCK WASHER,M12

1шт.

23

228476A1

DRAWBAR

Swinging

1шт.

23

325815A1

DRAWBAR

Swinging, Straight, Not Illustrated

1шт.

24

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

25

832-10416

NUT,M16 x 2, Cl 8

2шт.

26

828-16230

BOLT,Hex, M16 x 2 x 230mm, Cl 10.9

M16 x 230, 10.9

8шт.

27

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
