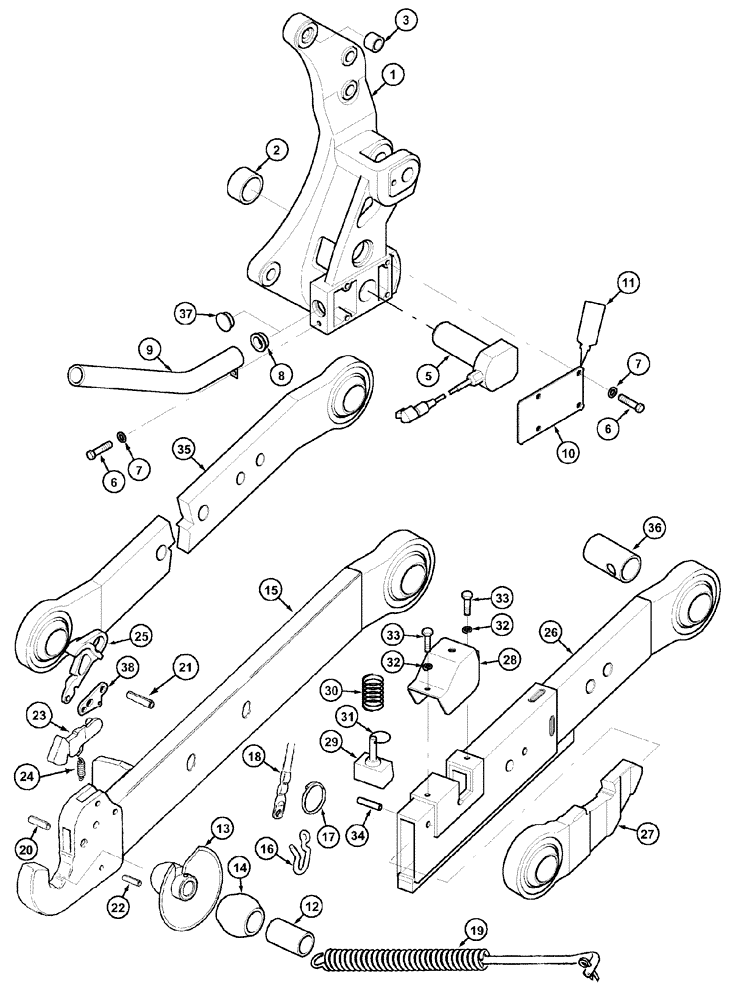

Запчасти Case IH MX150 (09-59) - HITCH LOWER LIFT LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

Category III

1шт.

1

234001A3

SUPPORT ASSY.

Right, Includes 2,3

1шт.

1

234000A3

SUPPORT ASSY.

Left, Includes 2,3

1шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

1шт.

3

1331722C1

LARGE PIN

PIN, LARGE

1шт.

5

403057A1

SENSOR

With Draft Control

2шт.

5

192718A1

HEADED PIN,37.01mm OD x 121.35mm L

Without Draft Control, N.A. Only

2шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

10шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10шт.

8

1960765C2

GROMMET

2шт.

9

248823A1

TUBE

2шт.

10

240782A1

PLATE

2шт.

11

345-73

SEALANT

4шт.

12

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

Conversion, Category III - II

2шт.

Europe Only

1шт.

Items 13 - 19

1шт.

13

381642A1

BALL,Cat 3 Flanged, 37.50mm Dia, Low Sulfur, W/ Chain Assy

Catagory III, Flange

1шт.

13b

132123A1

BALL

28,4 ID/64 OD, Optional;Cat.3-2

1шт.

14

359188A2

BALL JOINT

32 ID/60 OD

1шт.

14b

359189A2

BALL JOINT,37.5mm ID x 63.84mm OD

Catagory III

1шт.

15

238028A2

LOWER LINK

Left

1шт.

15

238029A2

LOWER LINK

Right

1шт.

16

255784A1

CLIP,ELECTRICAL

1шт.

17

1534796C1

LOCK WASHER

4шт.

18

1534794C1

ROPE

1800 mm

1шт.

18

1534793C1

ROPE

1200 mm

1шт.

19

1252040C1

SPRING

Rod, If So Equipped

1шт.

19

189584A1

BAR ASSY.

CBM, Rod

1шт.

370217A1

COTTER PIN,2x10mm OD x 40mm L, 4x6mm OD x 40mm L

Consists Of 20A,22B

1шт.

370225A1

SET

Consists Of 20B,22A

1шт.

370030A1

LATCH

CAT III, Consists Of 21,23,25,38

1шт.

370031A1

LATCH

CAT II, Consists Of 21,23A,25,38

1шт.

20

359049A1

PIN

5 x 15 mm

1шт.

20b

738-51040

LOCK PIN,M10 x 40, Slotted

10 x 36 mm

2шт.

20c

738-51036

COTTER PIN,M10 x 36, Slotted

2шт.

21

NSS

NOT SOLD SEPARAT

8.3 x 10 mm, Pin

1шт.

22

838-3640

PIN,M6 x 40, Coiled

1шт.

22b

738-5636

ROLL PIN,M6 x 36, Slotted

4шт.

22c

838-3640

PIN,M6 x 40, Coiled

4шт.

23

357750A1

LEVER

CAT III

1шт.

23b

359044A1

DRAW HOOK

CAT II

1шт.

24

357749A1

SPRING,16.5mm OD x 36mm L

1шт.

25

357748A1

LATCH

N.A. Only, Items 26 - 37

1шт.

26

236631A1

LINK ASSY.

Left, Front

1шт.

26

236632A1

LINK ASSY.

Right, Front

1шт.

27

236633A1

LINK ASSY.

Left, Rear

1шт.

27

236634A1

LINK ASSY.

Right, Rear

1шт.

304885A1

COVER ASSY

Consists Of 28 - 31

1шт.

28

258767A1

COVER

1шт.

29

258766A1

PIN ASSY.

1шт.

30

113774A1

SPRING

1шт.

31

1965556C1

RING

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

33

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

34

838-31260

PIN,M12 x 60, Coiled

12 x 60

1шт.

35

241028A1

LINK ASSY.

Category II, III, IIIN

2шт.

36

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

2шт.

37

933573R1

PLUG,M32, Tapered

32 mm, Without Draft Control

2шт.

38

357751A1

LEVER

1шт.
