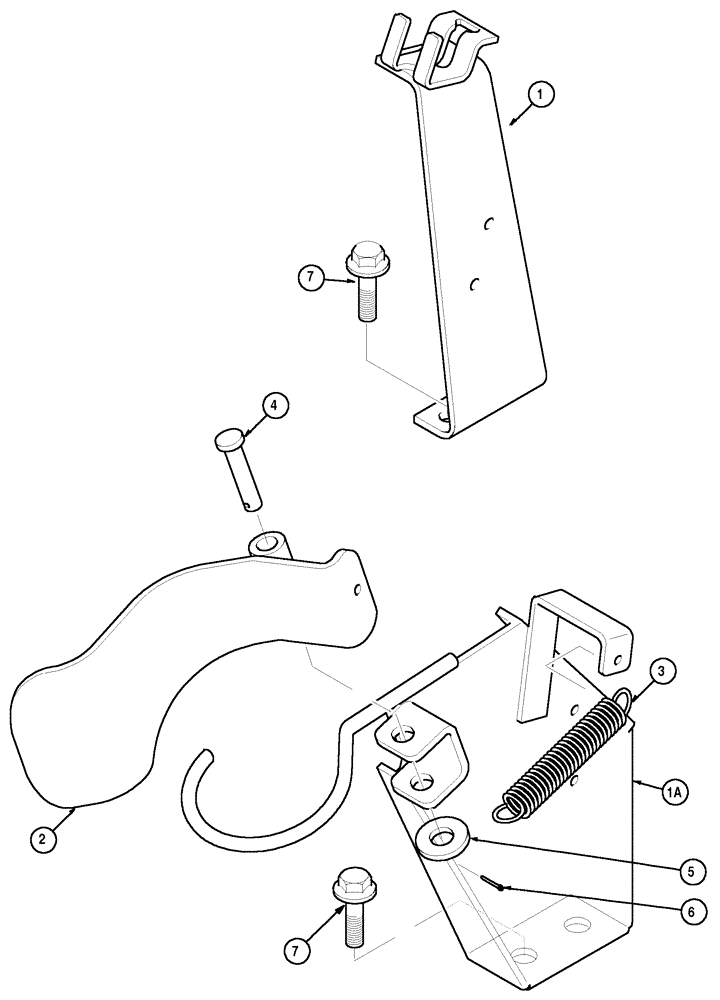

Запчасти Case IH MX150 (09-56) - STORAGE SUPPORT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

324338A2

SUPPORT ASSY.

1шт.

301937A2

SUPPORT ASSY.

Inc. 1A - 8, N.A. Only

1шт.

No Longer Available, Replace WIth 324338A1

1шт.

1a

301794A2

SUPPORT

1шт.

No Longer Available, Order 324338A2

1шт.

2

283977A1

SUPPORT ASSY.

1шт.

No Longer Available, Order 324338A2

1шт.

3

292978A1

SPRING

1шт.

4

728-1060

CLEVIS PIN,M10 x 60

1шт.

6

733-3220

COTTER PIN,M3.2 x 20

1шт.

7

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

Optional

1шт.

4

439-1638

HEADED PIN,3/8" x 2 3/8"

3/8 x 2-3/8

1шт.

5

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
