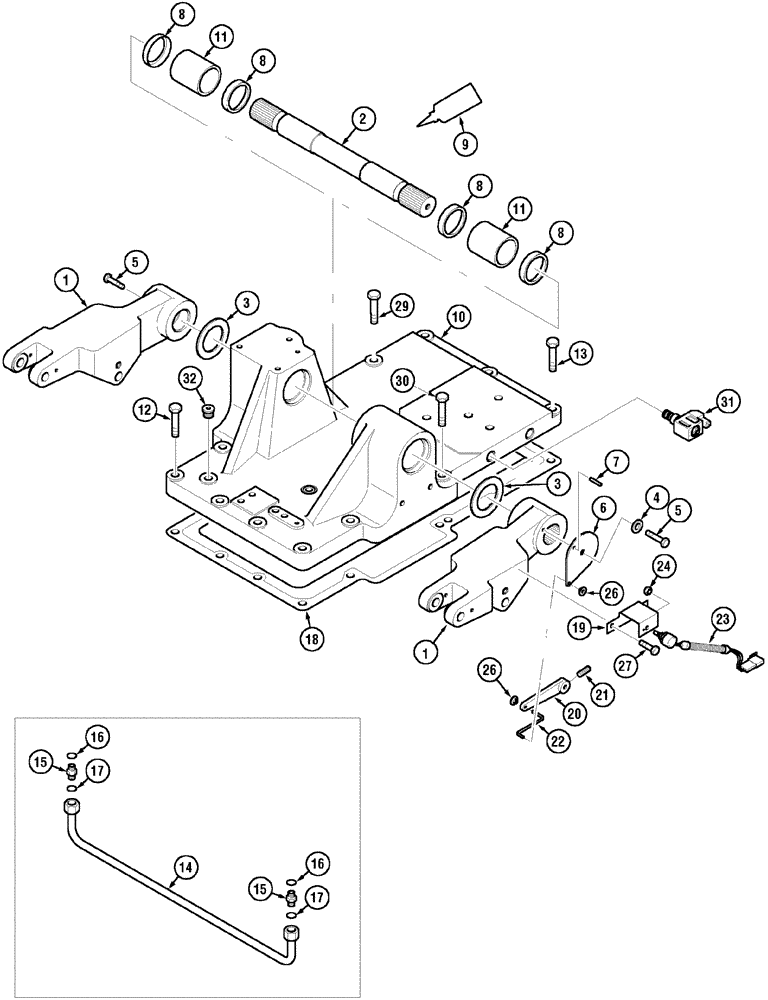

Запчасти Case IH MX150 (09-53) - HITCH ROCKSHAFT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

239188A2

LOWER LINK

Right

1шт.

1

239189A2

LOWER LINK

Left

1шт.

2

239190A1

ROCKSHAFT

1шт.

3

229937A1

SHIM

2 mm

2шт.

4

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

1шт.

5

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Hex, M16 x 35, 10.9, Full Thd

2шт.

6

244373A1

LEVER

1шт.

7

838-3528

PIN,M5 x 28, Coiled

1шт.

8

1347918C1

OIL SEAL,70.64mm ID x 89.1mm OD x 12.7mm Thk

4шт.

9

132095A1

GREASE

14

1шт.

10

228478A3

COVER

Rear Frame, Top

1шт.

11

1331849C1

BUSHING,70.71mm ID x 75.43mm OD x 76.2mm L

2шт.

12

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

13

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

14

275401A1

PIPE,10 mm OD, 459.7, 41.2 mm Length

P.T.O., Supply

1шт.

15

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 16, 17

2шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

305396A3

GASKET

1шт.

19

244371A1

SUPPORT

1шт.

20

283471A1

LEVER

1шт.

21

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

1шт.

22

244374A1

ROD

1шт.

23

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Includes 24

1шт.

23b

393795A1

POTENTIOMETER,1000 Ohm, 8V

Includes 24

1шт.

24

NSS

NOT SOLD SEPARAT

1/4 in, Nut, Special

1шт.

26

96686C1

RING

2шт.

27

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

28

1971726C1

BREATHER,1/4" - 18

Not Illustrated, See Page(s) 6-63

1шт.

29

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

1шт.

30

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

31

349295A1

SOLENOID VALVE

1шт.

32

1345888C1

PLUG

1шт.
