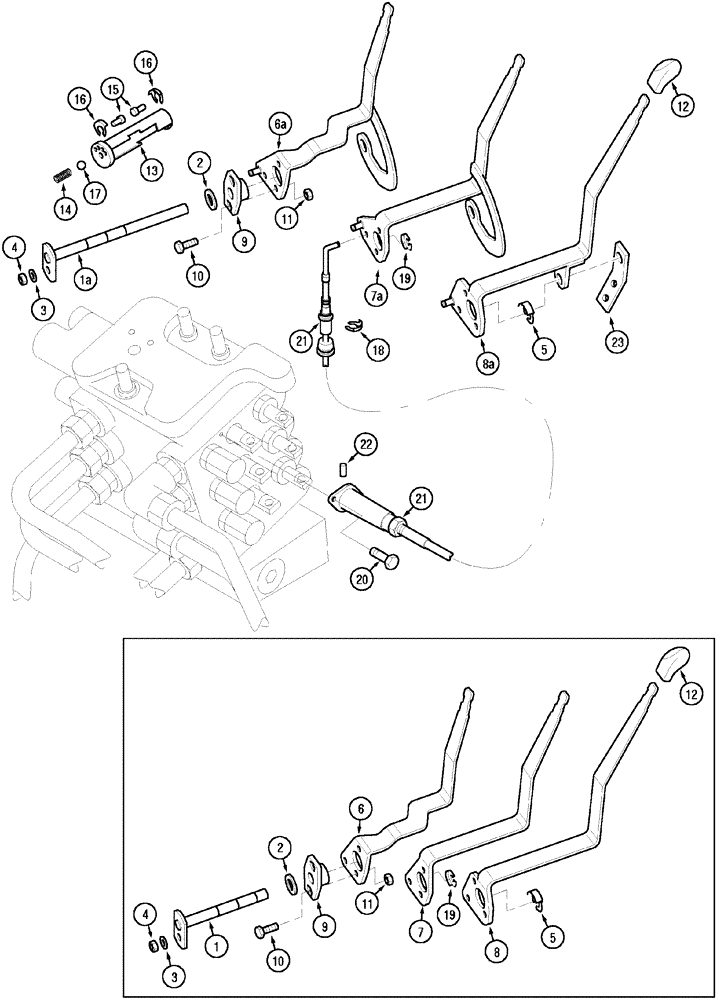

Запчасти Case IH MX150 (08-38) - CONTROLS - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

356513A1

FIELD ATTACHMENT

Auxiliary

1шт.

361037A1

FIELD ATTACHMENT

Auxiliary, Additional

1шт.

356585A1

FIELD ATTACHMENT

With 3 Remote Valves Only

1шт.

1

245495A1

HANDLED SHAFT

1шт.

1b

344818A1

HANDLED SHAFT

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

5

240908A1

CLIP,ELECTRICAL

1шт.

6

238473A4

CONTROL LEVER

1шт.

6b

344814A1

CONTROL LEVER

1шт.

7

237631A5

CONTROL LEVER

1шт.

7b

344815A1

CONTROL LEVER

1шт.

8

238472A5

CONTROL LEVER

1шт.

8b

344816A1

CONTROL LEVER

1шт.

9

175312A1

SUPPORT

3шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

11

832-10406

NUT,M6 x 1, Cl 8

6шт.

12

177107A1

GRIP

6 mm

3шт.

12

116756A1

BUTTON

5 mm

3шт.

13

1530971C2

LOCK

1шт.

14

1531484C1

SPRING

3шт.

15

T103011

PIN,6mm OD x 17mm L

6шт.

16

3221347R2

CIRCLIP

6шт.

17

511-2360

BALL,6mm OD, Gr 200

3шт.

18

800-4313

CIRCLIP,M13

3шт.

19

800-436

CIRCLIP,M6

3шт.

20

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

21

253652A4

CABLE ASSY.,1555mm L

3шт.

22

323080A2

CLEVIS PIN

3шт.

23

344819A1

SUPPORT

1шт.
