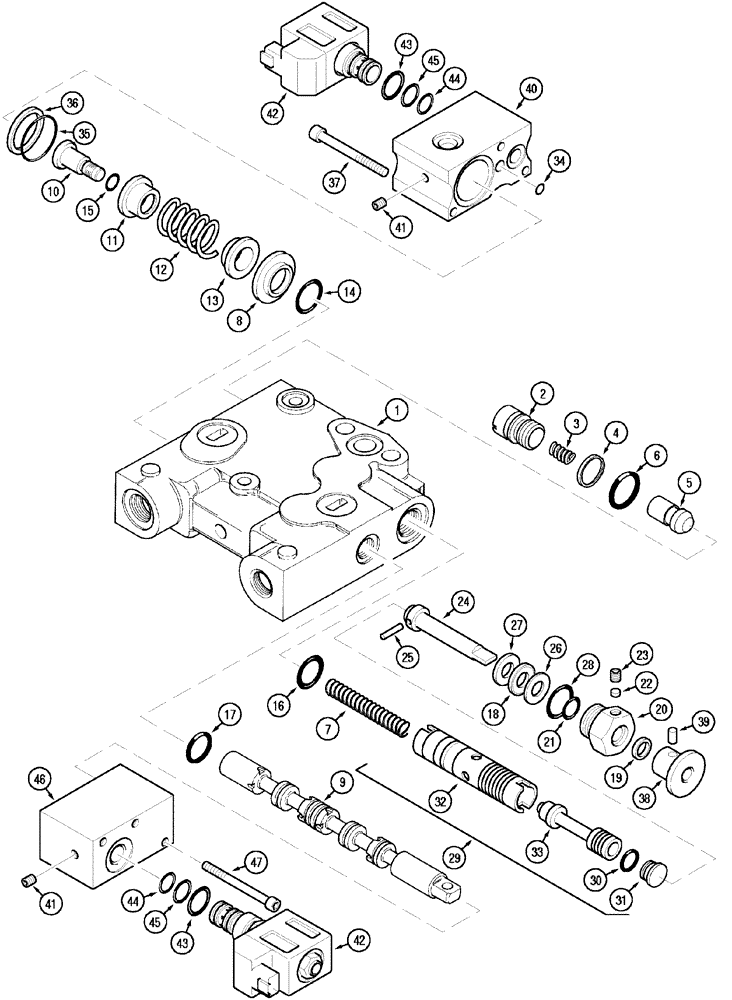

Запчасти Case IH MX150 (08-36) - REMOTE VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

4th Bank

1шт.

318371A2

VALVE, CONTROL

Consists Of 1 - 70

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1542563C1

KIT

Includes 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

185448A2

SPRING

1шт.

8

G108630

HOLDER

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

339585A1

STUD

1шт.

11

G108913

SPRING CUP

1шт.

12

G108915

SPRING

1шт.

13

G108914

SPRING CUP

1шт.

14

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

15

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

17

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

111205A1

VALVE

Flow Control, Includes 18 - 28

1шт.

18

F13537

THRUST BEARING

1шт.

19

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

20

111206A1

PLUG

1шт.

21

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

22

111207A1

INSERT

2шт.

23

178-896

SET SCREW,Hex Soc, #10-32 x 3/16"

2шт.

24

1980302C2

ROD

Includes 25

1шт.

25

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1/8 x 11/16 in

1шт.

26

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

27

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

140906A3

VALVE

Includes 30 - 33

1шт.

30

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

31

183491A1

PLUG

1шт.

32

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

33

NSS

NOT SOLD SEPARAT

Spool

1шт.

34

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

9/16 ID x 1/16

1шт.

35

238-6028

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

1-3/8 ID x 1/16

1шт.

36

284517A1

SPACER

1шт.

37

864-6080

HEX SOC SCREW,M6 x 80mm, Cl 8.8

4шт.

38

313132A2

LEVER

1шт.

39

877-6056

SET SCREW,M5 x 6mm

1шт.

322281A2

COVER ASSY

Consists Of 40 - 45

1шт.

40

NSS

NOT SOLD SEPARAT

Cover

1шт.

41

243756A1

PLUG

1шт.

42

349295A1

SOLENOID VALVE

Includes 43,44,45

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

45

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

322282A1

COVER ASSY

Consists Of 41 - 46

1шт.

46

NSS

NOT SOLD SEPARAT

Cover

1шт.

47

864-6065

HEX SOC SCREW,M6 x 65mm, Cl 8.8

3шт.
