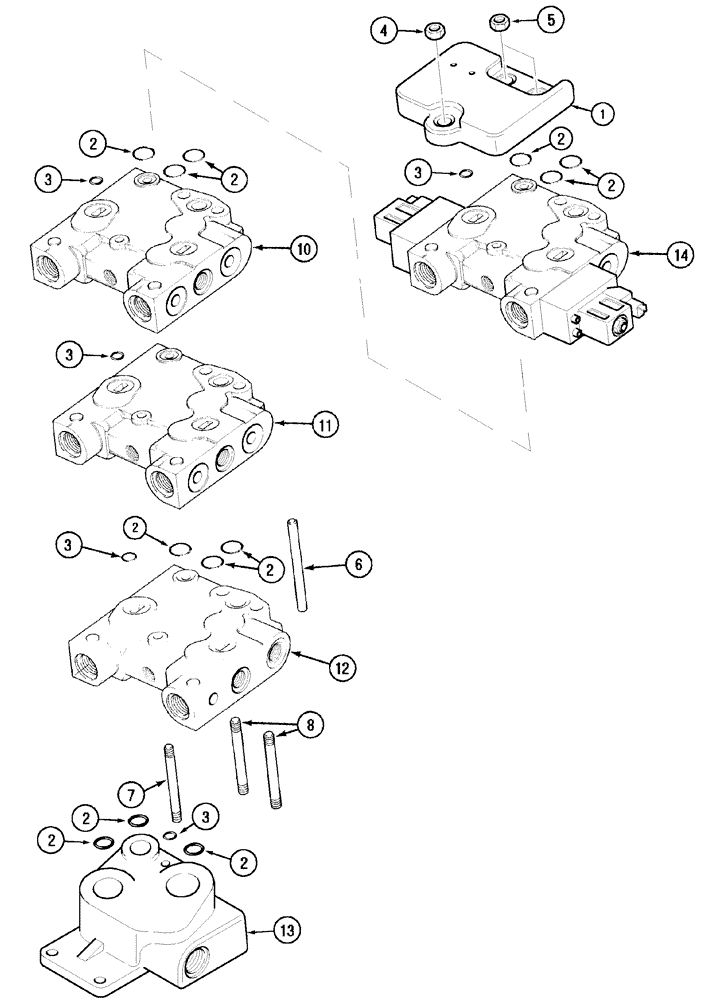

Запчасти Case IH MX150 (08-28) - REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS

1

230881A1

PLATE ASSY.

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

4

304951A1

NUT

m10

1шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

6

G110178

ROD

110 mm, Without Power Beyond

1шт.

7

1346128C3

TRUSS ROD

10 x 154 mm

1шт.

7

1346130C3

TRUSS ROD

10 x 199 mm, Without Power Beyond

1шт.

7

1346132C3

TRUSS ROD

10 x 243 mm, 4 Valve

1шт.

8

1346129C3

TRUSS ROD

12 x 154 mm, Without Power Beyond

2шт.

8

1346131C3

TRUSS ROD

12 x 199 mm

2шт.

8

1346133C3

TRUSS ROD

12 x 243 mm, 4 Valve

2шт.

10

185459A2

VALVE, CONTROL

Single Acting, See Figure 8-32

1шт.

11

199683A3

VALVE, CONTROL

See Figure 8-29

1шт.

12

185453A4

VALVE, CONTROL

Auxiliary, See Figure 8-29

1шт.

13

276469A2

MANIFOLD ASSY

Power Beyond, Inlet And Outlet, See Figures 8-16,8-17,8-18

1шт.

14

318371A2

VALVE, CONTROL

4th Bank, See Figure 8-36

1шт.
