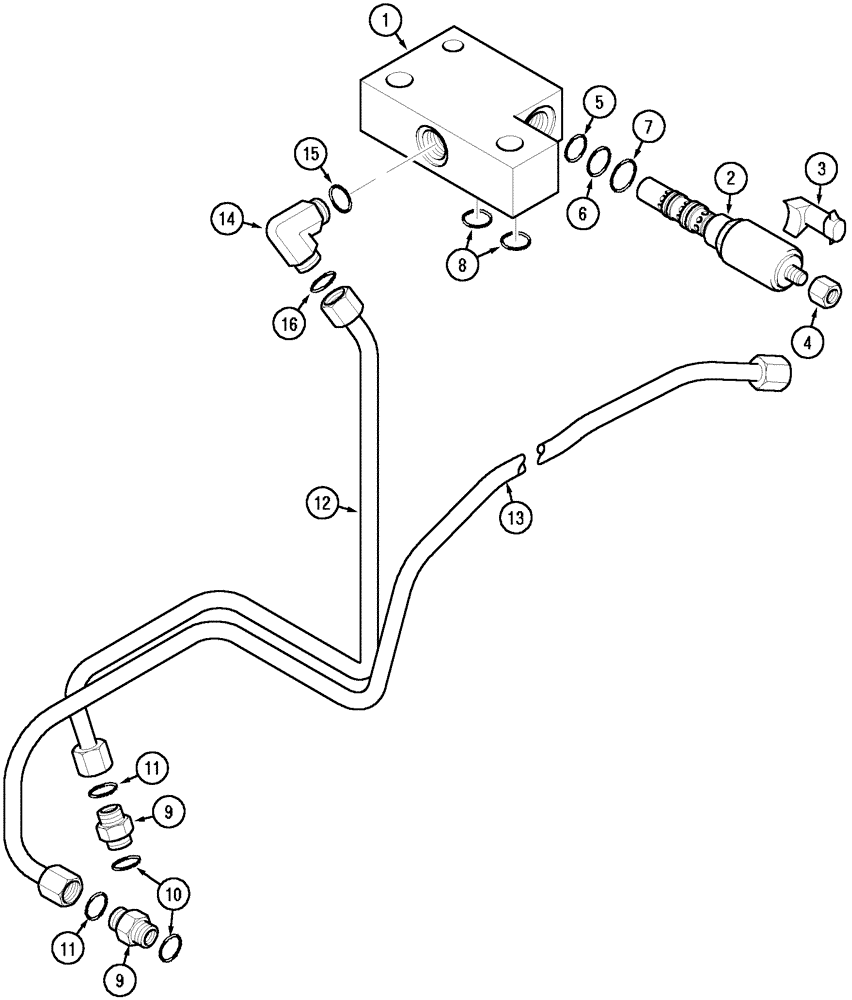

Запчасти Case IH MX150 (08-27) - P.T.O. VALVE AND LINKAGE (35) - HYDRAULIC SYSTEMS

257386A1

VALVE

P.T.O., Consists Of 1 - 7

1шт.

1

257385A1

BLOCK ASSY.

1шт.

180584A1

SOLENOID VALVE,Proportional Pressure Relief

Consists Of 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

3

190639A1

COIL ASSY.

1шт.

4

190640A1

NUT

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

9

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10,11

2шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

258997A1

PIPE

Supply, Europe Only

1шт.

12

258998A1

HYD TUBE,12 mm OD, 358, 217 mm Length

Supply, N.A. Only

1шт.

13

315547A1

PIPE

Lubrication, Europe Only

1шт.

13

314870A1

HYD TUBE

Lubrication, N.A. Only, Not Illustrated

1шт.

14

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 15, 16

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
