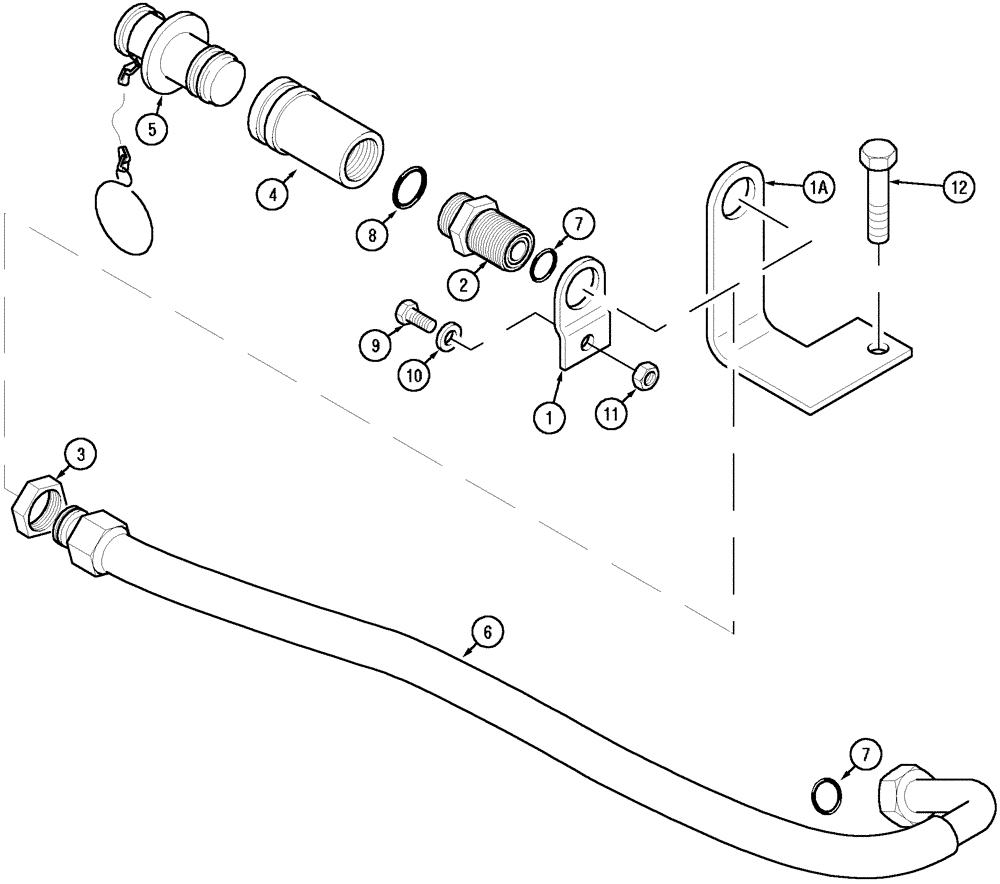

Запчасти Case IH MX150 (08-22) - MOTOR RETURN COUPLER (35) - HYDRAULIC SYSTEMS

1

282543A1

SUPPORT

1шт.

1a

357943A2

SUPPORT

With 2 Remote Valves Only

1шт.

2

1531931C2

CONNECTOR, ELEC

CONNECTOR , Includes 7,8, N.A. Only

1шт.

2

1533233C2

HYD CONNECTOR

Order Also 7,8A, Europe Only

1шт.

3

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

4

1272400C1

COUPLING

N.A. Only

1шт.

4

1533232C1

COUPLING

Europe Only

1шт.

5

1954133C1

PLUG

N.A. Only, Not Illustrated

1шт.

5

1533433C1

CAP

Europe Only

1шт.

6

282542A1

HOSE,19.00 mm ID x 834.00 mm

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

N.A. Only

1шт.

8a

1533305C1

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

Europe Only

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

825-1408

NUT,M8, Cl 8

1шт.

12

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

Use with 1A

1шт.
