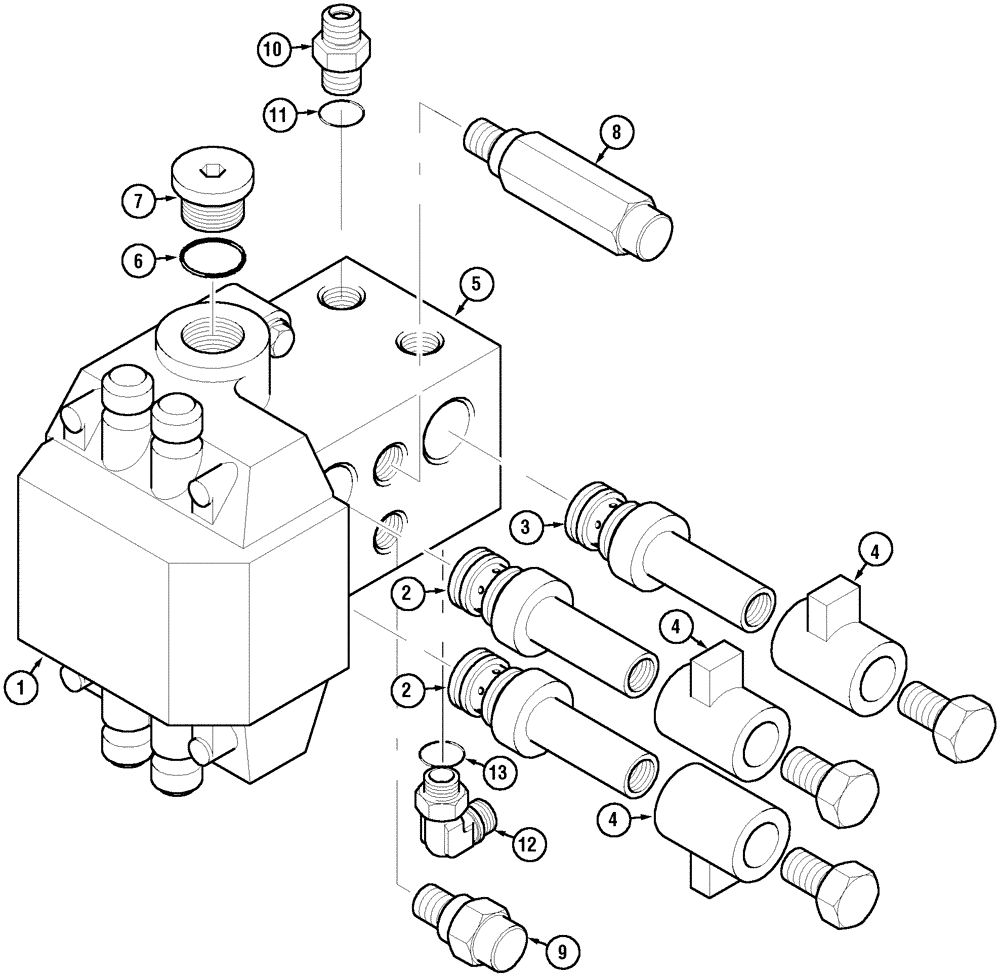

Запчасти Case IH MX150 (08-20) - VALVE ASSEMBLY SUSPENSION (35) - HYDRAULIC SYSTEMS

Europe Only

1шт.

337023A3

VALVE

Consists Of 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Block

1шт.

2

340489A1

SOLENOID VALVE

2шт.

3

340490A1

SPOOL

1шт.

4

340487A1

SOLENOID VALVE

3шт.

5

340494A1

VALVE BLOCK

1шт.

6

340493A1

SEAL

2шт.

7

338534A1

PLUG

2шт.

8

355713A1

UNION

1шт.

9

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

10

338242A1

FITTING

Includes 11

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

375914A1

ELBOW

M18 x 1/2 in, Includes 13

1шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
