Запчасти Case IH MX150 (08-18) - INLET AND OUTLET MANIFOLD (35) - HYDRAULIC SYSTEMS

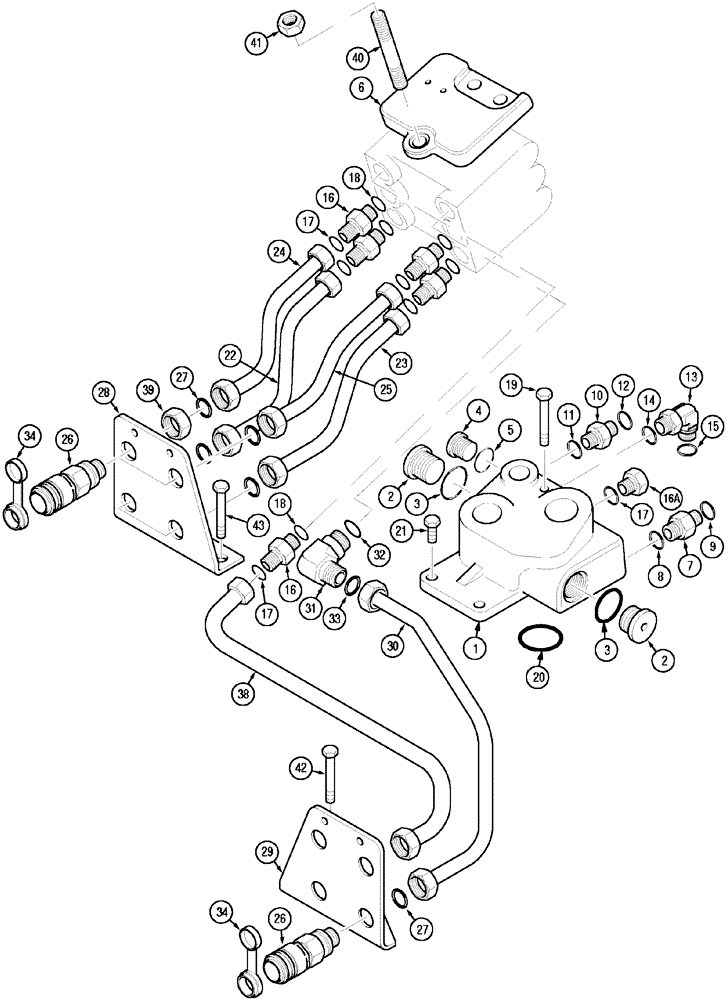

Схема запчастей Case IH MX150 - (08-18) - INLET AND OUTLET MANIFOLD (35) - HYDRAULIC SYSTEMS
2
26
11
17
18
42
3
43
22
1
7
16
24
33
13
4
39
28
20
34
12
26
38
5
8
10
6
17
41
27
31
21
30
32
16
15
3
14
18
40
2
9
34
27
25
29
23
19
17

Артикул

Название

Примечание

Количество

Version Without Hitch

1шт.

With 3 Remote Valves Only

1шт.

1

276469A2

MANIFOLD ASSY

Includes 2 - 5

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Includes 3

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

4

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 5

1шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

230881A1

PLATE ASSY.

1шт.

7

254851A1

CHECK VALVE

Includes 8,9

1шт.

8

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 11, 12

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 14,15

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17, 18

5шт.

16b

221579A1

PLUG,M22 x 1.5 ORB

Includes 17

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

20

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

21

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

298336A1

HYD TUBE,16 mm OD, 212, 134 mm Length

1шт.

23

298337A1

HYD TUBE,16 mm OD, 212, 140 mm Length

1шт.

24

305167A1

HYD TUBE,16 mm OD, 162, 129 mm Length

1шт.

25

305168A1

HYD TUBE,16 mm OD, 161, 134 mm Length

1шт.

26

257481A2

COUPLING

N.A. Only

6шт.

26

313572A1

COUPLING, BREAK AWAY

Europe Only

6шт.

1534623C1

SEAL KIT

Seals, Use With 313572A1, Not Illustrated

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

28

309630A1

SUPPORT

Left

1шт.

29

305163A2

SUPPORT

Right

1шт.

30

298341A1

HYD TUBE

1шт.

31

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 32, 33

1шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

1954146C1

CAP

N.A. Only

6шт.

34

T104539

DUST CAP

Europe Only

6шт.

38

298340A1

HYD TUBE

1шт.

39

701-919

BHD LOCK NUT,1" - 14

N.A. Only, Includes 27

6шт.

40

1346130C3

TRUSS ROD

10 x 199 mm

1шт.

41

304951A1

NUT

m10

1шт.

42

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

43

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
