Запчасти Case IH MX150 (08-16) - INLET AND OUTLET MANIFOLD (35) - HYDRAULIC SYSTEMS

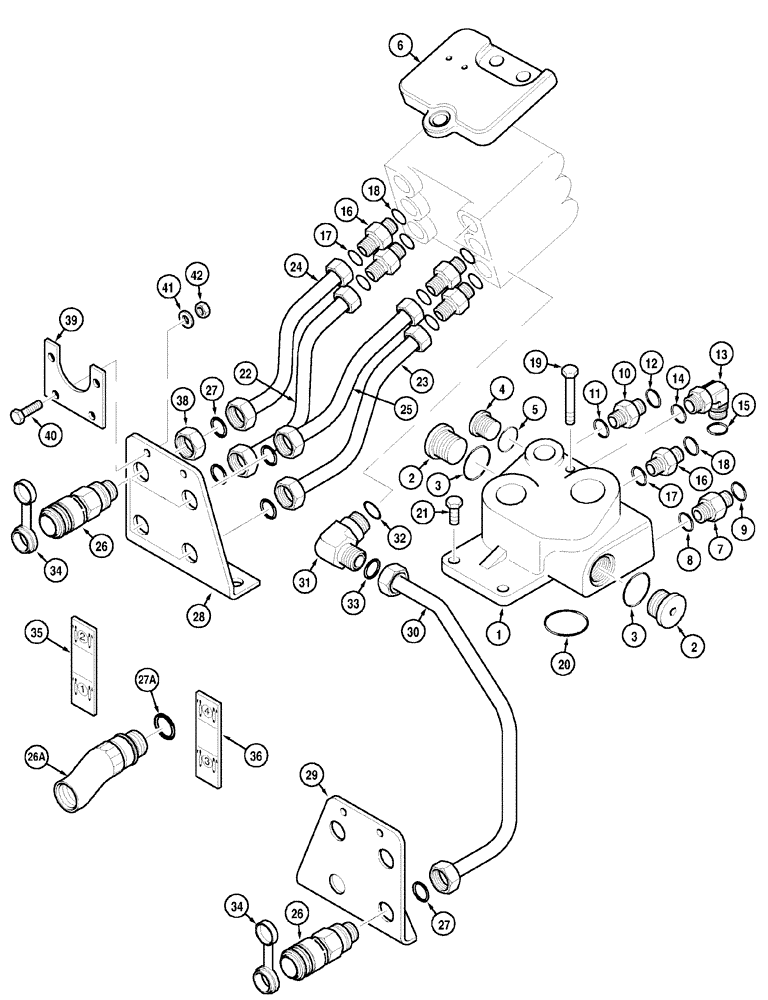

Схема запчастей Case IH MX150 - (08-16) - INLET AND OUTLET MANIFOLD (35) - HYDRAULIC SYSTEMS
3
29
6
41
34
9
16
10
24
4
28
39
34
27
36
23
40
35
32
11
38
2
33
5
15
16
21
17
14
1
17
12
19
7
18
26
31
13
20
42
27
22
18
2
8
3
25
30
26

Артикул

Название

Примечание

Количество

Version with Hitch

1шт.

1

276469A2

MANIFOLD ASSY

Includes 2 - 5, 327068A1

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Includes 3

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

4

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 5

1шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

230881A1

PLATE ASSY.

1шт.

7

254851A1

CHECK VALVE

Includes 8,9

1шт.

8

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 11, 12

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 14,15

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17, 18

5шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

20

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

21

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

298336A1

HYD TUBE,16 mm OD, 212, 134 mm Length

1шт.

23

298337A1

HYD TUBE,16 mm OD, 212, 140 mm Length

1шт.

24

305167A1

HYD TUBE,16 mm OD, 162, 129 mm Length

1шт.

25

305168A1

HYD TUBE,16 mm OD, 161, 134 mm Length

1шт.

26

257481A2

COUPLING

N.A. Only

5шт.

26

370508A1

COUPLING, BREAK AWAY

Europe Only

5шт.

26b

302635A1

COUPLING, BREAK AWAY

Optional, Europe Only, Includes 27A

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

27b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

28

305162A2

SUPPORT

Left

1шт.

29

305163A2

SUPPORT

Right

1шт.

30

298341A1

HYD TUBE

1шт.

31

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 32, 33

1шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

1954146C1

CAP

5шт.

35

305144A1

DECAL

See Page(s) 9-223

1шт.

36

391805A1

DECAL

See Page(s) 9-223

1шт.

38

701-919

BHD LOCK NUT,1" - 14

N.A. Only, Includes 27

5шт.

39

335150A1

BRACKET

N.A. Only

1шт.

40

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

42

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

1534623C1

SEAL KIT

Seals, Use With 313572A1, Not Illustrated

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 46
