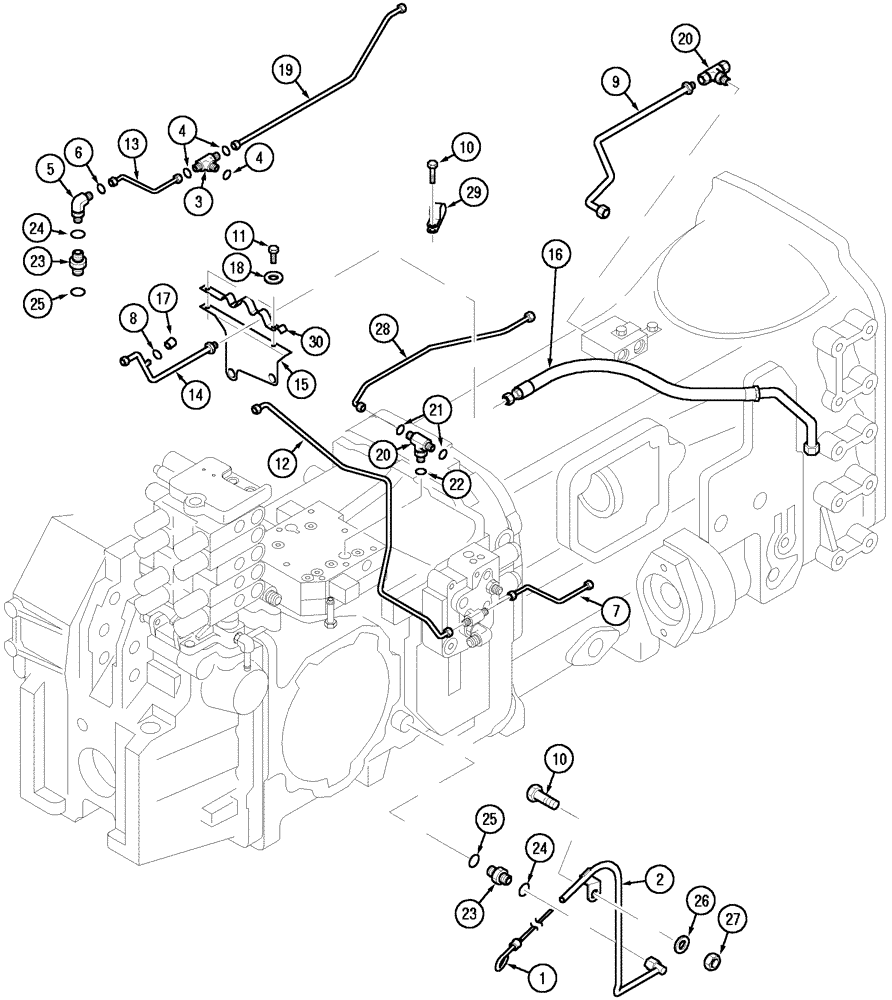

Запчасти Case IH MX150 (08-12) - EXTERNAL LUBRICATION CIRCUIT AND DIPSTICK (35) - HYDRAULIC SYSTEMS

1

256418A2

DIPSTICK

1шт.

2

303254A1

HYD TUBE,10 mm OD, 588, 95 mm Length

1шт.

3

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 4

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

303249A1

HYD TUBE,10 mm OD, 304, 93 mm Length

Hitch, Auxiliary

1шт.

7

320675A1

HYD TUBE,10 mm OD, 282, 105 mm Length

Hitch, Auxiliary, High Flow Hydraulic System

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

292292A1

HYD TUBE,16 mm OD, 479, 221 mm Length

Return, Oil Cooler

1шт.

10

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

303252A1

HYD TUBE,10 mm OD, 529, 260 mm Length

Auxiliary

1шт.

13

310551A1

HYD TUBE

Brake, Lubrication, See Page(s) 8-41

1шт.

14

297855A1

HYD TUBE,25 mm OD, 476, 149 mm Length

Auxiliary, Return

1шт.

15

299480A1

SUPPORT

Tube

1шт.

16

297856A4

HOSE ASSY.

Auxiliary

1шт.

17

701-907

CAP,1-3/16" - 12

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

19

224365A1

HYD TUBE,16-8 mm OD

Oil Cooler, Return, Pneumatic Trailer Brake

1шт.

19

280574A1

HYD TUBE,16 mm OD, 744, 167 mm Length

Oil Cooler, Return, Trailer Brake

1шт.

20

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 21

2шт.

20

336965A1

TEE

With Screen, Consists Of 20A - 22

1шт.

20b

NSS

NOT SOLD SEPARAT

Tee

1шт.

20c

1980065C3

SCREEN

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 24,25

2шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

26

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6,6 x 12,5 x 2 mm

1шт.

27

829-1306

NUT,M6, Cl 10

1шт.

28

258985A1

HYD TUBE,12 mm OD, 667, 123 mm Length

Oil Cooler, Return, Hydraulic, Trailer Brake

1шт.

29

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

30

299481A2

SUPPORT

1шт.
