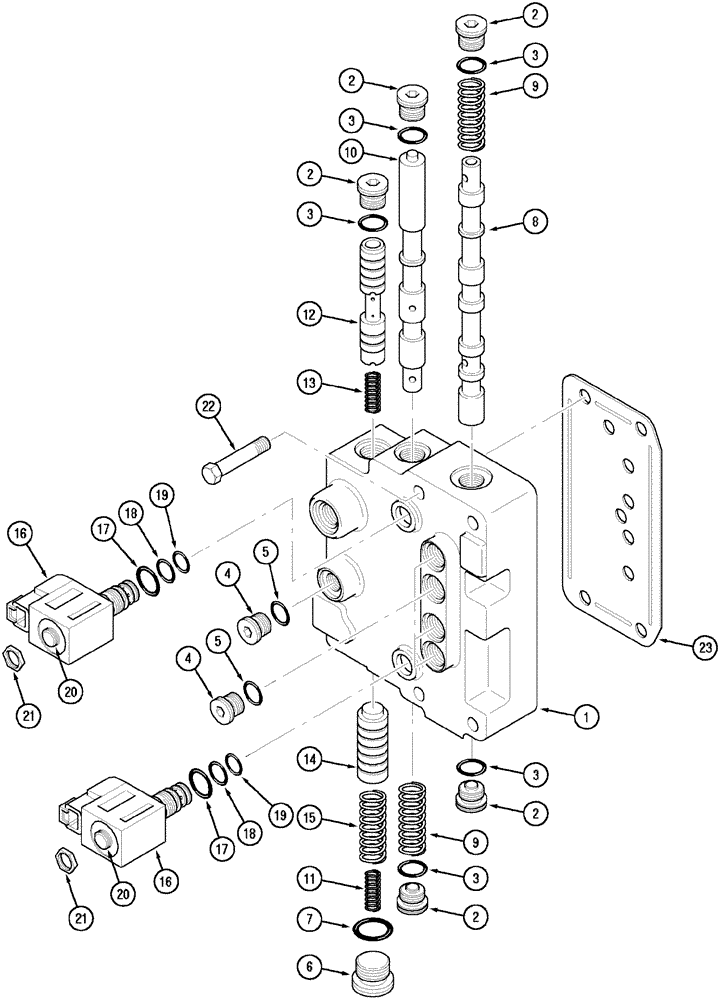

Запчасти Case IH MX150 (08-08) - POWERSHIFT VALVE ASSY. (35) - HYDRAULIC SYSTEMS

222656A6

VALVE, CONTROL

Consists Of 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

313915A1

PLUG

Includes 3

5шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 5

5шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

221580A1

PLUG,M27 x 2 ORB

Includes 7

1шт.

7

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

222660A6

SPOOL

Control

1шт.

9

182453A3

SPRING

Spool

2шт.

10

182460A5

SPOOL

Inlet

1шт.

11

178532A1

SPRING

Inner

1шт.

12

182461A3

SPOOL

Regulator

1шт.

13

182456A1

SPRING

Reducing

1шт.

14

182457A4

PISTON

Regulator

1шт.

15

178531A1

SPRING

Outer

1шт.

16

349295A1

SOLENOID VALVE

Includes 17 - 21

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

19

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Spool

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

23

B512247

SEAL,0.92mm Thk

1шт.
