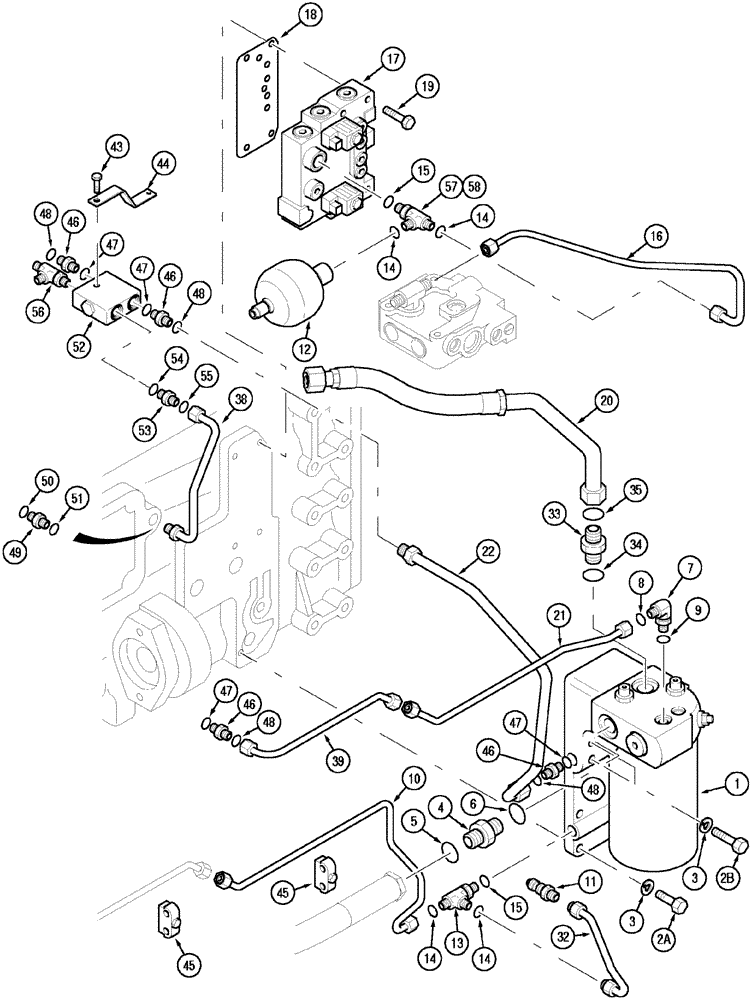

Запчасти Case IH MX150 (08-07) - HYDRAULIC PUMP, OIL LINES AND FILTER (35) - HYDRAULIC SYSTEMS

Version Without Hitch

1шт.

1

177356A1

HYDRAULIC OIL FILTER

See Page(s) 8-31

1шт.

2b

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

2c

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

5шт.

3

892-11010

LOCK WASHER,M10

8шт.

4

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Includes 5,6

1шт.

5

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

6

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

7

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 8, 9

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

314869A1

HYD TUBE

Upper, Creep Speed

1шт.

11

1995465C1

UNION

1/2 x 3/4 in

1шт.

12

368341A1

ACCUMULATOR,0.48L

1шт.

13

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 14,15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

258986A2

HYD TUBE,12 mm OD, 336, 165 mm Length

1шт.

17

222656A6

VALVE, CONTROL

Powershift, See Page(s) 8-27

1шт.

18

B512247

SEAL,0.92mm Thk

4WD

1шт.

19

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

20

297856A4

HOSE ASSY.

Auxiliary, Return

1шт.

21

314871A1

HYD TUBE,16 mm OD, 734, 104 mm Length

Shuttle, Lubrication

1шт.

22

303255A1

HYD TUBE

Oil Cooler, Rear

1шт.

32

252767A1

HYD TUBE

Lower, Creep Speed

1шт.

33

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes 34

1шт.

34

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

38

325037A1

HYD TUBE

Creep Speed, Lubrication

1шт.

39

314872A1

HYD TUBE

Shuttle, Lubrication, Rear

1шт.

43

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

44

298799A2

SUPPORT

Steering, Tube

1шт.

45

254699A1

FIXING BRACKET

2шт.

46

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 47, 48

4шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

49

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Includes 50,51

1шт.

50

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

51

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

52

297462A2

VALVE, CHECK

Bypass

1шт.

53

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 54,55

1шт.

54

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

56

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

336967A1

TEE

With Screen, Consists Of 14,15,57,58

1шт.

57

336967A1

TEE

1шт.

58

1980065C3

SCREEN

1шт.

35

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
