Запчасти Case IH MX150 (08-03) - HYDRAULIC CIRCUIT HITCH (35) - HYDRAULIC SYSTEMS

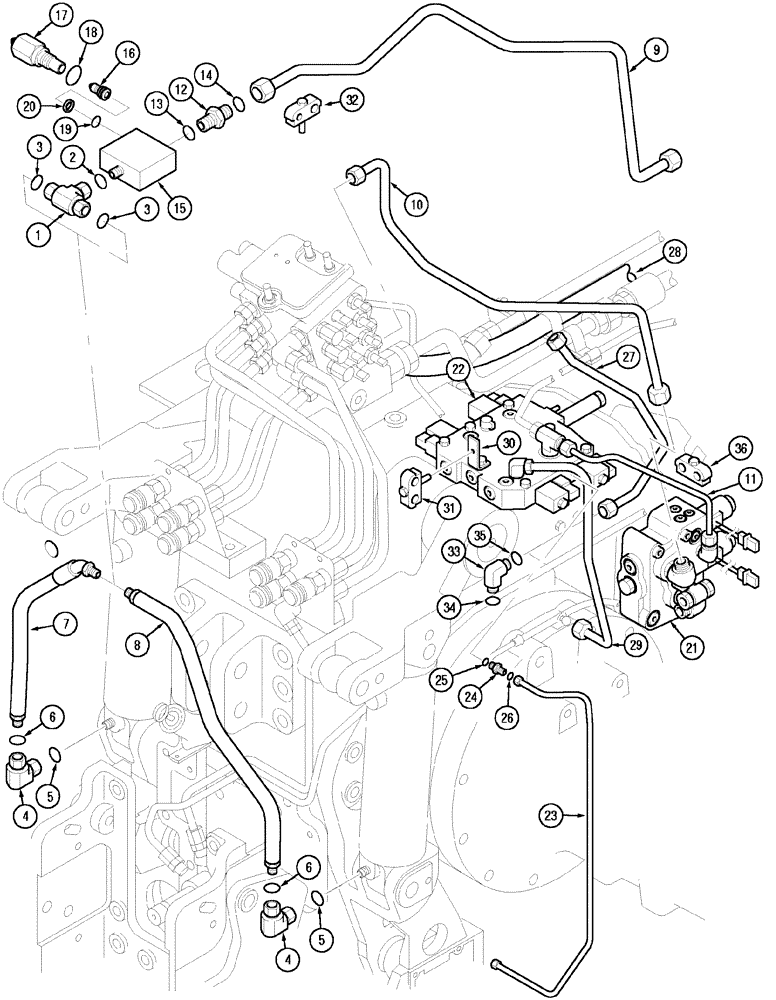

Схема запчастей Case IH MX150 - (08-03) - HYDRAULIC CIRCUIT HITCH (35) - HYDRAULIC SYSTEMS
35
5
21
20
34
6
10
32
33
2
2
27
18
17
9
5
16
4
36
3
30
26
22
11
15
28
8
25
13
3
7
12
6
24
14
4
29
31
23
1

Артикул

Название

Примечание

Количество

1

700-403

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Includes 2,3

1шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

2шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

335716A1

HOSE

1шт.

8

299461A1

HOSE,12.7 mm ID x 615.00 mm

1шт.

9

303250A1

HYD TUBE

Supply, Cylinder

1шт.

10

303253A1

HYD TUBE

Supply, Valve

1шт.

11

303248A1

HYD TUBE,10 mm OD, 204, 150 mm Length

Pilot

1шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

257418A1

VALVE

Includes 16 - 20

1шт.

16

G110077

KIT

1шт.

17

257417A1

BLOCK ASSY.

Order 257418A1

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

20

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

21

284230A1

VALVE

Hitch Control

1шт.

22

176304A5

VALVE, CONTROL

Shuttle, See Page(s) 6-55

1шт.

23

303251A1

HYD TUBE

4WD, Supply

1шт.

24

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 25, 26

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

298997A1

PIPE

Right Brake

1шт.

28

297854A1

HOSE,25.4mm ID x 934mm L

Auxiliary, Supply

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

For Hose 297854A1

2шт.

29

257492A2

PIPE

Diff Lock

1шт.

30

224175A1

SUPPORT

1шт.

31

252608A1

FIXING BRACKET

1шт.

32

258153A1

FIXING BRACKET

1шт.

33

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 34, 35

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

256553A1

CLAMP

1шт.
