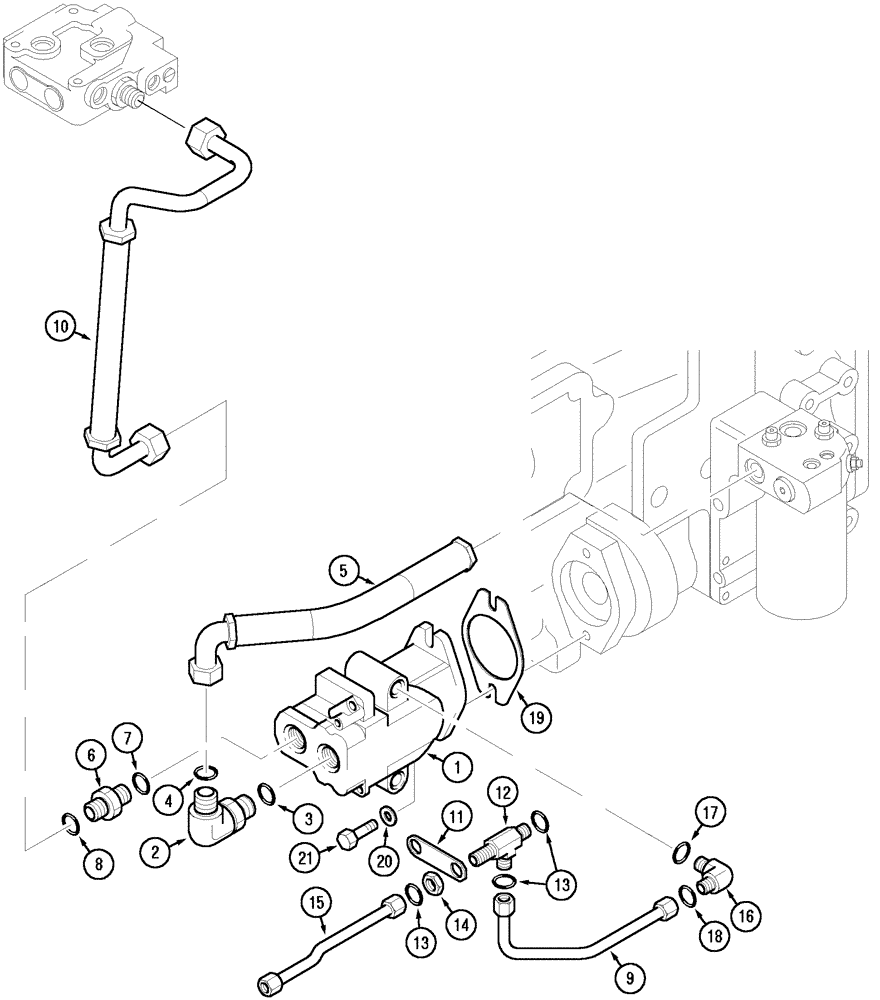

Запчасти Case IH MX150 (08-02) - HYDRAULIC PUMP, OIL LINES AND FILTER (35) - HYDRAULIC SYSTEMS

N.A. Only

1шт.

1

234927A1

PUMP, HYDRAULIC

High Flow Hydraulic System

1шт.

2

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Includes 3,4

1шт.

3

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

29,6 ID x 2,9 mm

1шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

320207A1

HOSE ASSY.

479 mm, Inlet

1шт.

6

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes 7,8

1шт.

7

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

9

320211A1

HYD TUBE,10 mm OD, 199, 72 mm Length

1шт.

10

320210A1

HOSE ASSY.

Supply

1шт.

11

320213A1

SUPPORT

1шт.

12

701-449

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Includes 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

701-909

NUT,11/16" - 16

1шт.

15

320675A1

HYD TUBE,10 mm OD, 282, 105 mm Length

Auxiliary

1шт.

16

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 17, 18

1шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

144169C2

GASKET,0.79mm Thk

1шт.

20

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

21

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
