Запчасти Case IH MX150 (07-11) - TRAILER BRAKE - PNEUMATIC COMPRESSOR MOUNTING (33) - BRAKES & CONTROLS

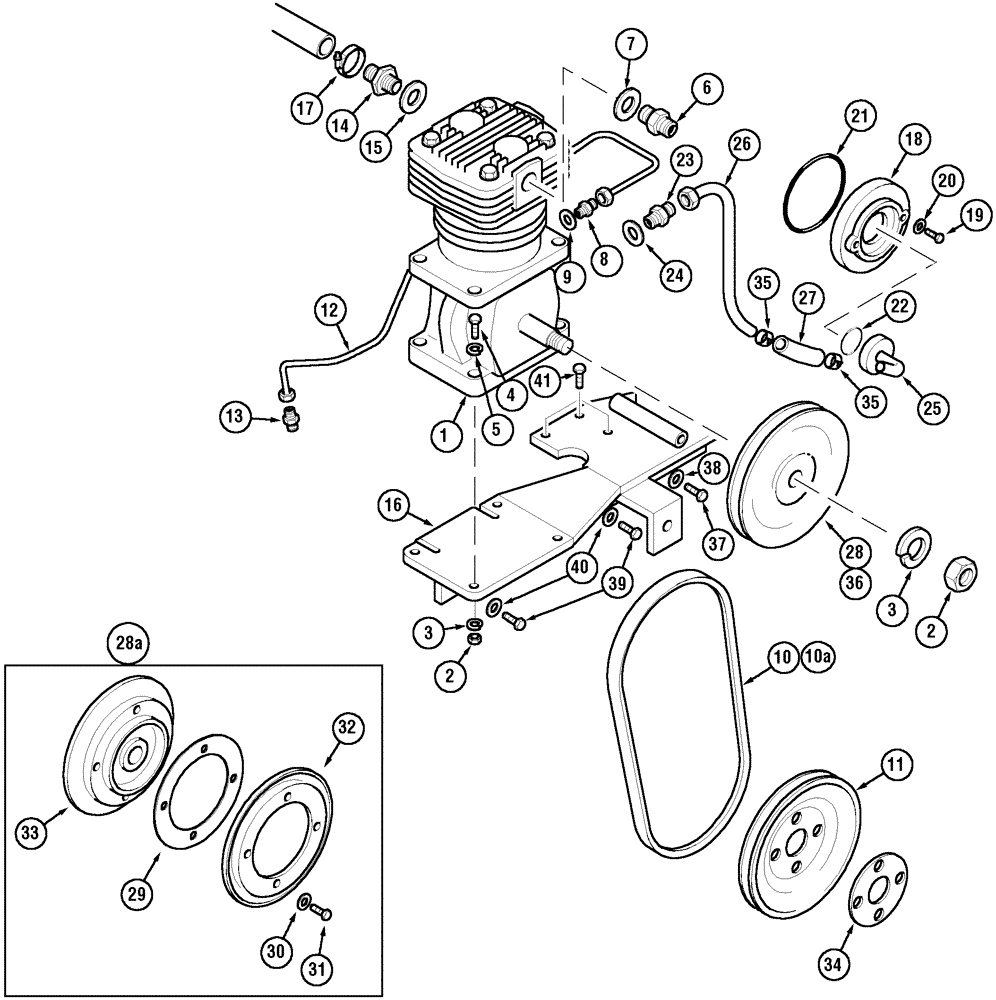

Схема запчастей Case IH MX150 - (07-11) - TRAILER BRAKE - PNEUMATIC COMPRESSOR MOUNTING (33) - BRAKES & CONTROLS
2
3
13
9
26
27
39
25
10
34
3
4
33
36
6
22
37
32
17
31
5
28
20
12
35
1
41
11
24
2
30
19
15
29
38
21
8
7
35
40
16
18
23
14

Артикул

Название

Примечание

Количество

Tract Air

1шт.

Europe Only

1шт.

376710A1

BRAKE PACKAGE

Compressor, With Air Conditioning, Consists Of 1 - 10,11 - 17

1шт.

376482A1

BRAKE PACKAGE

Compressor, Without Air Conditioning, Consists Of 1 - 9,10A,12 - 17

1шт.

1

228439A1

AIR COMPRESSOR

1шт.

2

933678R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

3

92-11075

LOCK WASHER,3/4"

1шт.

4

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

303672A1

FITTING

1шт.

7

303673A1

SEAL

1шт.

8

303674A1

ADAPTER

1шт.

9

303675A1

SEAL

1шт.

10

294462A1

V-BELT

With Air Conditioning

1шт.

10b

228316A1

BELT,12.70 mm W x 834.00 mm L

Without Air Conditioning

1шт.

11

315527A1

PULLEY

Air Brake, With Air Conditioning

1шт.

12

363838A1

HOSE ASSY.

600mm

1шт.

13

366319A1

FITTING

1шт.

14

897502H1

ADAPTER

1шт.

15

933608R1

SEALING RING,M26 x 31 x 2

1шт.

16

373726A1

SUPPORT ASSY.

1шт.

17

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

18

J918215

ADAPTER

Tachometer

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

20

T103887

WASHER

2шт.

21

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

2шт.

22

J915800

SEAL,Square, 1.68mm Thk x 25.12mm ID, -22

SEALRING

1шт.

23

905864R1

HYD CONNECTOR,M22 x 1.5 x M24 x 1.5

1шт.

24

E135040

SEALING WASHER,M22 x 27 x 1.5

1шт.

25

1533695C1

ELBOW

1шт.

26

1533254C1

ELBOW

Without Air Conditioning

1шт.

27

3230041R1

HOSE

With Air Conditioning

1шт.

28

A184536

PULLEY

With Air Conditioning

1шт.

28b

3228651R91

PULLEY ASSY.

Without Air Conditioning, Consists Of 29 - 33

1шт.

29

897499H1

SHIM,88mm ID x 117.9mm OD x 1mm Thk

6шт.

30

492-11031

LOCK WASHER,5/16"

4шт.

31

713237R1

BOLT

4шт.

32

897498H1

PULLEY

1шт.

33

3228652R1

PULLEY

1шт.

34

A189162

SPACER

With Air Conditioning

1шт.

35

1954736C1

HOSE CLAMP,#24

2шт.

36

A189155

PULLEY

Without Air Conditioning

1шт.

37

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

38

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

1шт.

39

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

40

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

41

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

Выбрано товаров: 47
