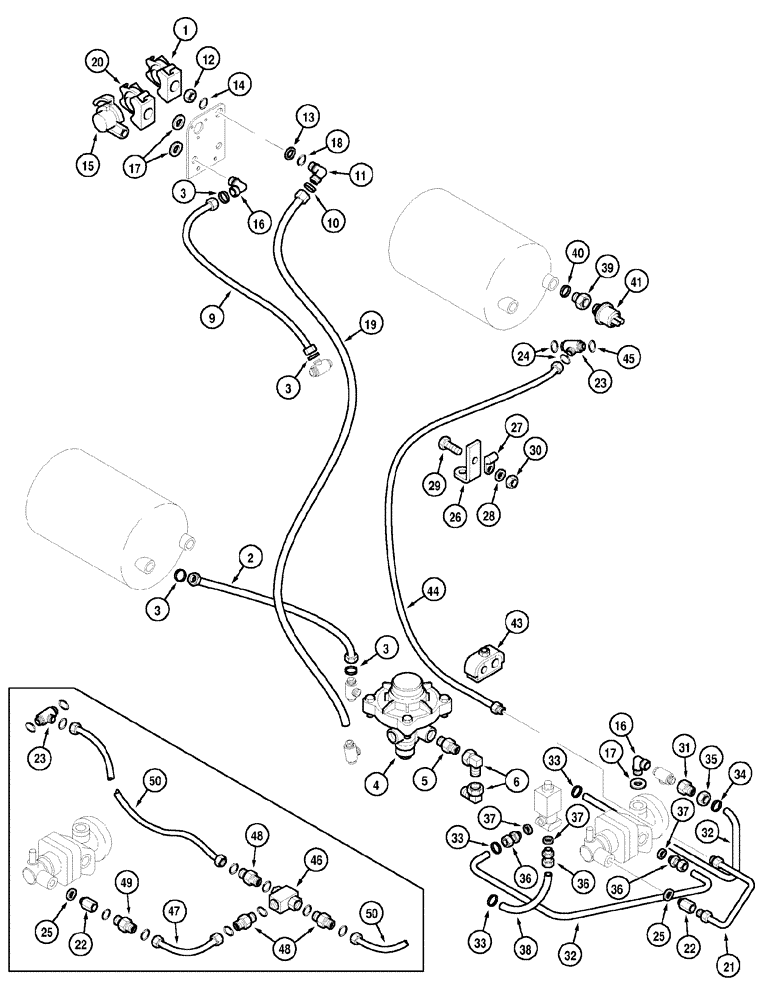

Запчасти Case IH MX150 (07-10) - TRAILER BRAKE - PNEUMATIC COUPLINGS AND PIPES (33) - BRAKES & CONTROLS

Europe Only

1шт.

1

3401424R1

COUPLING

Yellow

1шт.

2

253253A1

AIR HOSE,710.00 mm

710 mm

1шт.

3

3221778R1

BUSHING

6шт.

4

T101913

VALVE

1шт.

5

82934C1

FITTING

1шт.

6

3058712R91

90 ELBOW

2шт.

9

253253A1

AIR HOSE,710.00 mm

710 mm

1шт.

10

897558H2

BUSHING

2шт.

11

1533529C1

HYD CONNECTOR

1шт.

12

933882R1

NUT

1шт.

13

3076153R1

RING

1шт.

14

3076154R1

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

1шт.

15

3141447R1

BREAKER POINTS

Black

1шт.

16

3148876R1

ELBOW

1шт.

17

3148862R1

O-RING,16.1mm ID x 22mm OD x 2.6mm Thk

1шт.

18

3148863R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

19

253254A2

AIR HOSE,1530.00 mm

1530 mm

1шт.

20

4304140R91

BREAKER POINTS

Red

1шт.

21

246963A1

PIPE

1шт.

22

1533451C1

FITTING

1шт.

23

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 24

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

25

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.

26

224177A1

SUPPORT

1шт.

27

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

28

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6,6 x 12,5 x 2 mm

1шт.

29

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

30

825-1406

NUT,M6, Cl 8

1шт.

31

T104551

UNION

1шт.

32

1533434C1

HOSE

2шт.

33

1531863C1

SLEEVE,3.2mm ID x 5mm OD x 10mm L

5шт.

34

3138533R1

SLEEVE,Cutting Ring, 6mm ID x 9mm OD

1шт.

35

3138527R1

TUBE NUT,Coupling, M12 x 1.5

1шт.

36

1533078C1

UNION

3шт.

37

E135042

SEALING RING

SEALRING

3шт.

38

1533437C1

HOSE

1шт.

39

1533568C1

HYD CONNECTOR

1шт.

40

E135040

SEALING WASHER,M22 x 27 x 1.5

1шт.

40

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

41

284798A1

SENDER UNIT

1шт.

41

308497A1

SENDER UNIT

14 mm

1шт.

43

1533586C1

CLAMP

1шт.

44

323237A1

HOSE

1300 mm

1шт.

45

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Dual Pilot

1шт.

46

391737A1

TEE

1шт.

47

391738A1

AIR FLEXIBLE

1шт.

48

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

3шт.

49

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

50

323237A1

HOSE

1300 mm

2шт.
