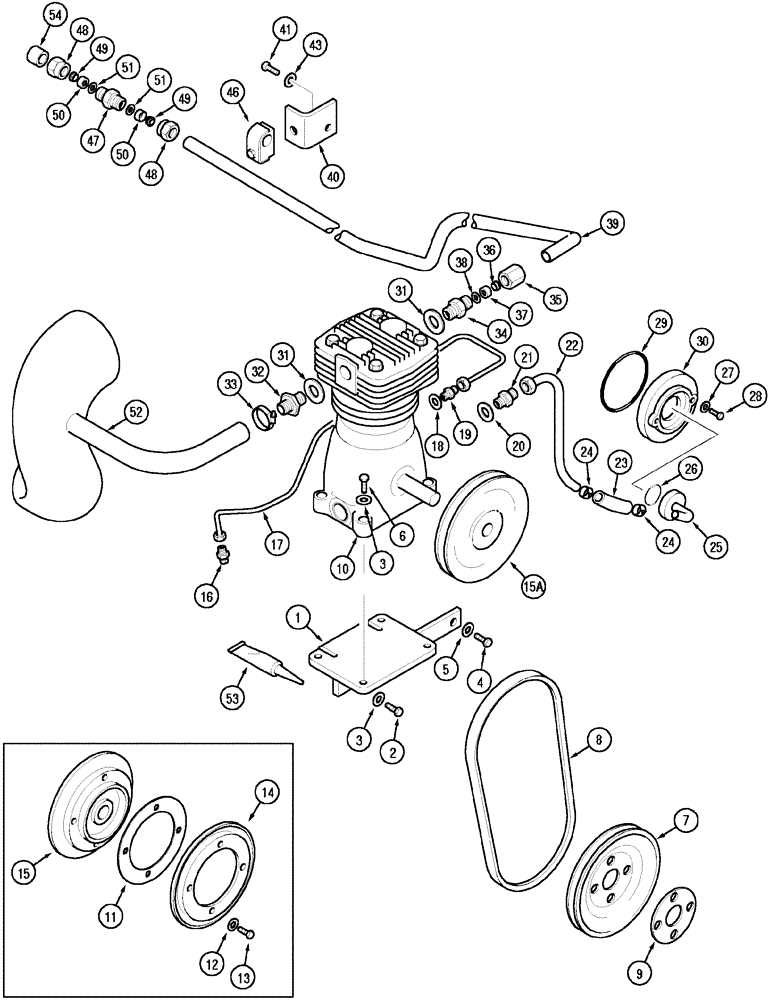

Запчасти Case IH MX150 (07-07) - TRAILER BRAKE - PNEUMATIC COMPRESSOR MOUNTING (33) - BRAKES & CONTROLS

Europe Only

1шт.

1

259648A1

SUPPORT ASSY.

1шт.

2

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

3

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

6шт.

4

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

5

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

1шт.

7

A184596

PULLEY

Without Air Conditioning

1шт.

7

A184573

PULLEY

With Air Conditioning

1шт.

8

255402A1

BELT,12.70 mm W x 808.00 mm L

1шт.

9

A189162

SPACER

Without Air Conditioning

1шт.

10

228439A1

AIR COMPRESSOR

1шт.

3228651R91

PULLEY ASSY.

Consists Of 11 - 15

1шт.

11

897499H1

SHIM,88mm ID x 117.9mm OD x 1mm Thk

6шт.

12

492-11031

LOCK WASHER,5/16"

4шт.

13

713237R1

BOLT

4шт.

14

897498H1

PULLEY

1шт.

15

3228652R1

PULLEY

Order 3228651R91

1шт.

15b

315527A1

PULLEY

1шт.

16

T103888

HYD CONNECTOR

Serial No. - JJE0982166

1шт.

16b

366013A1

FITTING

Serial No. JJE0982167 -

1шт.

17b

363838A1

HOSE ASSY.

600mm, Use With 16A,19A

1шт.

6

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.

18

718743R1

SEALING RING,M10 x 16 x 1

1шт.

19

3216696R1

HYD CONNECTOR,M10 x 1

Serial No. - JJE0982166

1шт.

19b

366319A1

FITTING

Serial No. JJE0982167 -

1шт.

20

E135040

SEALING WASHER,M22 x 27 x 1.5

1шт.

20

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

21

905864R1

HYD CONNECTOR,M22 x 1.5 x M24 x 1.5

1шт.

22

1533254C1

ELBOW

1шт.

23

3230041R1

HOSE

1шт.

24

1954736C1

HOSE CLAMP,#24

2шт.

25

1533695C1

ELBOW

1шт.

26

J915800

SEAL,Square, 1.68mm Thk x 25.12mm ID, -22

SEALRING

1шт.

27

T103887

WASHER

2шт.

28

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

29

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

30

J918215

ADAPTER

1шт.

31

933608R1

SEALING RING,M26 x 31 x 2

2шт.

32

897502H1

ADAPTER

1шт.

33

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

34

3230401R91

UNION

Includes 35 - 38

1шт.

35

3215240R1

TUBE NUT,Coupling, M22 x 1.5

1шт.

36

3143334R1

OLIVE

1шт.

37

3215241R1

THRUST RING

1шт.

38

3402992R1

SEALING RING

SEALRING

1шт.

39

227935A5

HYD TUBE

1шт.

40

228199A3

BRACKET, SUPPORTING

1шт.

41

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

46

291404A1

FIXING BRACKET

1шт.

47

897787H2

UNION

Includes 48 - 51

1шт.

48

3215240R1

TUBE NUT,Coupling, M22 x 1.5

2шт.

49

3143334R1

OLIVE

2шт.

50

3215241R1

THRUST RING

2шт.

51

3402992R1

SEALING RING

SEALRING

2шт.

52

227993A2

LARGE HOSE

HOSE,LARGE

1шт.

53

345-75

SEALANT

1шт.

54

897558H2

BUSHING

1шт.
