Запчасти Case IH MX150 (07-06) - HYDRAULIC TRAILER BRAKE CIRCUIT (33) - BRAKES & CONTROLS

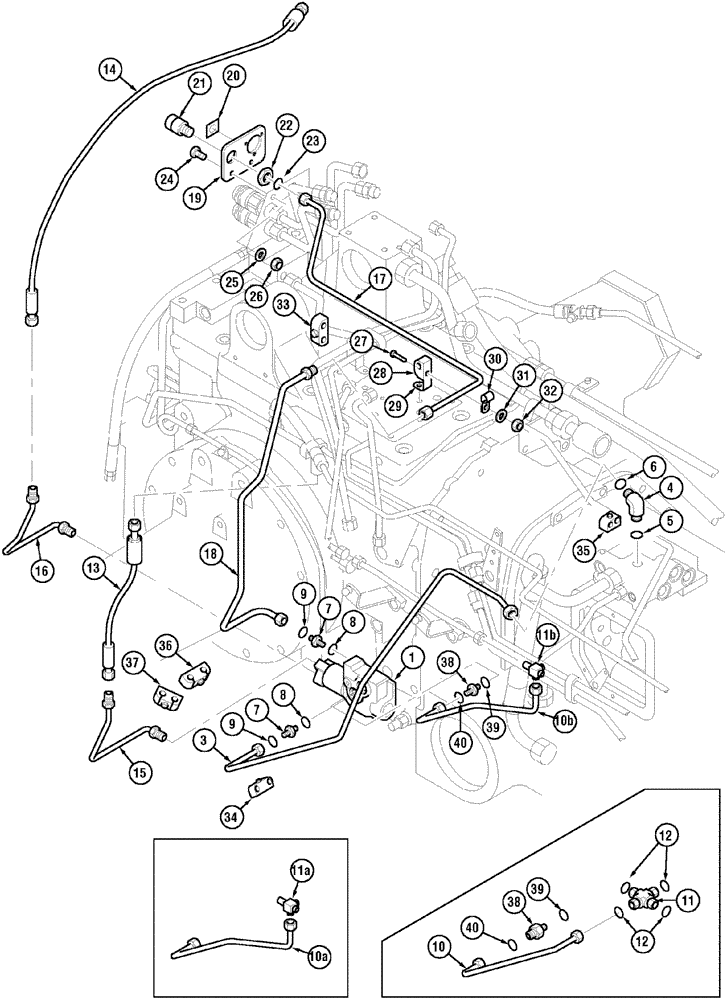

Схема запчастей Case IH MX150 - (07-06) - HYDRAULIC TRAILER BRAKE CIRCUIT (33) - BRAKES & CONTROLS
26
40
12
15
38
6
36
12
23
10
16
27
29
14
17
19
24
32
21
9
20
1
37
11b
38
31
9
13
22
10b
34
8
25
40
18
35
3
5
4
11
28
8
39
7
30
33
7
39

Артикул

Название

Примечание

Количество

Europe Only

1шт.

392825A1

BRAKE PACKAGE

Consists Of 1 - 38

1шт.

1

292952A2

VALVE

1шт.

3

378497A1

HOSE,9.52 mm ID x 1000.00 mm

Supply

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 8,9

2шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

257486A1

HYD TUBE,10 mm OD, 409, 73 mm Length

Serial No. - JJE0980139, Use With 11

1шт.

10b

316107A1

HYD TUBE

Serial No. JJE0980140 -, Use With 11A

1шт.

10c

341335A1

PIPE

Use With 11B

1шт.

11

701-921

4 WAY CONNECTION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Includes 12, Serial No. - JJE0980139, Use With 10

1шт.

11b

283227A1

FITTING

Serial No. JJE0980140 -, Use With 10A

1шт.

11c

338812A1

TEE

Use With 10B

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

13

257489A2

HYDRAULIC HOSE

400mm

1шт.

14

257490A2

HYDRAULIC HOSE

1130mm

1шт.

15

257488A1

HYD TUBE,8 mm OD, 192, 162 mm Length

1шт.

16

279522A1

HYD TUBE,8 mm OD, 189, 155 mm Length

1шт.

17

257487A1

HYD TUBE,12 mm OD, 624, 263 mm Length

Serial No. - JJE0980139

1шт.

17

316498A2

HYD TUBE

Serial No. JJE0980140 -

1шт.

18

281455A1

BRAKE LINE

1шт.

19

257491A1

SUPPORT

1шт.

20

1533489C1

DECAL

1шт.

21

225077A1

COUPLING, BREAK AWAY

1шт.

22

701-903

NUT,13/16" - 16

Includes 23

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

829-1308

NUT,M8, Cl 10

2шт.

27

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

28

T101170

CLAMP

1шт.

29

224175A1

SUPPORT

1шт.

30

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

31

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

6,6 x 12,5 x 2 mm

1шт.

32

825-1406

NUT,M6, Cl 8

1шт.

33

254699A1

FIXING BRACKET

1шт.

34

252872A1

FIXING BRACKET

1шт.

35

256553A1

CLAMP

1шт.

35

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in, Not Illustrated

2шт.

36

279724A1

CLAMP

1шт.

37

277391A1

CLAMP

1шт.

38

223971A1

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Includes 39,40

1шт.

39

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
