Запчасти Case IH MX150 (07-05) - BRAKE SYSTEM (33) - BRAKES & CONTROLS

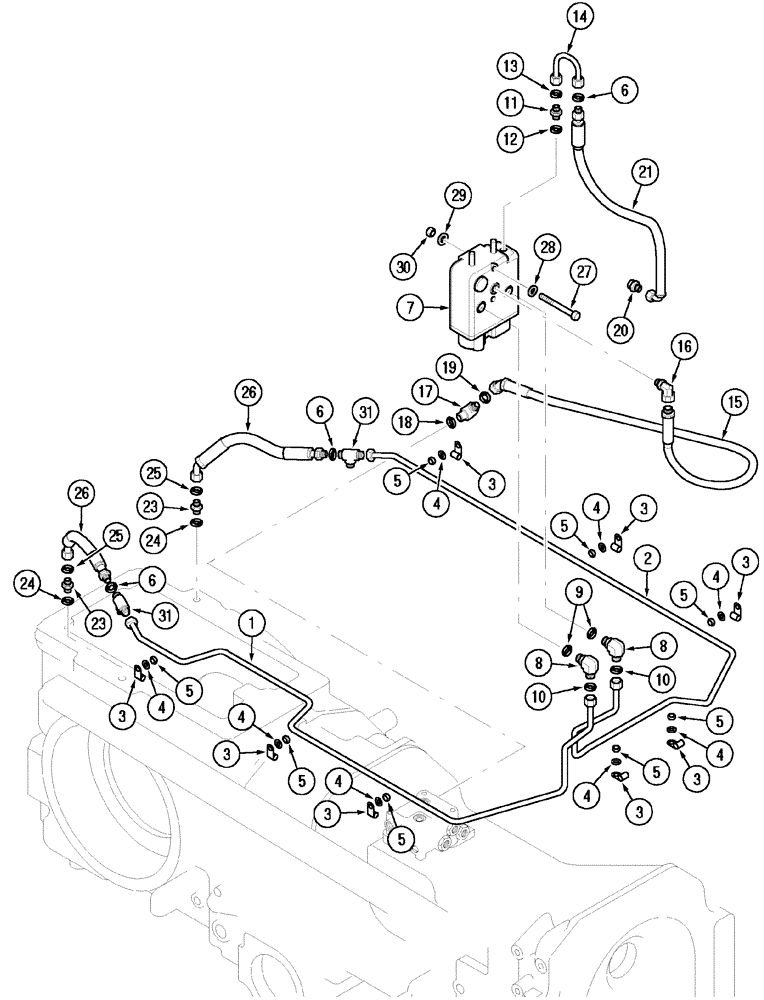

Схема запчастей Case IH MX150 - (07-05) - BRAKE SYSTEM (33) - BRAKES & CONTROLS
5
9
4
3
24
11
23
8
14
27
4
28
3
7
10
10
4
29
2
24
18
4
4
16
5
4
5
25
26
6
15
1
3
31
3
5
4
5
12
30
17
5
19
5
21
3
3
4
3
8
3
6
5
26
25
13
31
20
6
23

Артикул

Название

Примечание

Количество

1

256029A1

HYD TUBE

Right

1шт.

2

256030A2

TUBE

Left

1шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

8шт.

4

892-11008

LOCK WASHER,8mm ID

8шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

175271A1

VALVE, BRAKE

1шт.

8

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 9, 10

2шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 12, 13

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

1289242C1

HYD TUBE,0.375" OD, 57.15, 70 mm Length

Return

1шт.

15

308717A1

HOSE,9.52 mm ID x 1180.00 mm

Supply

1шт.

16

177154A1

CHECK VALVE

Inlet

1шт.

17

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 18,19

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

278817A1

FITTING

1шт.

21

278819A1

HOSE

650 mm, Return

1шт.

23

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 24,25

2шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

256031A3

HYDRAULIC HOSE

395 mm

2шт.

27

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

M10 x 95

2шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

29

892-11010

LOCK WASHER,M10

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

With Trailer Brake, Europe Only

2шт.

Выбрано товаров: 30
