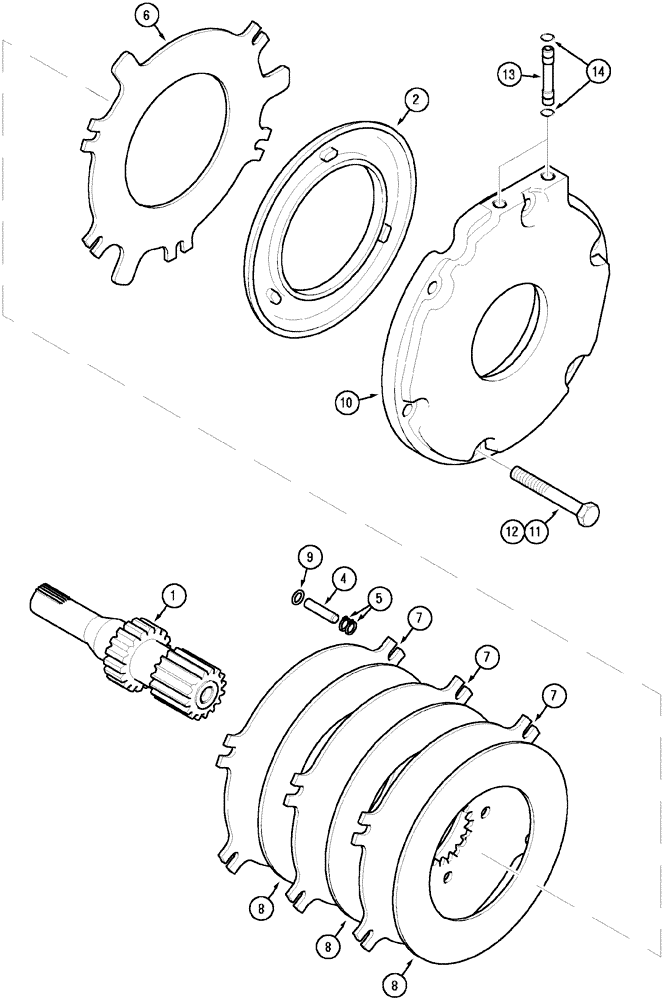

Запчасти Case IH MX150 (07-03) - BRAKES (33) - BRAKES & CONTROLS

1

235311A1

SHAFT

2шт.

2

1997422C1

PISTON

Brake, Diff Lock

2шт.

1349198C1

ADJUSTER

Brake, Includes 4,5

6шт.

4

37-1828

DOWEL,1/2" x 1 3/4"

1шт.

5

100-1450

SNAP RING,#50, Ext

1шт.

6

1981187C1

PLATE,192mm ID x 317.29mm OD x 2.74mm Thk

Adjusting

2шт.

7

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

Separator

6шт.

8

120488C2

BRAKE PLATE

6шт.

9

1342928C1

BELLEVILLE WASHER

12шт.

10

1342723C2

COVER

2шт.

11

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

M16 x 110, 8.8

6шт.

12

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

6шт.

13

247304A2

TUBE

Oil Inlet

4шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

8шт.
