Запчасти Case IH MX150 (08-21) - FRONT AXLE, ADJUSTABLE (25) - FRONT AXLE SYSTEM

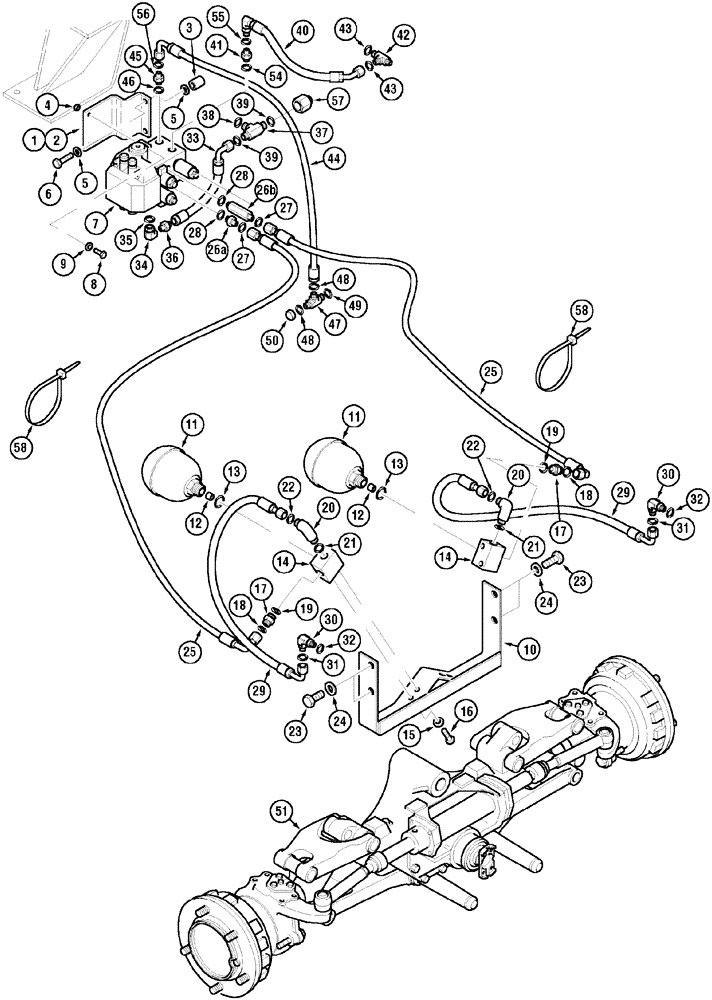

Схема запчастей Case IH MX150 - (08-21) - FRONT AXLE, ADJUSTABLE (25) - FRONT AXLE SYSTEM
37
20
21
21
46
49
8
23
9
58
15
27
5
22
7
28
41
31
10
1
17
13
42
31
26b
32
19
14
17
30
51
20
11
54
12
25
38
25
29
35
24
28
57
12
44
19
13
24
22
36
50
32
5
47
55
16
48
2
39
11
48
43
23
4
29
3
14
34
33
27
6
30
58
40
45
18
43
39
56
18

Артикул

Название

Примечание

Количество

Supply And Return

1шт.

1

336423A1

SUPPORT

Includes 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket

1шт.

3

NSS

NOT SOLD SEPARAT

Spacer

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

2шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

6

827-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

1шт.

7

337023A3

VALVE

See Page(s) 8-20

1шт.

8

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

2шт.

8

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

9

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

327652A2

SUPPORT

1шт.

11

337042A1

ACCUMULATOR

Includes 12

2шт.

12

338544A1

PLUG

1шт.

13

340493A1

SEAL

2шт.

14

327649A1

BLOCK ASSY.

Mounting

2шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

16

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

17

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 18,19

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

700-381

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 21,22

2шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

24

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

25

358627A1

HOSE,12.70 mm ID x 3065.00 mm, SAE J516

2шт.

26b

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 27, 28

1шт.

26c

355713A1

UNION

Includes 27,28

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

29

357865A1

HOSE,12.70 mm ID x 590.00 mm, SAE J516

Right, MX150

1шт.

29

357863A1

HOSE,12.70 mm ID x 590.00 mm, SAE J516

Left, MX150

1шт.

29

368201A1

HOSE,12.70 mm ID x 740.00 mm

Right, MX170

1шт.

29

369202A1

FRAME

Left, MX170

1шт.

30

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 31, 32

2шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

33

353912A2

HOSE ASSY.

1шт.

34

375914A1

ELBOW

M18 x 1/2 in, Includes 35

1шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

37

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Includes 38,39

1шт.

37

700-403

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Includes 38,39

1шт.

38

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

40

353913A3

HOSE ASSY.

1шт.

41

355944A1

VALVE, CHECK

Load Control, Includes 54,55

1шт.

42

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 43

1шт.

43

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

44

353914A2

HOSE ASSY.

1шт.

45

338242A1

FITTING

Includes 46

1шт.

46

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

47

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 48,49

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

50

701-905

CAP,13/16" - 16

1шт.

51

327127A1

4WD AXLE ASSY

Illustrated, See Page(s) 5-19, MX150

1шт.

51

364850A1

4WD AXLE ASSY

See Page(s) 5-21, MX170

1шт.

54

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

56

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

57

701-906

CAP,1" - 14

16 mm

1шт.

58

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in

2шт.
