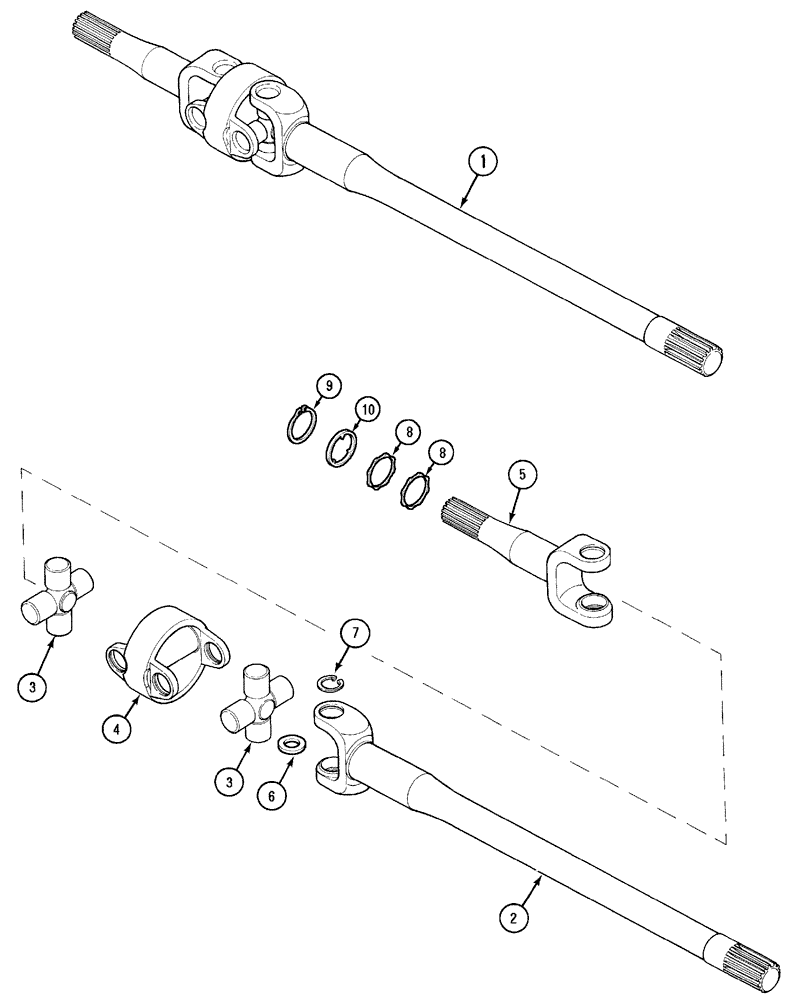

Запчасти Case IH MX150 (05-28) - DRIVE SHAFT (25) - FRONT AXLE SYSTEM

4WD

1шт.

319762A1

PROPELLER SHAFT

Consists Of 1,8,9,10

1шт.

319763A1

SET OF PARTS

Consists Of 5,8,9,10

1шт.

1

313000A1

DRIVE SHAFT

Consists Of 2 - 7

2шт.

2

253072A1

SHAFT ASSY.

Differential

1шт.

If Longer is Required, MX150/170 Would Require Shaft 313000A1 Contained in Kit 319762A1. Length 743 mm (29.25 in) From Center Line of Hole at Yoke End of Spline.

1шт.

Length 715 mm (28.17 in) From Center Line of Hole at Yoke End of Spline.

1шт.

3

253073A1

U-JOINT SPIDER

2шт.

4

253074A1

BODY

1шт.

5

319766A1

HALF SHAFT

Order 319763A1

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

8шт.

7

311447A1

RING, SNAP

RING SNAP

8шт.

8

300174A1

THRUST WASHER

2шт.

9

800-5145

SNAP RING,M45, Ext

1шт.

10

300175A2

THRUST WASHER

1шт.
