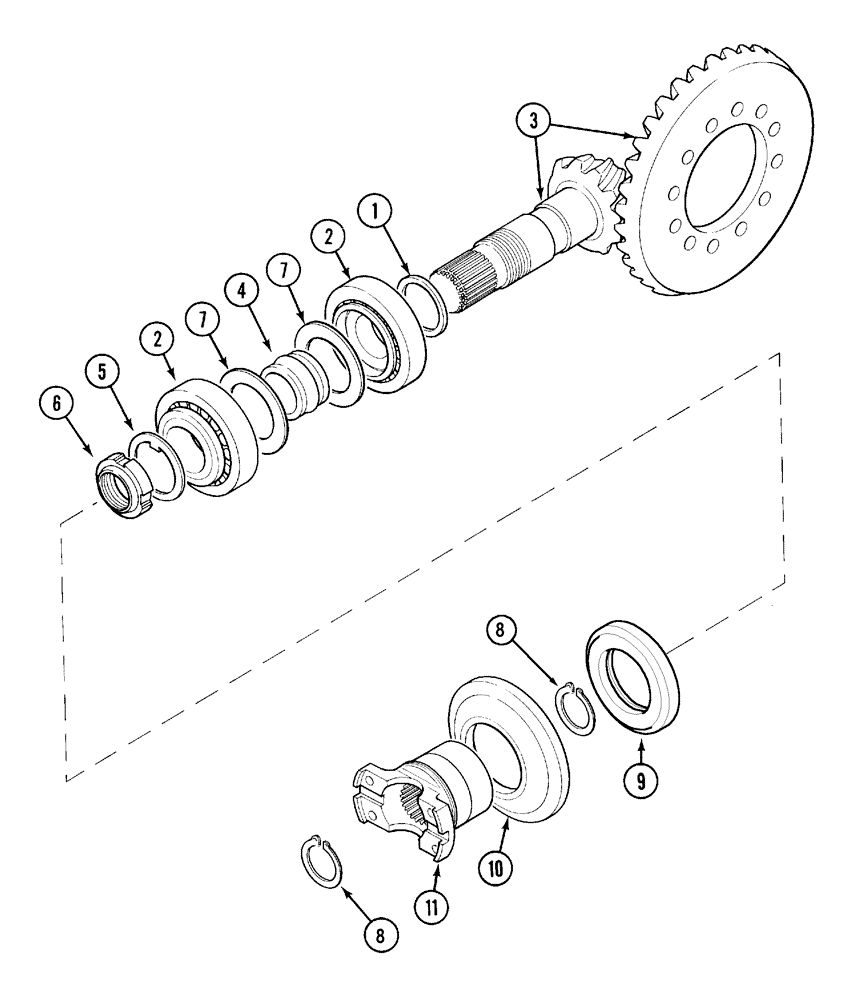

Запчасти Case IH MX150 (05-25) - DRIVE BEVEL GEAR (25) - FRONT AXLE SYSTEM

4WD

1шт.

1

190506A1

SHIM,2.5mm Thk

1шт.

1

190508A1

SHIM,2.6mm Thk

1шт.

1

190509A1

SHIM,2.7mm Thk

1шт.

1

190510A1

SHIM,2.8mm Thk

1шт.

1

190511A1

SHIM,2.9mm Thk

1шт.

1

190512A1

SHIM,3.0mm Thk

1шт.

1

190513A1

SHIM,3.1mm Thk

1шт.

1

190514A1

SHIM,3.2mm Thk

1шт.

1

190515A1

SHIM,3.3mm Thk

1шт.

1

190516A1

SHIM,3.4mm Thk

1шт.

2

K395090

TAPERED BEARING,40mm ID x 90mm OD

Small

1шт.

2

X1139855

BEARING ASSY,45mm ID x 95mm OD x 29mm W

Large

1шт.

3

247559A1

GEAR, BEVEL

BEVEL GEAR , 10T/31T, Axle 20.29, Includes 4,5,6,7

1шт.

4

175957A1

SPACER

1шт.

5

K261065

LOCK WASHER

1шт.

6

K261014

RING NUT,M40 x 1.5

1шт.

7

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

8

800-1134

SNAP RING,M34, Ext

2шт.

9

247534A1

SEAL,35mm ID x 98mm OD x 27mm Thk

1шт.

10

81874C1

COVER

1шт.

11

257247A1

FLANGE

1шт.
