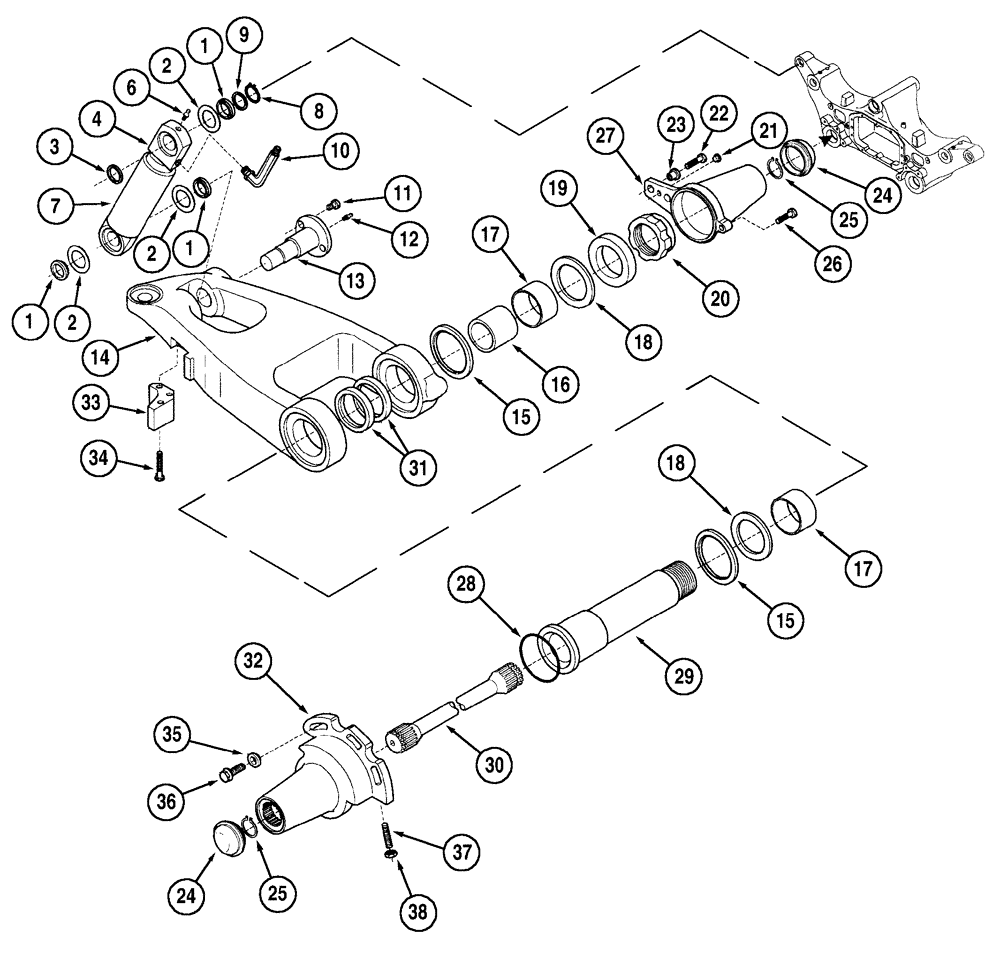

Запчасти Case IH MX150 (05-19) - FRONT AXLE SUSPENSION (25) - FRONT AXLE SYSTEM

Lower Arm

1шт.

Axle 20:29S

1шт.

Europe Only

1шт.

MX170

1шт.

1

406735A1

SPACER

6шт.

2

406736A1

BELLEVILLE WASHER

6шт.

3

406737A1

SPACER

2шт.

4

406738A1

PISTON ROD

2шт.

5

406739A1

OIL SEAL

Not Illustrated

2шт.

6

406740A1

NIPPLE, LUBE

NIPPLE

2шт.

7

406741A1

CYLINDER ASSY.

Includes 4 - 6

2шт.

8

800-1130

SNAP RING,M30, Ext

2шт.

9

326749A1

RING

2шт.

10

406742A1

ELBOW

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

13

406743A1

HEADED PIN

2шт.

14

406744A1

ARM ASSY.

Left, Includes 17, Illustrated

1шт.

14

406745A1

ARM ASSY.

Right, Includes 17

1шт.

15

406746A1

SEALING RING

4шт.

16

406748A1

BUSHING

2шт.

17

406749A1

BUSHING

2шт.

18

406750A1

THRUST WASHER

4шт.

19

406751A1

THRUST WASHER

2шт.

20

406752A1

RING NUT

M65 x 1.5

2шт.

21

340452A1

PLUG

2шт.

22

116425A1

BOLT

M10 x 45

4шт.

23

116426A1

BUSHING

4шт.

24

406754A1

PLUG

4шт.

25

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

4шт.

26

406755A1

BOLT,M10 x 35mm

M10 x 35

2шт.

27

406756A1

FLANGE

2шт.

28

340411A1

O-RING

2шт.

29

406757A1

SHOULDERED SHAFT

2шт.

30

340462A1

TORSION BAR

Left, Illustrated

1шт.

30

340463A1

TORSION BAR

Right

1шт.

31

406758A1

SEALING RING

4шт.

32

406759A1

FLANGE

Left, Illustrated

1шт.

32

406760A1

FLANGE

Right

1шт.

33

406761A1

STOP

2шт.

34

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

6шт.

35

340464A1

BUSHING

6шт.

36

5194169

BOLT,Hex Flg, M12 x 33, 12.9

6шт.

37

406763A1

STUD

M10 x 60

2шт.

38

825-1410

NUT,M10, Cl 8

2шт.
