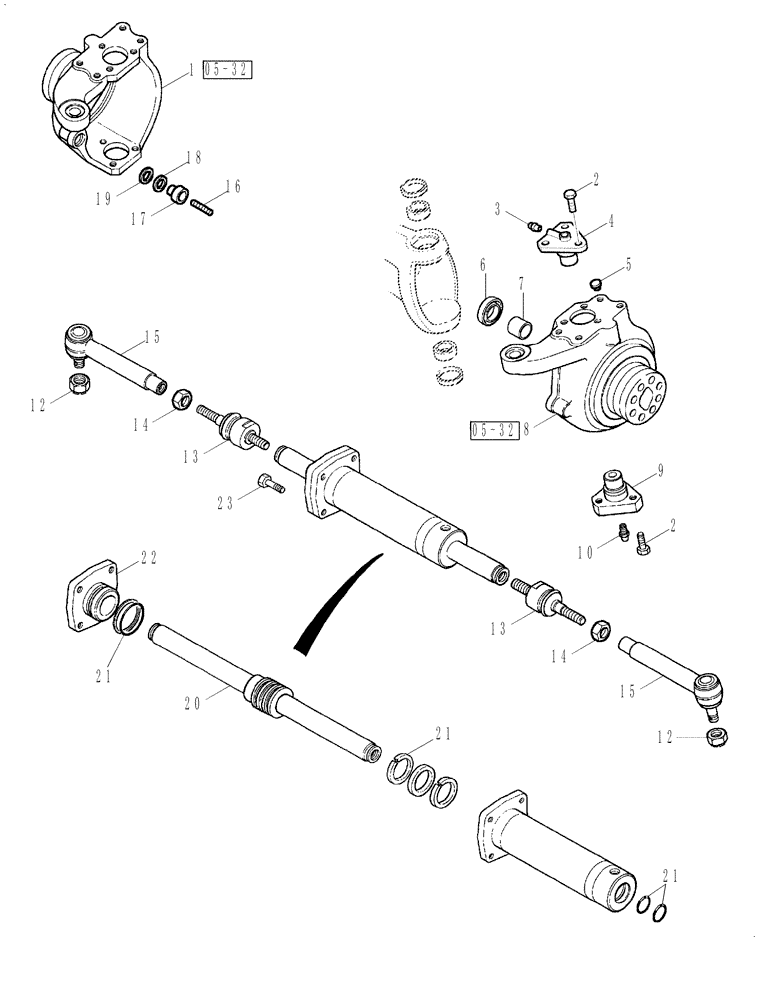

Запчасти Case IH MX150 (05-14) - STEERING CYLINDER AND SWIVEL HOUSINGS (25) - FRONT AXLE SYSTEM

-

4WD, 1 And 8 Have Flat Mounts For Ball Joints

1шт.

1

296425A1

HOUSING

Left

1шт.

2

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

M14 x 35

12шт.

3

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

4

247517A1

PIVOT

Upper

2шт.

5

247518A1

PLUG

8шт.

6

300167A1

OIL SEAL

2шт.

7

300166A1

BUSHING

2шт.

8

366816A1

HOUSING

Right

1шт.

9

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

Lower

2шт.

10

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.

311445A1

ARM ASSY.

Consists Of 12 - 15

2шт.

12

107070A1

LOCK NUT

M20

1шт.

13

311446A1

BALL JOINT

1шт.

14

126143A1

NUT

M24

1шт.

15

247523A1

BALL JOINT

1шт.

16

247524A1

SHAFT

2шт.

17

247525A1

RING NUT

2шт.

18

247526A1

CIRCLIP,16.5mm ID x 29mm OD

2шт.

19

247527A1

SPACER

2шт.

300173A1

STEERING CYLINDER

Includes 20 - 23

2шт.

20

311448A1

PISTON ROD

38mm OD, 702mm L, 138mm Cylinder stroke 1/2

1шт.

21

300161A1

SEAL KIT

1шт.

22

300162A1

JACK HEAD

1шт.

23

114296A1

BOLT

M12 x 45

4шт.
