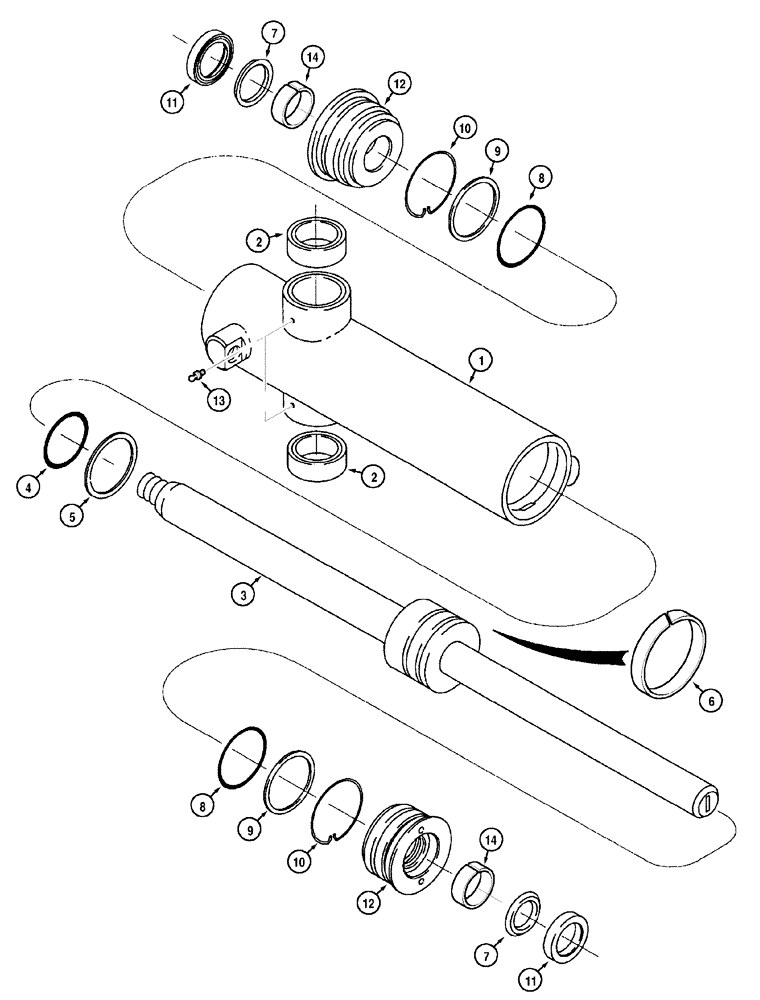

Запчасти Case IH MX135 (05-06) - 2WD STEERING CYLINDER (05) - STEERING

93194C8

STEERING CYLINDER

67 ID x 246 mm strk, Consists of 1 - 12,14

1шт.

93194C9R

REMAN-HYD CYLINDER

MX100, MX110, MX120, MX135, All CASE IH MAXXUM DIESEL TRACTOR, 67 ID x 246 mm strk, Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

Includes 2

1шт.

2

1255304C1

BUSHING

2шт.

3

1255306C5

PISTON ROD

1шт.

80448C3

SEAL KIT

Consists of 4 - 11,14

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

2шт.

8

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

9

1255311C1

WASHER

2шт.

10

1255312C1

RETAINING WIRE

205 mm (8-1/16 in)

2шт.

11

D95141

WIPER SEAL

2шт.

12

1255310C1

HEAD (CYLINDER)

2шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

14

243092A1

WEAR RING

2шт.
