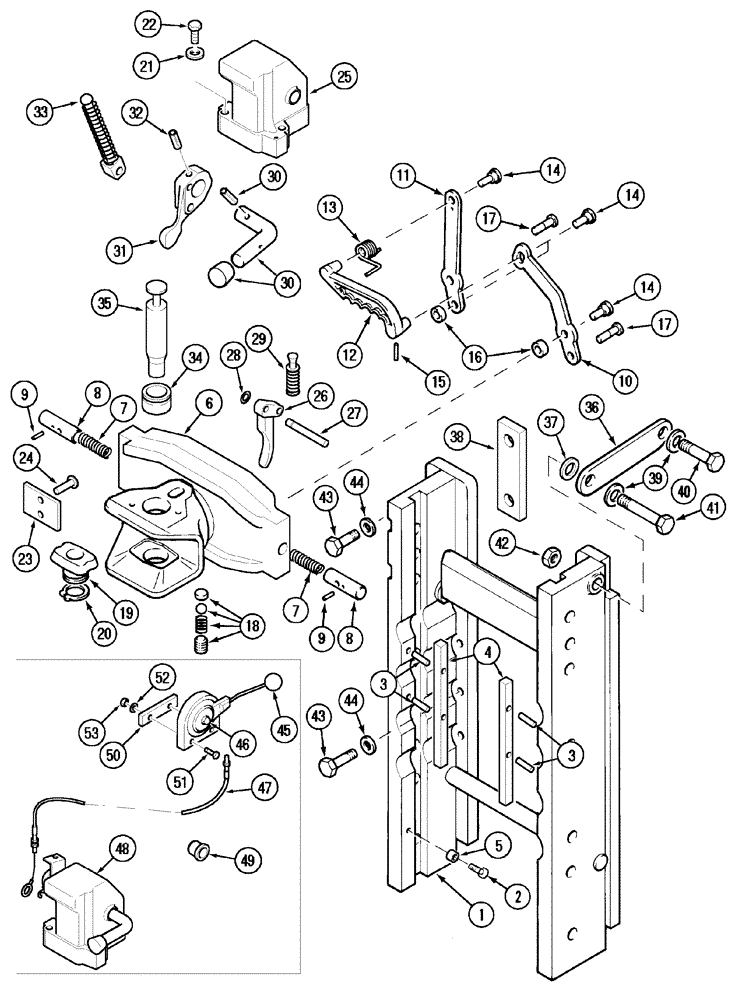

Запчасти Case IH MX135 (09-75) - TRAILER HITCH WITH AUTOMATIC CLEVIS (09) - CHASSIS/ATTACHMENTS

Europe Only

1шт.

315997A2

HITCH ASSY

Long, Consists Of 1A,2 - 36A,37, Serial No. JJE0957960, Build Date 10-9-1998

1шт.

315999A1

HITCH ASSY

Short, Consists Of 1B - 35,36B - 38, Serial No. JJE0958827, Build Date 10-9-1998

1шт.

1b

279630A1

SUPPORT ASSY.

Includes 2 - 5

1шт.

1c

279631A1

SUPPORT ASSY.

Includes 2 - 4

1шт.

2

864-12020

HEX SOC SCREW,M12 x 20mm, Cl 8.8

1шт.

3

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

4шт.

4

259247A1

SUPPORT ASSY.

2шт.

5

275595A1

SPACER

1шт.

314408A1

TRAILER HITCH

32 mm, Consists Of 6 - 17,313250A1,310187A1

1шт.

314410A2

TRAILER HITCH

Consists Of 6 - 17,313251A1,310188A1

1шт.

6

NSS

NOT SOLD SEPARAT

Support Assy

1шт.

7

141013A1

SPRING

2шт.

8

141014A1

PIN

2шт.

9

738-1516

LOCK PIN,M5 x 16, Slotted

2шт.

141015A1

HANDLE

Consists Of 10 - 17

1шт.

10

141016A1

BAR

1шт.

11

141017A1

BAR

1шт.

12

141018A1

LEVER

1шт.

13

141019A1

SPRING

1шт.

14

141020A1

HEADED PIN

4шт.

15

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

16

141021A1

SPACER,10.5mm ID x 18mm OD x 8mm L

2шт.

17

141022A1

HEADED PIN

2шт.

NSS

NOT SOLD SEPARAT

Clevis, Consists Of 18,19A,20 - 24,310187A1

1шт.

NSS

NOT SOLD SEPARAT

Clevis, Consists Of 18,19B,20 - 24,310188A1

1шт.

18

177336A1

BRAKE ASSY.

1шт.

19b

310109A1

BUSHING,17mm ID x 85mm OD x 44mm L

32 mm

1шт.

19c

310112A1

BUSHING

37 mm

1шт.

20

800-5140

SNAP RING,M40, Ext, Hvy

(2.5mm Thk)

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

22

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

23

310104A1

DECAL

1шт.

24

906028R1

GROOVED PIN

2шт.

310187A2

LATCH ASSY.

Consists Of 25 - 34A,35A

1шт.

310188A2

LATCH ASSY.

Consists Of 25 - 33,34B,35B

1шт.

25

NSS

NOT SOLD SEPARAT

Housing

1шт.

26

310130A1

LEVER

Includes 27,28

1шт.

27

310135A1

SPLIT PIN/SAFETY PIN

1шт.

28

800-416

CIRCLIP,M6, Ext

1шт.

29

310139A1

PIN

1шт.

30

310147A1

HANDLE

1шт.

31

310175A1

LEVER

Includes 32

1шт.

32

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

33

310181A1

CLEVIS PIN

1шт.

34b

310183A1

BUSHING

32 mm

1шт.

34c

310184A1

BUSHING

38 mm

1шт.

35b

310185A1

HITCH PIN,32mm OD x 143mm L

32 mm

1шт.

35c

310186A1

HITCH PIN,37mm OD x 152mm L

38 mm

1шт.

36b

175151A1

LARGE PLATE

PLATE, LARGE , 241 mm

1шт.

36c

175105A1

LARGE PLATE

PLATE, LARGE , 255 mm

1шт.

37

175152A1

SPACER

1шт.

38

185169A1

SPACER

1шт.

39

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

40

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

41

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

42

829-1420

NUT,M20, Cl 10

1шт.

43

962-16050

HEX SOC SCREW,M16 x 50mm, Cl 10.9

10шт.

44

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

334052A1

LEVER ASSY.

Consists Of 45 - 47

1шт.

45

3404892R1

BALL KNOB

1шт.

46

3221725R1

CAP

6 mm

1шт.

47

334056A1

CABLE

1шт.

48

334059A1

LEVER ASSY.

1шт.

49

182047A1

GROMMET

1шт.

50

334053A1

LARGE PLATE

PLATE, LARGE

2шт.

51

540-713

SCREW,Cross Pan Hd, M6 x 35

Cl 4.8

2шт.

52

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

53

832-10406

NUT,M6 x 1, Cl 8

2шт.
