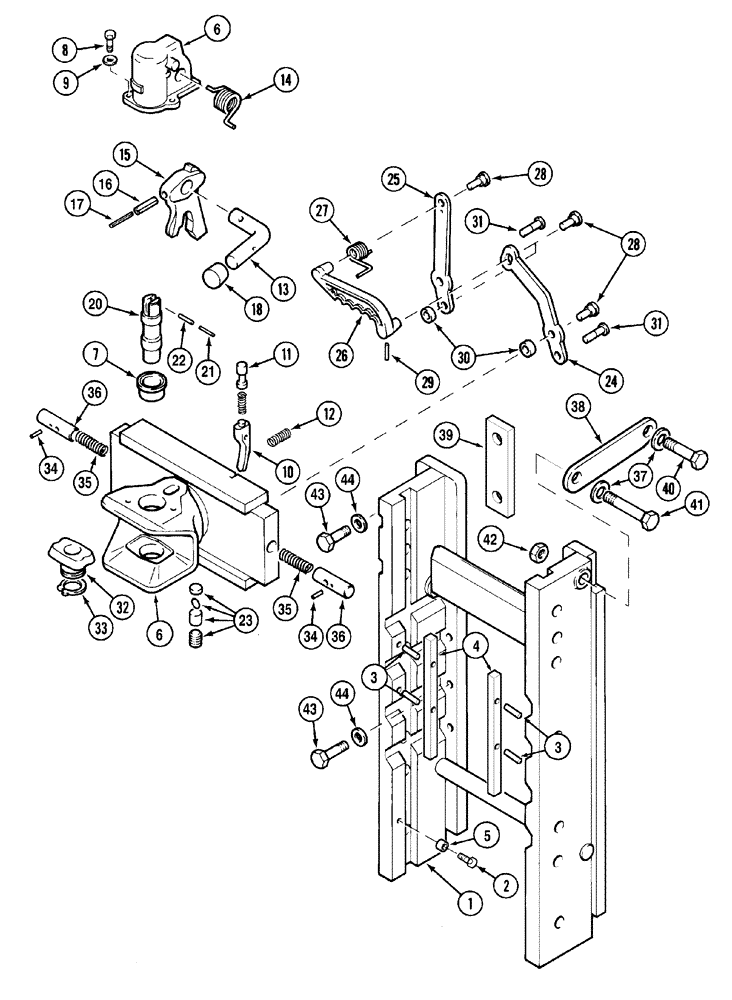

Запчасти Case IH MX135 (09-74) - TRAILER HITCH WITH AUTOMATIC CLEVIS (09) - CHASSIS/ATTACHMENTS

Europe Only

1шт.

279629A1

HITCH ASSY

Consists Of 1A - 38A, Serial No. JJE0957959, Build Date 10-9-1998

1шт.

279628A1

HITCH ASSY

Version With Automatic Hitch, Consists Of 1B - 38B,39, Serial No. JJE0958826, Build Date 1-11-1999

1шт.

1b

279630A1

SUPPORT ASSY.

Includes 2 - 5

1шт.

1c

279631A1

SUPPORT ASSY.

Includes 2 - 4

1шт.

2

864-12020

HEX SOC SCREW,M12 x 20mm, Cl 8.8

1шт.

3

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

4шт.

4

259247A1

SUPPORT ASSY.

2шт.

5

275595A1

SPACER

1шт.

275586A1

TRAILER HITCH

Consists Of 6 - 36

1шт.

6

141025A1

LATCH ASSY.

Includes 7 - 22

1шт.

7

141028A1

BUSHING,32mm ID x 48mm OD x 28mm L

32 mm

1шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

275591A1

LEVER ASSY.

Includes 11,12

1шт.

11

1530932C1

CLEVIS PIN

1шт.

12

1348121C1

SPRING

1шт.

141029A1

HANDLE

Consists Of 13 - 18

1шт.

13

141030A1

HANDLE,18mm OD

1шт.

14

1348110C2

SPRING

1шт.

15

141031A1

CAM

1шт.

16

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

17

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

18

1348109C1

COVER

1шт.

20

141026A1

PIN,32mm OD x 126mm L

32 mm, Includes 21,22

1шт.

21

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

22

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

23

177336A1

BRAKE ASSY.

1шт.

175101A1

LEVER

Consists Of 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

Bar

1шт.

25

NSS

NOT SOLD SEPARAT

Bar

1шт.

26

NSS

NOT SOLD SEPARAT

Handle Assy

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Pin, Cross

4шт.

29

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

30

NSS

NOT SOLD SEPARAT

Spacer Assy

2шт.

31

NSS

NOT SOLD SEPARAT

Pin, Cross

2шт.

32

275592A1

BUSHING,104.3mm ID x 115.2mm OD x 44mm L

1шт.

33

800-5140

SNAP RING,M40, Ext, Hvy

(2.5mm Thk)

1шт.

195132A1

PIN

Consists Of 34 - 36

2шт.

34

738-5520

LOCK PIN,5mm OD x 20mm L, Slotted

2шт.

35

141013A1

SPRING

2шт.

36

141014A1

PIN

2шт.

37

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

38b

175151A1

LARGE PLATE

PLATE, LARGE , 241 mm

1шт.

38c

175105A1

LARGE PLATE

PLATE, LARGE , 255 mm

1шт.

39

185169A1

SPACER

1шт.

40

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

41

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

42

829-1420

NUT,M20, Cl 10

1шт.

43

962-16050

HEX SOC SCREW,M16 x 50mm, Cl 10.9

10шт.

44

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.
