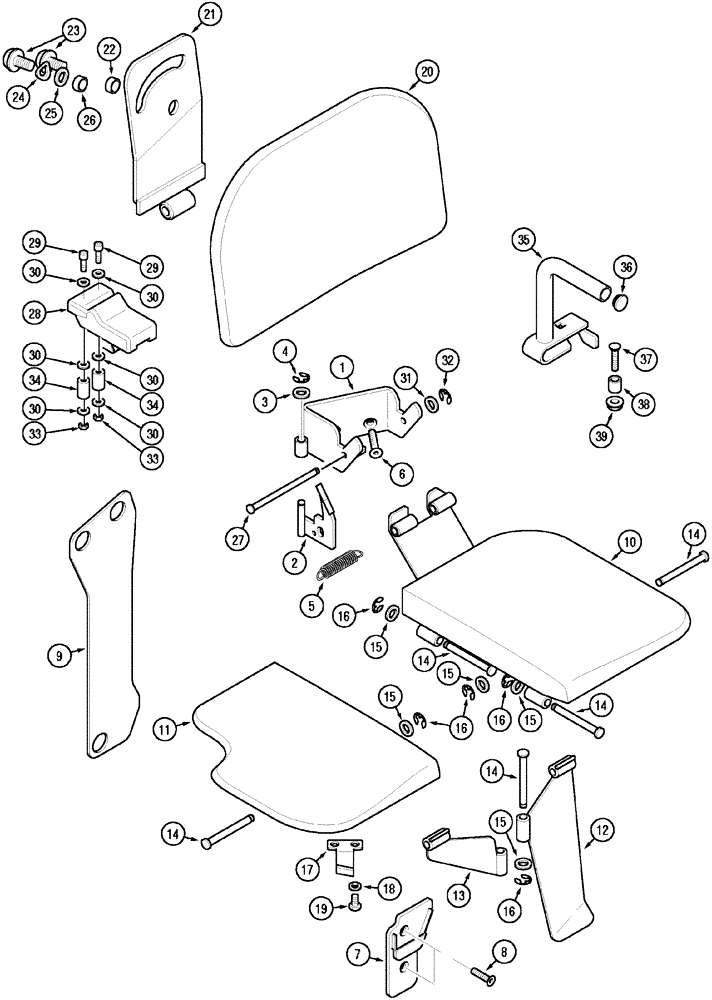

Запчасти Case IH MX135 (09-60) - SEAT CO-WORKER (09) - CHASSIS/ATTACHMENTS

If So Equipped

1шт.

Europe Only

1шт.

304055A1

SEAT ASSY.

Consists Of 1 - 39

1шт.

304056A1

SEAT ASSY.

Consists Of 1 - 34

1шт.

276331A1

SEAT SUPPORT

Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bracket, Upper

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket, Retainer

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

800-438

CIRCLIP,M8

1шт.

5

275661A1

SPRING

1шт.

6

97-010296

SCREW

M8 x 25; 10,9

2шт.

7

224051A4

SEAT SUPPORT

1шт.

8

906036R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 40mm, Cl 10.9

2шт.

9

291387A1

PROTECTOR

1шт.

232546A4

CUSHION ASSY.

Consists Of 10 - 19

1шт.

10

224042A4

CUSHION ASSY.

1шт.

11

224043A5

CUSHION ASSY.

1шт.

12

224107A3

SEAT SUPPORT

1шт.

13

224106A3

SEAT SUPPORT

1шт.

14

225043A1

PIN

5шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

800-438

CIRCLIP,M8

5шт.

17

303137A1

SEAT SUPPORT

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

19

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

2шт.

244525A3

BACKREST

Consists Of 20 - 26

1шт.

20

224376A3

SEAT SUPPORT

1шт.

21

224377A3

SEAT SUPPORT

1шт.

22

242820A1

SPACER

9 x 12 x 5 mm

1шт.

23

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

24

300487A1

WAVE WASHER

10,5 x 21 x 1

1шт.

25

300486A1

WASHER

10,5 x 23 x 2

1шт.

26

300485A1

SPACER

1шт.

27

225041A2

PIN

1шт.

28

303138A1

FASTENER

1шт.

29

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

30

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

800-438

CIRCLIP,M8

1шт.

33

832-10405

NUT,M5 x .8, Cl 8

2шт.

34

304003A1

SPACER

2шт.

35

245650A1

HANDLE,52 mm Length

2шт.

36

3401908R3

PLUG

1шт.

37

611-8040

CARRIAGE BOLT,M8 x 40mm, Class 4.6

1шт.

38

225938A1

SPACER

1шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
