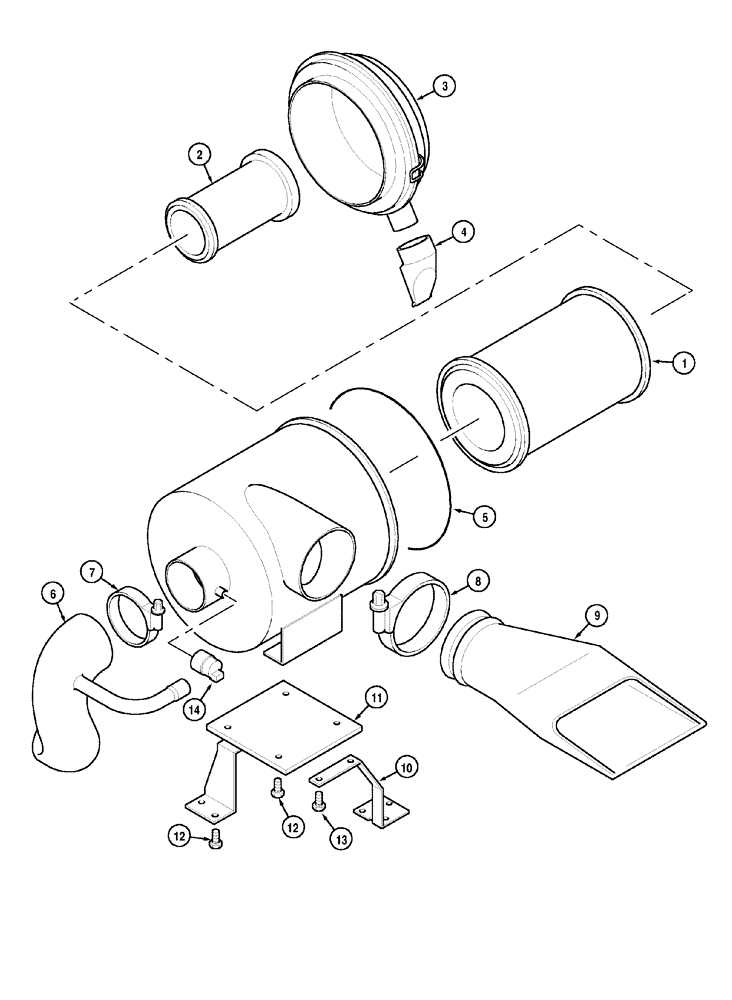

Запчасти Case IH MX135 (02-11) - AIR CLEANER - WITHOUT ASPIRATOR (02) - ENGINE

141567A5

FILTER ASSY

Consists of 1 - 5,14

1шт.

1

187471A1

ELEMENT

1шт.

2

187472A1

AIR FILTER

1шт.

3

225266A1

COVER

1шт.

4

225265A1

VENT (AIR)

1шт.

5

251827A1

O-RING

1шт.

6

139822A1

LARGE HOSE

HOSE,LARGE , Without Air Brake

1шт.

6

227993A2

LARGE HOSE

HOSE,LARGE , With Air Brake, Europe Only

1шт.

7

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

8

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

1шт.

9

141573A3

DUCT

1шт.

10

187473A1

SUPPORT ASSY.

1шт.

11

142223A1

SUPPORT ASSY.

1шт.

12

905-10020

BOLT,Hex Flg, M10 x 20mm

6шт.

13

905-10025

BOLT,Hex Flg, M10 x 25mm

2шт.

14

REF

INSTRUCTION

Switch, See Fig. 4-02, 4-03

1шт.
