Запчасти Case IH MX135 (02-07) - HEATER HOSES (02) - ENGINE

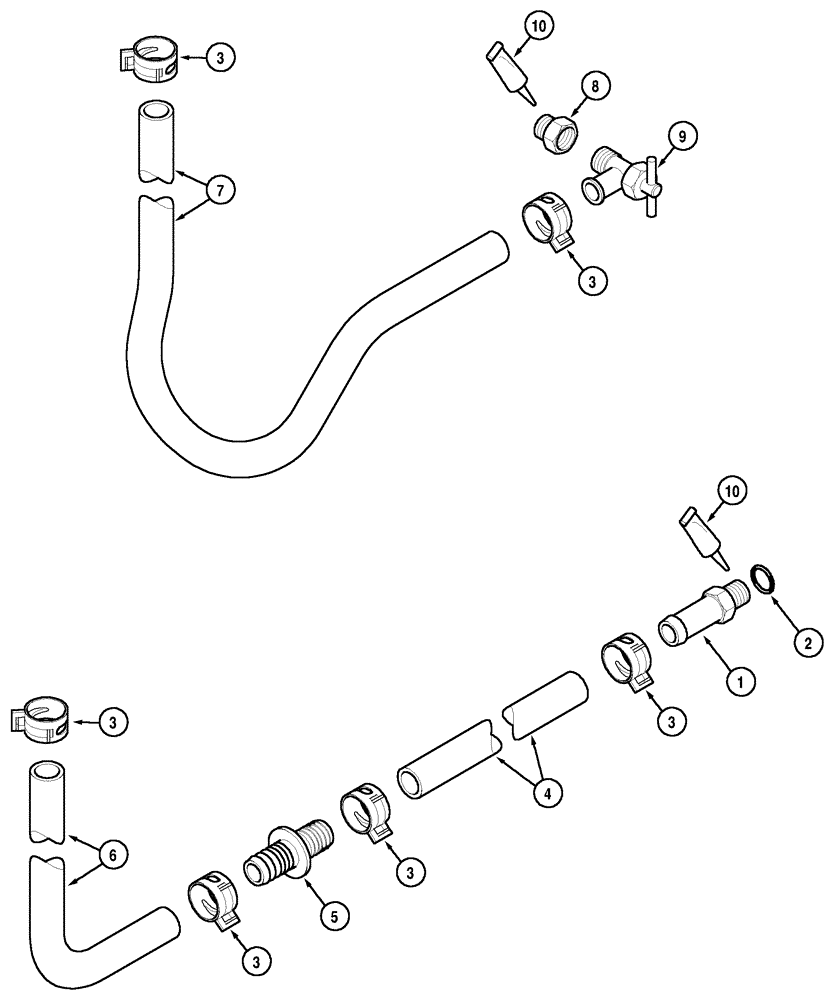

Схема запчастей Case IH MX135 - (02-07) - HEATER HOSES (02) - ENGINE
3
1
3
3
6
4
9
7
10
3
3
10
8
3
5
2

Артикул

Название

Примечание

Количество

1

196816C1

FITTING

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1954736C1

HOSE CLAMP,#24

6шт.

4

3225216R2

HEATER HOSE,15.5mm ID x 460mm L

Cut from 2 x 97252CX

1шт.

5

1301342C1

FITTING

5/8 in

1шт.

6

1300321C2

HEATER HOSE,15.50 mm ID x 3658.00 mm

Cut from 15 x 97252CX

1шт.

7

181071A1

LARGE HOSE,15.50 mm ID x 3130.00 mm

HOSE,LARGE Cut from 11 x 97252CX

1шт.

8

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

9

301803R1

SHUT-OFF VALVE

1шт.

10

345-87

SEALANT

1шт.

10

B17503

LOCTITE

1шт.

Выбрано товаров: 11
