Запчасти Case IH MX135 (09-05) - FRONT WEIGHTS, WITH FRONT HITCH (09) - CHASSIS/ATTACHMENTS

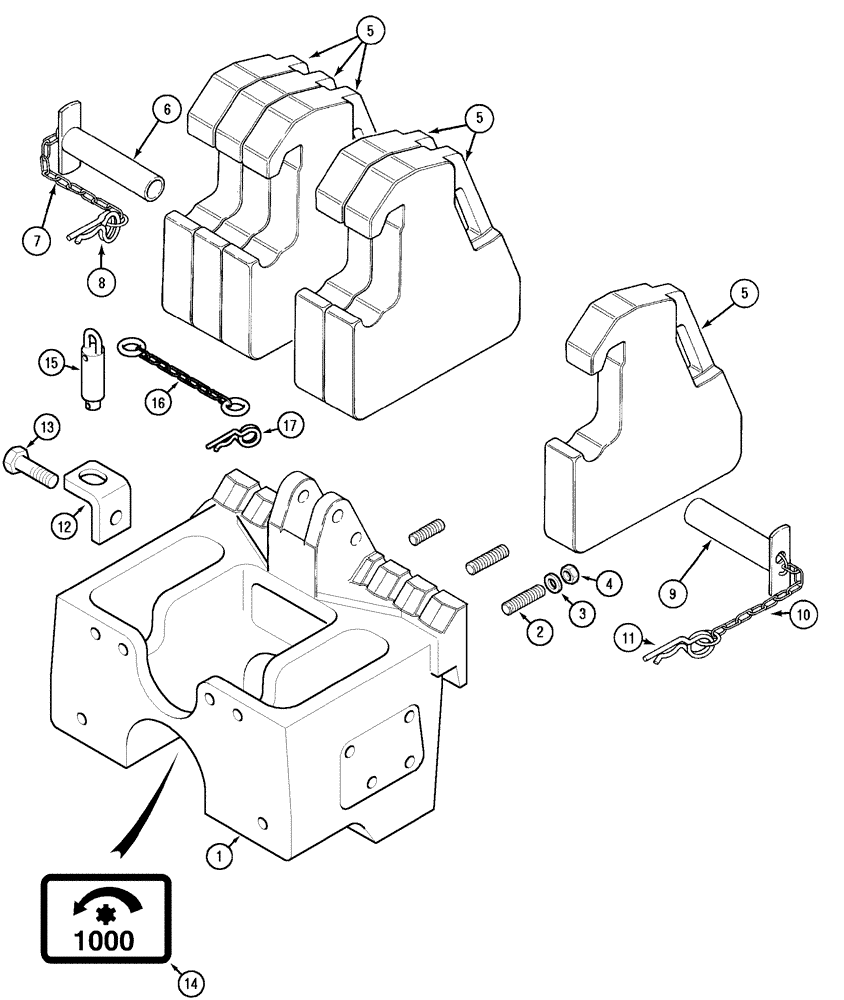

Схема запчастей Case IH MX135 - (09-05) - FRONT WEIGHTS, WITH FRONT HITCH (09) - CHASSIS/ATTACHMENTS
17
8
3
5
9
10
5
4
15
2
12
14
1
5
13
11
7
16
6

Артикул

Название

Примечание

Количество

With Front Hitch

1шт.

1

245451A1

ADAPTER

Front

1шт.

2

228468A2

STUD

6шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

4

829-1420

NUT,M20, Cl 10

6шт.

5

T100587

WEIGHT

44 kg, Front

6шт.

6

1531695C1

TUBE

Left, Includes 7,8

1шт.

7

T104098

CHAIN,W/Ring

With Ring

1шт.

8

T104026

SPLIT PIN/SAFETY PIN

1шт.

9

1531696C1

TUBE

Right, Includes 10,11

1шт.

10

T104098

CHAIN,W/Ring

With Ring

1шт.

11

T104279

SPLIT PIN/SAFETY PIN

1шт.

12

277098A1

ANGLE

1шт.

13

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

2шт.

14

1534713C1

DECAL

1000

1шт.

1534574C1

HITCH PIN,30mm OD x 95mm L

Consists of 15 - 17

2шт.

15

1534575C1

HITCH PIN,30mm OD x 95mm L

1шт.

16

T104098

CHAIN,W/Ring

1шт.

17

T104026

SPLIT PIN/SAFETY PIN

1шт.

Выбрано товаров: 19
