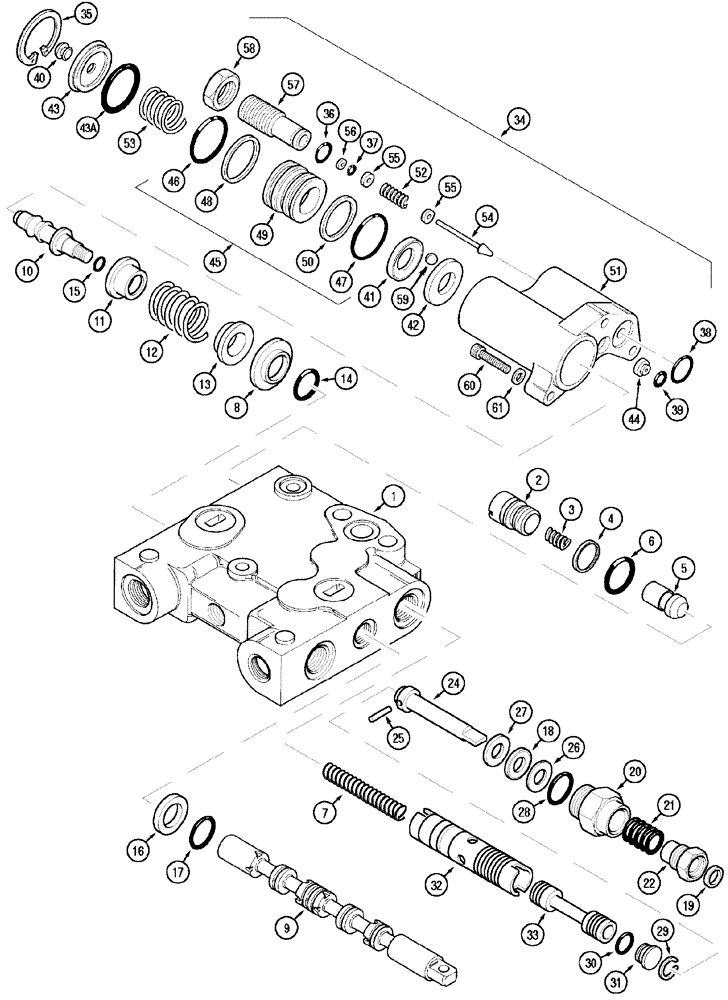

Запчасти Case IH MX135 (08-26) - REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

1980450C8

VALVE, CONTROL

With 1 Check Valve, Consists of 1 - 61 and 8-27 items 62 - 83

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

1542563C1

KIT

Consists of 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

1957887C1

SPRING

1шт.

NSS

NOT SOLD SEPARAT

Spool Assy, Consists of 8 - 15

1шт.

8

G108630

HOLDER

1шт.

9

1542571C1

SPOOL

1шт.

10

246405A1

STUD

1шт.

345-601

LOCTITE

Use with Ref 10

1шт.

11

G108913

SPRING CUP

1шт.

12

G108915

SPRING

Outer

1шт.

13

G108914

SPRING CUP

Inner

1шт.

14

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

15

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

16

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

1шт.

17

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

1343791C2

SET OF PARTS

Flow Control Valve, Consists of 18 - 28

1шт.

18

F13537

THRUST BEARING

1шт.

19

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

20

1980226C1

PLUG

1шт.

21

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 ID x 3/32

5шт.

22

1980227C1

NUT

1шт.

24

1980302C2

ROD

Includes 25

1шт.

25

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1/8 x 11/16 in

1шт.

26

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

27

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

1994677C1

SLEEVE ASSY

Consists of 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

30

NSS

NOT SOLD SEPARAT

7/16 ID x 1/16, O-Ring

1шт.

31

NSS

NOT SOLD SEPARAT

Plug

1шт.

32

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

33

NSS

NOT SOLD SEPARAT

Spool

1шт.

34

1980160C2

SPOOL

Consists of 35 - 59

1шт.

35

100-21118

SNAP RING,1.188", Int, #118

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

38

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

321361A1

RETAINER

Consists of 40,43,43A

1шт.

40

G107780

VALVE, CHECK

1шт.

41

G108911

WASHER

Outer

1шт.

42

G108912

WASHER

Inner

1шт.

43

NSS

NOT SOLD SEPARAT

Retainer

1шт.

43b

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

44

G108918

ORIFICE

1шт.

45

G108921

PISTON

Includes 46 - 50

1шт.

46

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

47

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

48

G108728

BACK-UP RING

Large

1шт.

49

G108908

PISTON

1шт.

50

G108922

BACK-UP RING

Small

1шт.

51

1976957C1

COVER ASSY

1шт.

52

G109275

SPRING

1шт.

53

G110152

SPRING

1шт.

54

G110279

VALVE POPPET

1шт.

55

G110281

SPRING CUP

2шт.

56

G110289

BACK-UP RING

1шт.

57

G110300

PLUG

1шт.

58

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

59

211-1007

BALL,7/32" Dia

Gr 24, CRS

8шт.

60

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

61

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

3шт.
