Запчасти Case IH MX135 (06-13) - RANGE SHIFT CONTROLS - POWERSHIFT (06) - POWER TRAIN

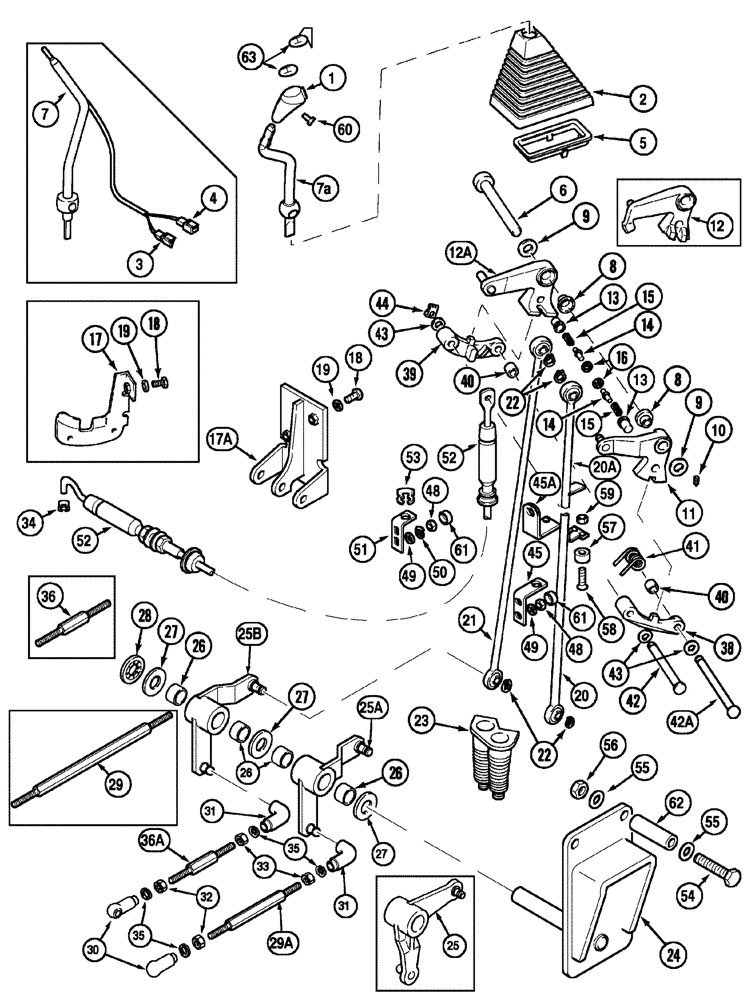

Схема запчастей Case IH MX135 - (06-13) - RANGE SHIFT CONTROLS - POWERSHIFT (06) - POWER TRAIN
51
62
19
15
35
35
17a
63
27
31
53
28
26
14
1
7a
42a
16
17
5
7
30
43
21
29
8
9
18
36a
56
45a
43
12
13
48
61
6
52
57
2
9
61
55
32
29a
27
22
50
40
24
55
34
19
59
3
42
20a
22
48
4
26
31
41
36
38
44
25a
49
27
25
14
8
12a
60
39
18
52
23
33
54
26
40
25b
20
13
45
11
10
15
49
58

Артикул

Название

Примечание

Количество

1

193633A6

KNOB

With Switch, Includes 2,60,63,3,4

1шт.

2

1533271C1

BOOT

1шт.

3

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

4

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

222848A1

ELEC CONNECTOR

Not Illustrated, Used with 222136A1

1шт.

5

241536A1

SUPPORT

1шт.

6

234408A2

PIN,M27 x 1.5 x 3"

1шт.

7

237236A4

LEVER

1шт.

7a

314140A1

LEVER

1шт.

8

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

9

T102056

WASHER

2шт.

10

878-2068

SET SCREW,Hex Skt, M6 x 6mm, Cone Pt

6 x 8 mm

1шт.

10

307233A1

HEX SOC SCREW

6 x 8 mm

1шт.

11

238726A1

ARM

Right, Includes 1534651C1

1шт.

11a

311736A1

ARM ASSY.

Right, Includes 1534651C1

1шт.

12

238725A1

ARM

Left, Includes 1534651C1

1шт.

12a

311737A1

ARM ASSY.

Left, Includes 1534651C1

1шт.

1534651C1

RING ASSY.

Consists of 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

2шт.

14

NSS

NOT SOLD SEPARAT

Pin

2шт.

15

NSS

NOT SOLD SEPARAT

Spring

2шт.

16

1534604C1

BUSHING

2шт.

17

199453A1

SUPPORT

1шт.

17a

309397A1

SUPPORT ASSY.

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

247381A1

TRUSS ROD

Magnetic

1шт.

20a

339497A1

STEM

Actuator

1шт.

21

237381A1

ROD ASSY.

1шт.

22

1535283C1

CIRCLIP

M8

4шт.

22

800-437

CIRCLIP,M7

4шт.

23

276599A1

BELLOWS

Version with Cab

1шт.

23

223191A1

BELLOWS

Version with Cab, N.A. Only, Serial No. JJA0077014, Build Date 4-22-1997

1шт.

24

237238A1

SUPPORT

1шт.

25

237891A1

LEVER ASSY.

1st and 2nd Gear, Includes 26

2шт.

25a

318468A1

LEVER ASSY.

1st and 2nd Gear, Includes 26

2шт.

25

237893A1

LEVER ASSY.

3rd and 4th Gear, Includes 26

2шт.

25b

318469A1

LEVER ASSY.

3rd and 4th Gear, Includes 26

2шт.

26

1533538C1

PLASTIC RING

2шт.

27

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

3шт.

28

1533658C1

CLAMP,19.4mm ID x 36.5mm OD x 3mm Thk

1шт.

29

199481A2

STEM

1st and 2nd Gear, 294mm (11.57") long

1шт.

29a

318470A1

STEM

1st and 2nd Gear, 277mm (10.90") long

1шт.

30

T103566

BALL JOINT

2шт.

31

T103567

BALL SOCKET,M8

LH Thread

2шт.

32

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

LH Thread

2шт.

33

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

2шт.

34

229667A1

CLIP,ELECTRICAL

1шт.

34

800-436

CIRCLIP,M6

1шт.

35

3233348R1

CLIP

4шт.

36

199482A2

STEM

3rd and 4th Gear

1шт.

36a

318471A1

STEM

3rd and 4th Gear

1шт.

38

120188A2

PAWL

Right

1шт.

39

120189A1

PAWL

Left

1шт.

40

120191A2

SPACER

2шт.

41

131688A2

SPRING

1шт.

42

120190A1

HEADED PIN

6 x 45 mm

2шт.

42a

309399A1

HEADED PIN

6 x 54 mm

2шт.

43

933907R1

WAVE WASHER,M6.4 ID x 12 OD x .5 Thk

4шт.

44

T102674

CLIP

2шт.

45

245554A1

SUPPORT

Magnetic

1шт.

45a

339980A1

SUPPORT

Actuator

1шт.

48

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

50

892-11006

LOCK WASHER,M6

2шт.

51

245753A1

SUPPORT

1шт.

52

245843A2

CABLE ASSY.

Powershift

1шт.

53

3223258R2

CIRCLIP

1шт.

53

800-4313

CIRCLIP,M13

1шт.

54

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

55

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

56

829-1412

NUT,M12, Cl 10.9

2шт.

57

140699A1

FITTING

2шт.

58

140700A2

SCREW,Phil Flat Hd, Csk, M4 x 40mm, Brass

4 x 40 mm

2шт.

58

295278A1

SCREW

4 x 25 mm

2шт.

59

824-1404

NUT,M4, Cl 5

2шт.

225294C1

ELEC CONNECTOR,Male, 3 Pin

If So Equipped, Not Illustrated

1шт.

225297C1

ELEC CONNECTOR

If So Equipped, Not Illustrated

1шт.

60

878-2048

SET SCREW,Hex Skt, M4 x 8mm, Cone Pt

1шт.

61

3221725R1

CAP

6 mm

2шт.

62

321772A1

SPACER

2шт.

63

341426A1

CAP

16 Speed, If Used

1шт.

63

393181A1

CAP

16 Speed, If Used

1шт.

Выбрано товаров: 84
