Запчасти Case IH MX135 (06-10) - TRANSMISSION FORWARD AND REVERSE (06) - POWER TRAIN

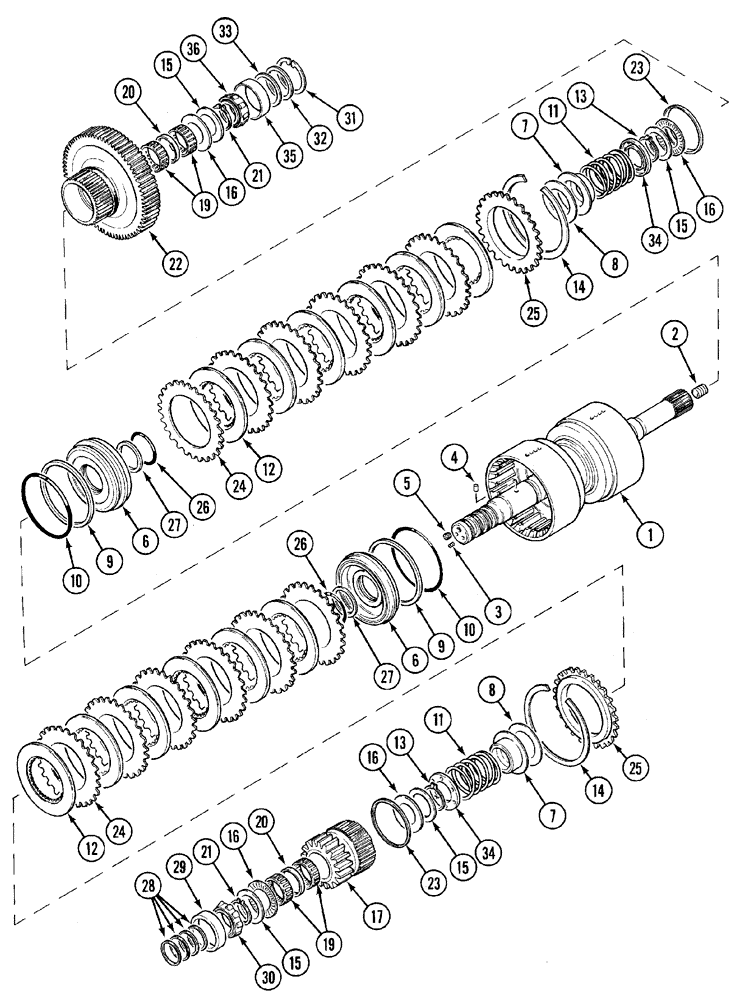

Схема запчастей Case IH MX135 - (06-10) - TRANSMISSION FORWARD AND REVERSE (06) - POWER TRAIN
23
12
15
24
22
12
6
30
15
10
17
21
25
27
26
31
14
19
3
34
27
13
25
19
13
35
7
28
26
10
33
16
15
16
23
1
34
24
5
20
11
8
2
9
15
21
11
16
20
4
16
36
6
9
32
29
8
14
7

Артикул

Название

Примечание

Количество

1

1341161C2

SHAFT ASSY.

Includes 2 - 5

1шт.

2

A183506

SET SCREW

1шт.

3

141990A1

PLUG

7 mm

2шт.

3

1345889C1

PLUG

6,5 mm OD

2шт.

4

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

2шт.

5

1342851C1

PLUG

10 mm

1шт.

5

1345887C1

PLUG

9 mm

1шт.

6

A159292

PISTON

2шт.

7

1997131C1

SLEEVE

2шт.

8

A188134

SHIM,48.27mm ID x 66mm OD x 0.68mm Thk

0,75 mm

1шт.

8

A188135

SHIM,48.27mm ID x 66mm OD x 0.93mm Thk

1,00 mm

1шт.

8

A188136

SHIM,48.27mm ID x 66mm OD x 1.18mm Thk

1,25 mm

1шт.

8

A188137

SHIM,48.27mm ID x 66mm OD x 2.17mm Thk

2,25 mm

1шт.

9

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

2шт.

10

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

2шт.

11

A188080

SPRING

2шт.

12

1997129C1

NOTCHED DISK

12шт.

13

100-16156

SNAP RING,#156, Ext

2шт.

14

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

2шт.

15

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

4шт.

16

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

4шт.

17

A188123

GEAR

17T, Reverse, Includes 17A

1шт.

17b

A188042

RETAINER

1шт.

19

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

4шт.

20

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

2шт.

21

100-16150

SNAP RING,#150, Ext

2шт.

22

1995260C1

GEAR

70T, Forward

1шт.

23

1995174C1

SEALING RING

SEALRING

2шт.

24

A175806

PLATE

12шт.

25

1997122C1

PLATE

2шт.

26

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

2шт.

27

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

2шт.

28

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

4шт.

29

61801C1

BEARING CUP,63mm OD x 13.5mm W

2-31/64

1шт.

30

A188709

BEARING CONE,38mm ID x 17mm W

1шт.

31

100-21250

SNAP RING,2.50", Int, #250

1шт.

32

A175447

SPACER

1шт.

33

A159443

SHIM,52mm ID x 62.58mm OD x 0.08mm Thk

1шт.

33

A159442

SHIM,0.127mm Thk

1шт.

33

A159441

SHIM,0.177mm Thk

1шт.

33

A188792

SHIM,52mm ID x 62.58mm OD x 0.5mm Thk

1шт.

34

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

2шт.

35

1345709C1

BEARING, CUP,63mm OD x 13.5mm W

1шт.

36

1345710C1

ROLLER BEARING,37.99mm ID x 17.08mm W

1шт.

36

194080A1

ROLLER BEARING,37.99mm ID x 17.2mm W

1шт.

Выбрано товаров: 45
