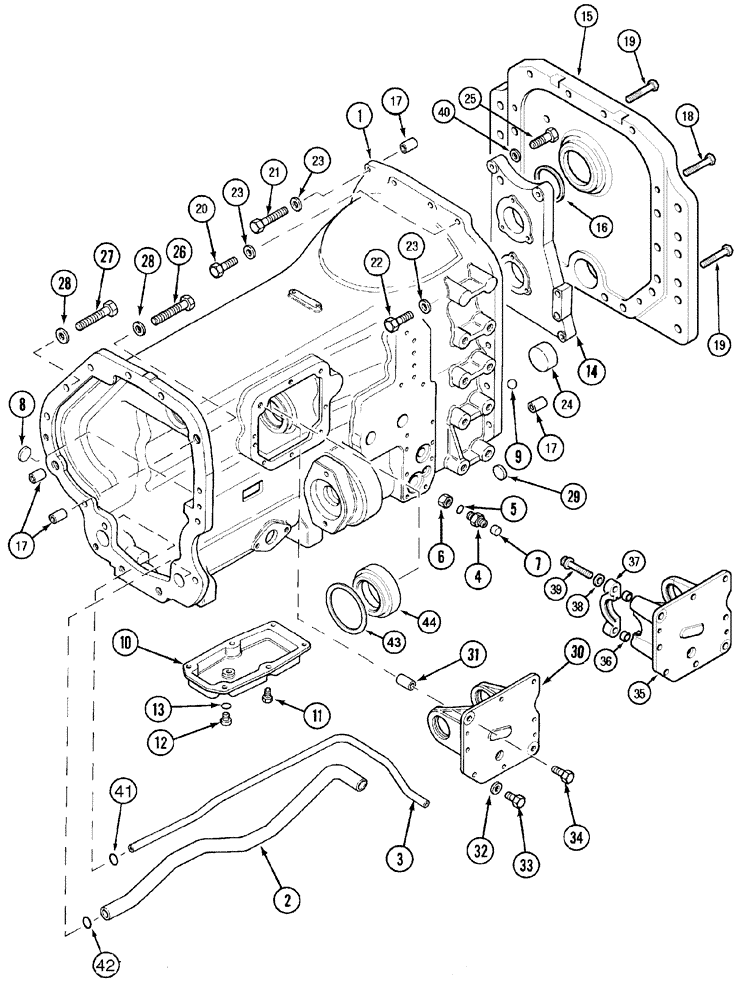

Запчасти Case IH MX135 (06-01) - TRANSMISSION - HOUSING AND BEARING CARRIER (06) - POWER TRAIN

1

299398A1

HOUSING

Trans No. - JKA0127945, Includes 2 - 9

1шт.

1

362798A1

HOUSING

Trans No. JKA0127946 -

1шт.

2

A188229

TUBE

1шт.

3

A188230

TUBE

1шт.

4

1995465C1

UNION

1/2 x 3/4 in

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

7

353-364

CAP,13/16"-16

1шт.

8

41-1036

PLUG,Cup, 2 1/4"

1шт.

9

1345888C1

PLUG

2шт.

10

A188493

COVER

1шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

A188642

CARRIER

Powershift, Trans No. - JKA127945

1шт.

14

228651A1

COVER

Powershift, Trans No. JKA127946 -

1шт.

14

1995143C1

BEARING CARRIER,76.225 mm ID x 338 mm OD x 28.12 mm

Synchromesh

1шт.

15

198369A2

COVER

1шт.

16

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

1шт.

17

A175944

DOWEL,22.1mm OD x 13.5mm L

1шт.

18

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

19

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

20

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

21

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

22

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

24

1341280C1

PLUG

2WD

1шт.

25

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

26

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

2шт.

27

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

9шт.

28

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

11шт.

29

A175414

PLUG

1шт.

30

A190245

COVER

With Creep Speed

1шт.

30

A190246

COVER

Without Creep Speed, Not Illustrated

1шт.

31

A188330

SLEEVE

2шт.

32

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, With Creep Speed

8шт.

32

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm, High Clearance

8шт.

33

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Without Creep Speed

8шт.

33

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

With Creep Speed

6шт.

34

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

With Creep Speed

2шт.

1345884C1

COVER ASSY

30 km/h, High Clearance, Consists of 35 - 39

1шт.

35

NSS

NOT SOLD SEPARAT

Cover

1шт.

36

A50011

SLEEVE

2шт.

37

NSS

NOT SOLD SEPARAT

Cap

1шт.

38

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

2шт.

39

866-10055

12 PT SCREW,Flg, M10 x 55mm, Cl 12.9

2шт.

40

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

41

239-5117

O-RING,Quad, 0.094" Thk x 0.813" ID, Cl 5, 75 Duro

1шт.

42

239-5129

O-RING,Square, 0.094" Thk x 1.563" ID, -129, Cl 5, 75 Duro

SEALRING

1шт.

43

101-21354

SNAP RING,#354, Int

Trans No. JKA127946 -

1шт.

44

336991A1

SLEEVE

Trans No. JKA127946 -

1шт.
