Запчасти Case IH MX135 (05-22) - DRIVE SHAFT (05) - STEERING

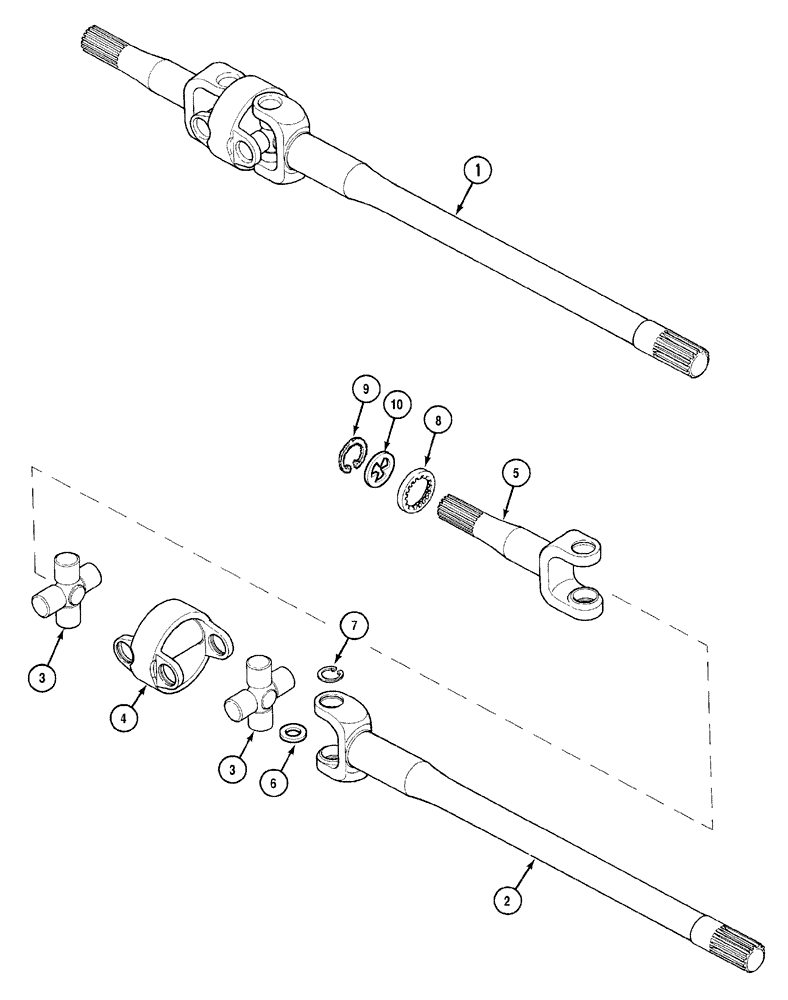

Схема запчастей Case IH MX135 - (05-22) - DRIVE SHAFT (05) - STEERING
3
4
2
7
6
5
8
10
9
3
1

Артикул

Название

Примечание

Количество

319758A3

SHAFT ASSY.

Axle 20:19, Consists of 1,8,9,10

1шт.

319758A3R

REMAN-GEAR

MX100, MX110, MX120, MX135

1шт.

319758A3C

CORE-GEAR

Return Number

1шт.

319759A3

SERVICE KIT

Side, Consists of 5,8,9,10

1шт.

1

365775A1

DRIVE SHAFT

Axle 20:19

2шт.

2

247541A1

SHAFT

Differential, Axle 20:19

1шт.

3

247543A1

U-JOINT SPIDER

Axle 20:19

2шт.

4

195213A1

BODY

Axle 20:19

1шт.

5

319759A3

SERVICE KIT

Axle 20:19

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Axle 20:19

8шт.

7

NSS

NOT SOLD SEPARAT

Clip, Axle 20:19

8шт.

8

365752A1

THRUST WASHER

Axle 20:19

1шт.

9

365753A1

RING, SNAP

RING SNAP Note: For Narrower Snap Ring, Use 85806000, Axle 20:19

1шт.

10

247554A1

THRUST WASHER

Axle 20:19

2шт.

319760A3

SET OF PARTS

Axle 20:22, Consists of 1,8,9,10

1шт.

319761A3

SERVICE KIT

Side, Consists of 5,8,9,10

1шт.

1

365776A1

DRIVE SHAFT

Axle 20:22

2шт.

2

253072A1

SHAFT ASSY.

Differential, Axle 20:22

1шт.

3

253073A1

U-JOINT SPIDER

Axle 20:22

2шт.

4

253074A1

BODY

Axle 20:22

1шт.

5

366947A1

DRIVE SHAFT

Axle 20:22

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Axle 20:22

8шт.

7

NSS

NOT SOLD SEPARAT

Clip, Axle 20:22

8шт.

8

365752A1

THRUST WASHER

Axle 20:22

1шт.

9

365753A1

RING, SNAP

RING SNAP, Axle 20:22

1шт.

10

247554A1

THRUST WASHER

Axle 20:22

2шт.

Выбрано товаров: 26
