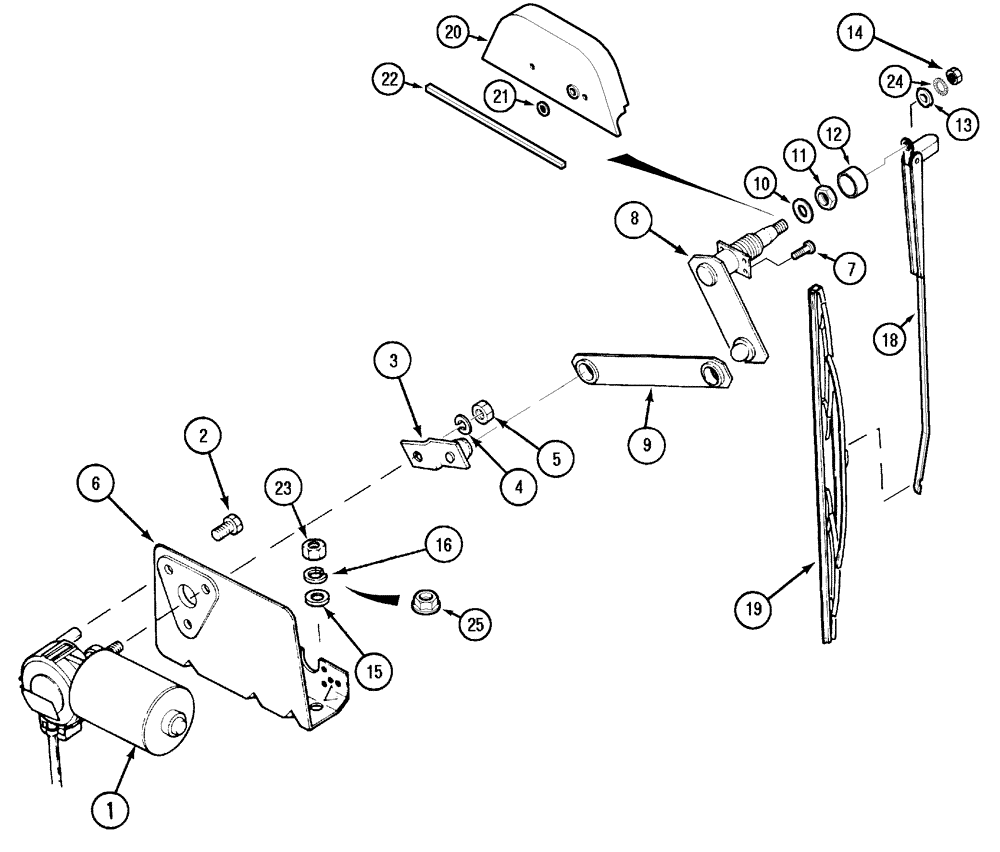

Запчасти Case IH MX120 (04-31) - WINDSCREEN WIPER - FRONT (04) - ELECTRICAL SYSTEMS

1

A186256

WIPER MOTOR,12V

12V

1шт.

1

367428A1

WIPER MOTOR

MOTOR, WIPER , Doga

1шт.

2

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

3

N8360

SUPPORT

1шт.

4

N14111

WASHER

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

N8359

SUPPORT

1шт.

7

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

4шт.

8

N14112

SHAFT

1шт.

9

N8358

LINK

1шт.

10

L112088

WASHER

1шт.

11

L112087

NUT

1шт.

12

L112081

CAP

1шт.

12

111109A1

CAP

Doga

1шт.

13

L112089

WASHER

1шт.

14

825-1408

NUT,M8, Cl 8

1шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

18

236195A1

WIPER ARM

ARM, WIPER , Bosch

1шт.

18

367429A1

WIPER ARM

ARM, WIPER , Doga, 425 mm

1шт.

19

236194A1

WIPER BLADE

BLADE, WIPER , Bosch

1шт.

19

367430A1

WIPER BLADE

BLADE, WIPER , Doga

1шт.

229603A2

PROTECTOR

Consists of 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Panel

1шт.

21

229601A1

WIPER SEAL

1шт.

22

229600A1

WIPER SEAL

280 mm

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

25

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Replaces 15, 16, 23

2шт.
