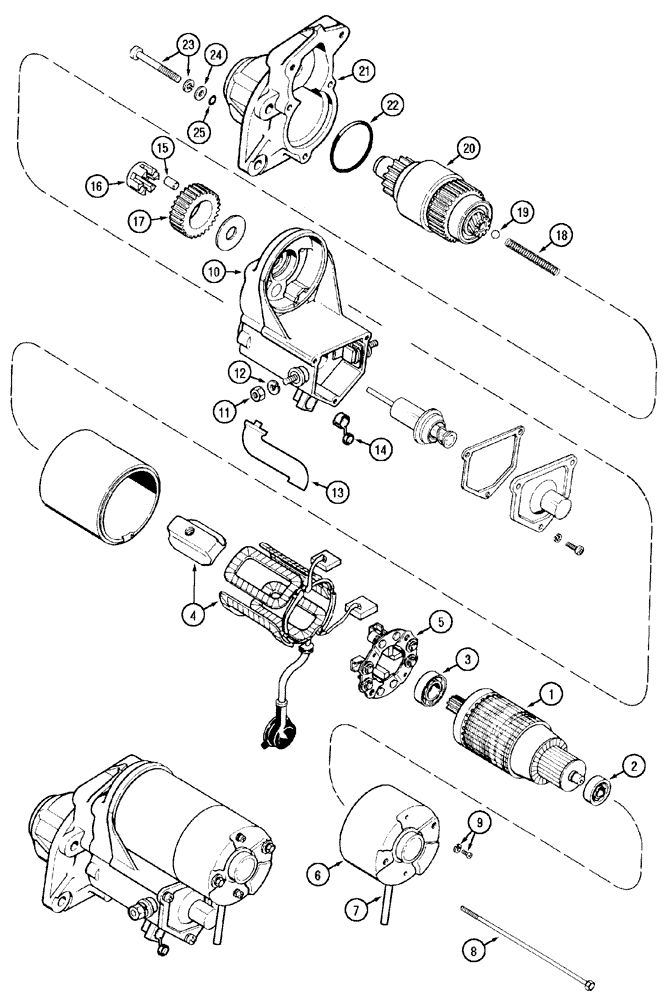

Запчасти Case IH MX120 (04-15) - STARTER ASSEMBLY - 2.7KW (04) - ELECTRICAL SYSTEMS

282161A1

STARTING MOTOR,12V, 2.7kW

2.7 KW

1шт.

282161A1R

REMAN-STARTER,12V, 2.7kW

Reman for New P/N 282161A1

1шт.

282161A1C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

1

332446A1

ARMATURE

Includes 2,3

1шт.

2

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

3

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

4

332465A1

STATOR

1шт.

5

A47239

HOLDER

1шт.

6

332466A1

COVER

1шт.

7

258883A1

BUSHING

Drain

1шт.

8

332467A1

BOLT

2шт.

9

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

2шт.

10

332469A1

SWITCH

Includes 11,12

1шт.

11

332468A1

NUT

1шт.

12

141360A1

WASHER

1шт.

13

332470A1

RING ASSY.

Drain

1шт.

14

141354A1

RING

1шт.

15

A47235

ROLLER BEARING

5шт.

16

A47236

RETAINER

1шт.

17

A47233

GEAR

1шт.

18

A47232

SPRING

2-13/16

1шт.

19

211-1311

BALL,11/32" Dia

200, CRS

1шт.

20

258840A1

CLUTCH ASSEMBLY

1шт.

21

332474A1

COVER

1шт.

22

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47230

BOLT

Consists of 23,24,25

3шт.

23

NSS

NOT SOLD SEPARAT

Bolt

1шт.

24

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

25

A47130

O-RING

1шт.
