Запчасти Case IH MX120 (04-09) - HARNESS REAR FENDER - N.A. ONLY (04) - ELECTRICAL SYSTEMS

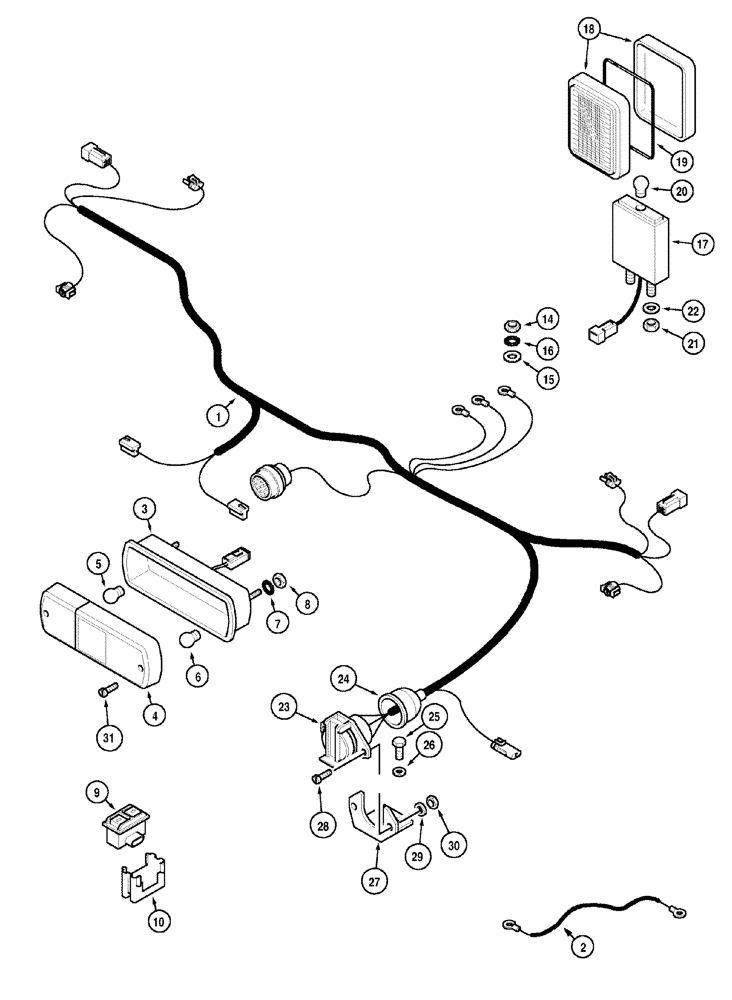

Схема запчастей Case IH MX120 - (04-09) - HARNESS REAR FENDER - N.A. ONLY (04) - ELECTRICAL SYSTEMS
21
31
28
2
25
18
27
24
6
7
4
15
29
19
23
14
10
5
16
22
17
29
9
30
3
26
1
6

Артикул

Название

Примечание

Количество

1

341266A2

HARNESS

With Cab

1шт.

1

341268A2

HARNESS

Platform

1шт.

2

192935A1

CABLE

1шт.

3

177239A2

LAMP, TAIL

LIGHT, TAIL , Combination, Right, Includes 4 - 6, 31

1шт.

3

259816A1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL , Combination, Left, Includes 4 - 6, 31

1шт.

4

187140A1

LENS

1шт.

5

1094366R1

BULB

12V, 21w, Turn Signal

1шт.

6

3131234R1

BULB,P25-2, 12V, 5W

Stop - Tail Lights

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

9

220415A2

SWITCH ASSY

Hitch, Remote Control; Molded Female Connector

2шт.

9

353062A1

HITCH UP/DOWN SWITCH

Pigtail w/Male Connector

2шт.

10

220416A2

CLAMP

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

892-11008

LOCK WASHER,8mm ID

1шт.

17

246325A1

HEADLIGHT

Turn Signal, Includes 18 - 20

2шт.

18

232212A1

LENS,135.8mm L x 90mm W, Amber

Amber

2шт.

19

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

1шт.

20

A41264

BULB,#1156, 12V

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

121645C1

MULTIPOLE CONNECTOR,7 Pin

1шт.

24

481849C1

PROTECTIVE COVER

1шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

27

1961335C4

SUPPORT

1шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

30

825-1408

NUT,M8, Cl 8

2шт.

31

83960379

SCREW,Pan HD, M4 x 50.25mm

2шт.

Выбрано товаров: 31
