Запчасти Case IH MX120 (04-06) - HARNESS CAB ROOF (04) - ELECTRICAL SYSTEMS

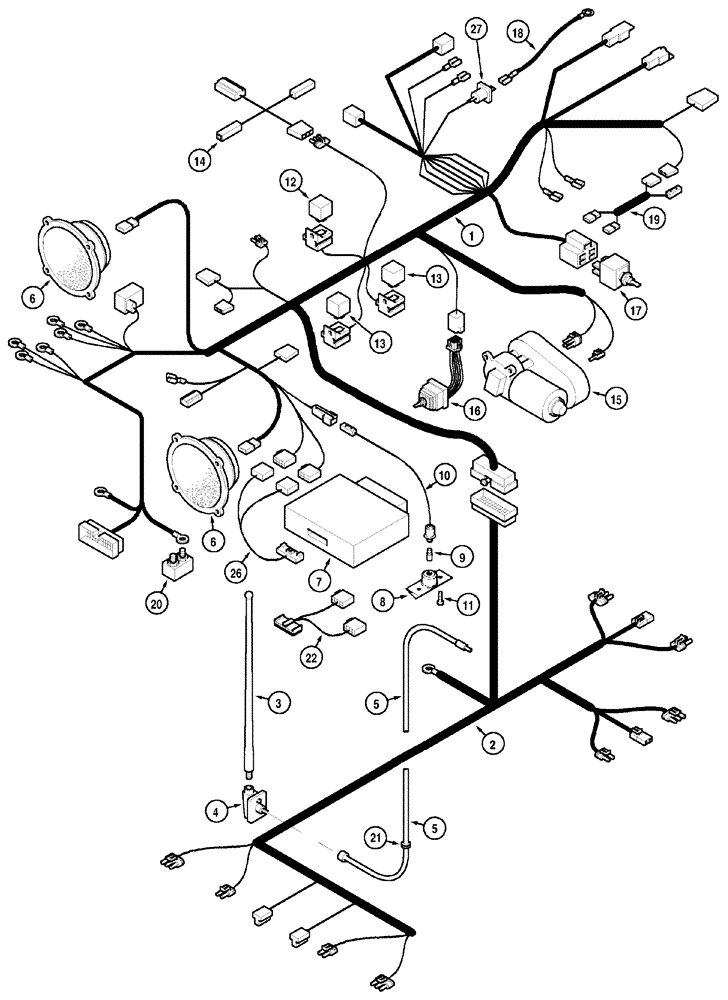

Схема запчастей Case IH MX120 - (04-06) - HARNESS CAB ROOF (04) - ELECTRICAL SYSTEMS
8
2
9
4
14
12
20
19
5
5
17
13
26
13
3
6
7
21
18
11
6
10
22
16
27
15
1

Артикул

Название

Примечание

Количество

1

296736A1

HARNESS

Inner

1шт.

1

366631A1

RADIO

Delco, Inner, N.A. Only

1шт.

2

229047A2

HARNESS

Outer

1шт.

197745A1

ANTENNA

410 mm, Consists of 3,4

1шт.

3

198960A1

ANTENNA

360 mm

1шт.

3

279259A1

ANTENNA

800 mm, N.A. Only (Not Shown)

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

198962A1

CABLE

750 mm; Antenna w/Ground Strap

1шт.

5

253059A1

CABLE

1500 mm; Antenna Extension

1шт.

6

182721A2

SPEAKER

5-1/2

2шт.

7

284761A1

RADIO

Philips, With Cassette Player, Europe Only

1шт.

7

284762A1

RADIO

Philips, With Cassette Player, Europe Only

1шт.

7

366631A1

RADIO

Delco, N.A. Only

1шт.

7

355623A1

RADIO

Delco, With Cassette Player, N.A. Only

1шт.

8

83882C91

LAMP

Includes 9,10

1шт.

9

D71346

TAIL LAMP,12V

No. 168

1шт.

10

107329C1

WIRE HARNESS

1шт.

11

1977686C1

SCREW

4,2 x 25 mm

2шт.

11

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

12

105849A1

RELAY

20 amp, Control

1шт.

13

105849A1

RELAY

20 amp, Blower

2шт.

14

254919A1

HARNESS

Dome, Light

1шт.

15

REF

INSTRUCTION

Motor, Wiper, See Fig.(s) 04-31, 04-32

1шт.

16

REF

INSTRUCTION

Switch, Windshield Wiper Front, See Fig.(s) 09-12, 09-27, 09-28

1шт.

17

168822C2

SWITCH

Blower, 1-1/16 in square, If Equipped

1шт.

17

403129A1

BLOWER SWITCH

Blower, 1-1/2 in square, If Equipped

1шт.

18

236864A2

HARNESS,500mm L

Diode

1шт.

19

254920A2

HARNESS

A Post, Front Work Light, Europe Only

1шт.

19

296484A1

HARNESS

A Post, Front Work Light, N.A. Only

2шт.

20

92056C1

CIRCUIT-BREAKER

40 amp

1шт.

21

322636A1

GROMMET

1шт.

22

296470A1

HARNESS

Adaptor, Use with Audiovox Radio

1шт.

22

321658A1

WIRE HARNESS

Adaptor, N.A. Only, Use with 321290A1, Audiovox Radio

1шт.

22

276902A2

HARNESS

Adaptor, Use with Delco Radio

1шт.

22

291652A1

HARNESS

Adaptor, Use with Euro Radio, MX100

1шт.

22

245770A1

WIRE HARNESS

Adaptor, Use with Delco Radio/Packard, N.A. Only

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

26

296455A1

HARNESS

Adaptor, Use with 253772A1 and 253773A1

1шт.

26

366526A1

WIRE HARNESS

Adaptor, N.A. Only, Use with, Serial Range: YAXAKI-DELCO

1шт.

26

322337A1

HARNESS

Adaptor, N.A. Only, Use with 321290A1, Delco Radio

1шт.

26

296455A1

HARNESS

Adaptor, Use with 253772A1 and 253773A1

1шт.

195552A1

ELEC CONNECTOR,Female, 2 Pin

2-way, N.A. Only

1шт.

292494A1

ELEC CONNECTOR

8-way, N.A. Only

1шт.

292495A1

ELEC CONNECTOR

8-way, N.A. Only

1шт.

27

355956A1

DIODE

1шт.

28

1534229C1

PUSH BUTTON SWITCH

(Not Shown)

1шт.

Выбрано товаров: 46
