Запчасти Case IH MX120 (04-05) - HARNESS CONTROL CONSOLE (04) - ELECTRICAL SYSTEMS

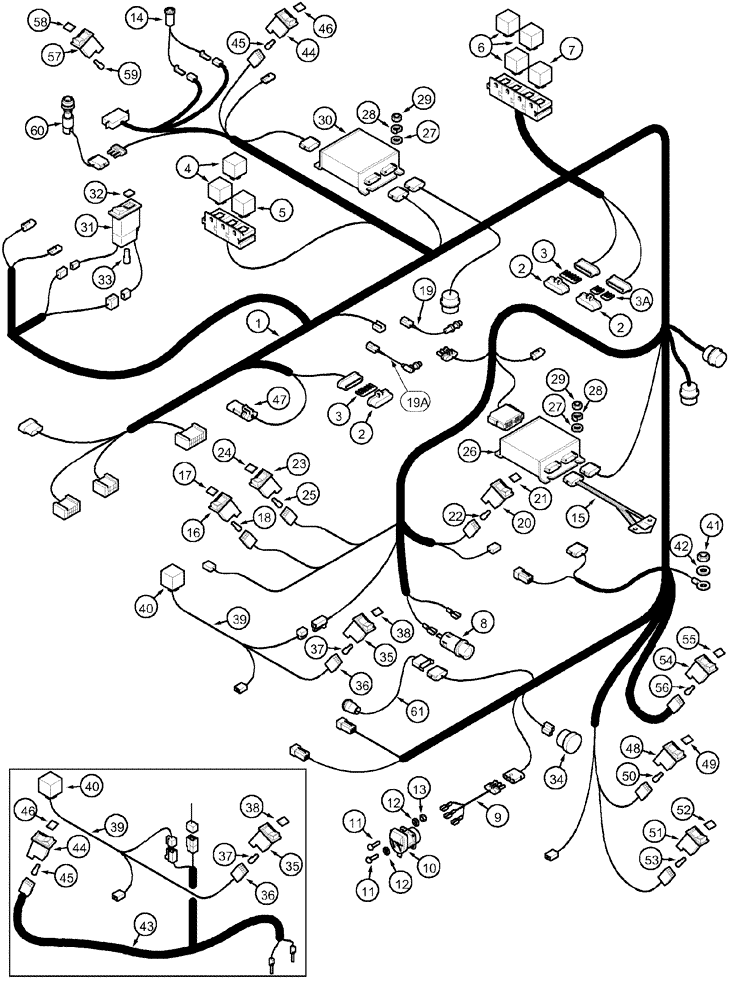

Схема запчастей Case IH MX120 - (04-05) - HARNESS CONTROL CONSOLE (04) - ELECTRICAL SYSTEMS
34
38
13
32
54
35
26
29
18
2
27
58
51
12
44
57
36
9
36
47
21
56
19
28
20
29
11
53
3a
19a
37
41
38
3
44
16
30
8
37
2
24
33
40
14
60
40
46
61
15
3
43
10
49
27
7
4
46
22
45
45
35
39
31
12
5
2
50
11
6
39
42
28
59
25
17
55
23
48
52
1

Артикул

Название

Примечание

Количество

1

237451A3

HARNESS

Wheel Slip, 4WD, Diff Lock, Draft Control, Includes 2,3, Serial No. JJA0079279

1шт.

1

294499A1

HARNESS

Wheel Slip, 4WD, Diff Lock, Draft Control, Includes 2,3, Serial No. JJA0079280

1шт.

1

296842A4

HARNESS

De-Luxe, Wheel Slip, 4WD, Diff Lock, Draft Control

1шт.

1

355491A1

HARNESS

De-Luxe, Wheel Slip, 4WD, Diff Lock, Draft Control, Serial No. JJA0962399

1шт.

1

369948A2

HARNESS

De-Luxe, Wheel Slip, 4WD, Diff Lock, Draft Control, Serial No. JJA0962400

1шт.

1

333944A3

HARNESS

Suspension, Axle, Europe Only, Serial No. JJA0962399

1шт.

1

369947A3

HARNESS

16 speed, Suspension, Axle, Europe Only, Serial No. JJA0962400 -

1шт.

1

237455A3

HARNESS

Position, N.A. Only, Includes 2,3, Serial No. JJA0083885

1шт.

1

296841A1

HARNESS

Position, N.A. Only, Includes 2,3, Serial No. JJA0083886

1шт.

2

187308A1

CAP

3шт.

3

187309A1

BAR

6 Pin

2шт.

3b

194976A1

BAR

3 Pin

2шт.

4

105849A1

RELAY

20 amp, Solenoid, Powershift

2шт.

5

105849A1

RELAY

20 amp, 4WD

1шт.

6

105849A1

RELAY

20 amp, Brake

3шт.

7

105849A1

RELAY

20 amp, Diff Lock

1шт.

8

1964773C1

CIGAR LIGHTER

12 v

1шт.

9

227740A2

HARNESS

Europe Only

1шт.

9

227739A2

POWER SOCKET

With Socket, N.A. Only

1шт.

10

1533880C1

SOCKET/RECEPTACLE

Europe Only

1шт.

293632A1

SCREW

Consists of 11A,12,13

1шт.

293633A1

RIVET

Consists of 11B,12

1шт.

11

378770A1

RIVET

Pusher

4шт.

11b

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

Use with 293632A1

4шт.

11c

151-535

RIVET,Pop, 1/8" x .462"

Use with 293633A1

4шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

13

824-1403

NUT,M3, Cl 5

4шт.

14

183696A1

INDICATOR

1шт.

15

187614A3

DISPLAY

1шт.

276724A1

SWITCH

Diff Lock, Consists of 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Switch

1шт.

17

NSS

NOT SOLD SEPARAT

Lens

1шт.

18

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

18b

134608A1

LAMP SOCKET

1шт.

19

191126A1

LIMIT SWITCH

4th Speed, Lockout, Includes 188603A1

1шт.

188603A1

JAM NUT

M16

1шт.

19b

360813A1

SWITCH

4th Speed, Lockout

1шт.

194216A1

SWITCH

Wheel Slip, Consists of 20 - 22

1шт.

20

91956C1

SWITCH ASSY

1шт.

21

194235A1

SYMBOLS

SYMBOL

1шт.

22

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

194107A1

SWITCH ASSY

4WD, Consists of 23 - 25, BSN JJA0095532, Build Date 8-17-1998

1шт.

276723A1

SWITCH

4WD, Consists of 23 - 25, ASN JJA0095533, Build Date 8-17-1998

1шт.

23

NSS

NOT SOLD SEPARAT

Switch

1шт.

24

1964651C1

SYMBOLS

SYMBOL

1шт.

25

NSS

NOT SOLD SEPARAT

12V, 1,2 w, Bulb

1шт.

26

390473A1

CONTROL

Hitch, Use with 296842A4, 3237451A3, BSN JJA0096841 Requires Programming.

1шт.

26

390473A1R

REMAN-MODULE

Hitch, Use with 296842A4, 3237451A3, BSN JJA0096841. Requires Programming.

1шт.

26

390473A1C

CORE-MODULE

Return Number

1шт.

26

336138A1

MODULE

Hitch Control, ASN JJA0096841

1шт.

26

336138A1R

REMAN ELECT CONTROL

Hitch Control, ASN JJA0096841

1шт.

26

336138A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

28

892-11006

LOCK WASHER,M6

6шт.

29

825-1406

NUT,M6, Cl 8

6шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

30

230599A5

UNIT

P.T.O., Forward - Neutral - Reverse, Flash, Serial No. JJA0088300, Build Date 2-18-1998

1шт.

325377A2R

REMAN-PRINTED CIRCUI

P.T.O., Forward - Neutral - Reverse, Flash, Serial No. JJA0088300, Build Date 2-18-1998

1шт.

325377A2C

CORE-PRINTED CIRCUIT

Return Number

1шт.

30

348759A2

MODULE

Auto P.T.O.

1шт.

194214A3

SWITCH

Hitch Control, Consists of 31 - 33

1шт.

31

225023A1

TOGGLE SWITCH

Hitch Down

1шт.

32

190523A2

SYMBOLS

SYMBOL

1шт.

33

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

34

1546441C1

BUZZER

Park Brake

1шт.

236582A1

SWITCH ASSY

Front P.T.O., Consists of 35 - 38

1шт.

35

1964649C1

SWITCH ASSY

With Latch, Includes 36,37

1шт.

36

134608A1

LAMP SOCKET

1шт.

37

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

38

1983273C1

SYMBOLS

SYMBOL

1шт.

39

185209A1

HARNESS

Front P.T.O.

1шт.

40

105849A1

RELAY

20 amp, Front P.T.O.

1шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

Ground

1шт.

42

892-11006

LOCK WASHER,M6

Ground

1шт.

43

307400A2

HARNESS

Optional, Fourth Remote

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Illustrated

1шт.

297427A1

SWITCH

Consists of 44 - 46

1шт.

44

297426A1

SWITCH

Aux Valve

1шт.

45

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

46

297425A1

SYMBOLS

SYMBOL

1шт.

47

225261A1

DIODE

1шт.

47

228174A1

DIODE

3 way

1шт.

333940A1

SWITCH ASSY

Axle, Regulator, Europe Only, Consists of 48 - 50

1шт.

48

276725A1

TOGGLE SWITCH

1шт.

377343A1

SWITCH ASSY

Axle, Regulator, Europe Only, Consists of 48A - 50

1шт.

48b

377642A1

TOGGLE SWITCH

1шт.

49

333942A1

SYMBOLS

SYMBOL Suspension regulation ( Green )

1шт.

50

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

333939A1

SWITCH ASSY

Axle, Raise, Lower, Europe Only, Consists of 51 - 53

1шт.

51

112078A1

TOGGLE SWITCH

1шт.

52

333941A1

SYMBOLS

SYMBOL Suspension up/down ( Black )

1шт.

53

NSS

NOT SOLD SEPARAT

Bulb

1шт.

337516A1

SWITCH ASSY

Ride Control, Europe Only, Consists of 54 - 56, Serial No. - JJA0962399

1шт.

367654A1

SWITCH ASSY

Ride Control, Europe Only, Serial No. JJA0962400 -

1шт.

54

276725A1

TOGGLE SWITCH

1шт.

55

337532A1

SYMBOLS

SYMBOL

1шт.

56

NSS

NOT SOLD SEPARAT

Bulb

1шт.

337515A1

TOGGLE SWITCH

P.T.O., Europe Only, Consists of 57 - 59

1шт.

57

91956C1

SWITCH ASSY

Auto PTO

1шт.

58

337531A1

DECAL

SYMBOL

1шт.

59

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

60

353862A1

SWITCH

P.T.O.

1шт.

333939A1

SWITCH ASSY

Axle

1шт.

61

296647A1

HARNESS

Ground Speed Sensor

1шт.

Выбрано товаров: 104
