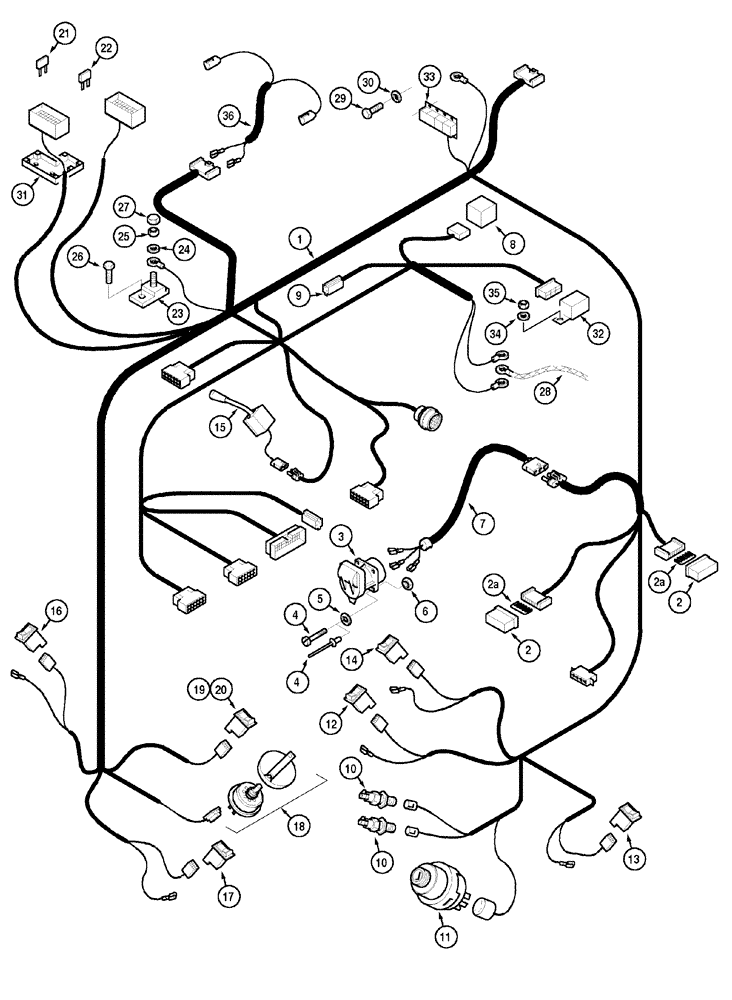

Запчасти Case IH MX120 (04-04) - HARNESS INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

295900A1

HARNESS

Europe Only, Serial No. JJE0956069, Build Date 5-6-1998

1шт.

1

304116A1

HARNESS

Europe Only, Serial No. JJE0956070, Build Date 5-6-1998 - JJE0956905, Build Date 6-30-1998

1шт.

1

300435A3

HARNESS

Europe Only, Serial No. JJE0956906, Build Date 6-30-1998 - JJE0960366, Build Date 6-8-1999

1шт.

1

328286A1

HARNESS

Europe Only, Serial No. JJE090367, Build Date 6-8-1999 - JJE0964574, Build Date 3-23-2000

1шт.

1

375483A1

HARNESS

Europe Only, Serial No. JJE0964757, Build Date 3-23-2000

1шт.

1

333943A1

HARNESS

Europe Only, Suspension Axle, Serial No. JJE0964574, Build Date 3-23-2000

1шт.

1

375484A1

HARNESS

Europe Only, Suspension Axle, Serial No. JJE0964575, Build Date 3-23-2000

1шт.

1

295899A1

HARNESS

N.A. Only, Serial No. JJA0096842, Build Date 11-17-1998 - JJA0102911, Build Date 7-15-1999 Includes 2

1шт.

1

300434A3

HARNESS

N.A. Only, Serial No. JJA0102912, Build Date 7-15-1999 - JJA0108300, Includes 2

1шт.

1

330182A1

HARNESS

N.A. Only, Serial No. JJA0108301 and up, Includes 2,2A

1шт.

2

187308A1

CAP

2шт.

2b

194976A1

BAR

4шт.

3

1533880C1

SOCKET/RECEPTACLE

Auxiliary Power, Europe Only

1шт.

293632A1

SCREW

Consists of 4A,5,6

1шт.

293633A1

RIVET

Consists of 4B,5

1шт.

4

378770A1

RIVET

Pusher

4шт.

4b

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

Use with 293632A1

4шт.

4c

151-535

RIVET,Pop, 1/8" x .462"

Use with 293633A1

4шт.

5

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

6

824-1403

NUT,M3, Cl 5

4шт.

7

227740A2

HARNESS

Auxiliary Power, Europe Only

1шт.

7

227739A2

POWER SOCKET

Auxiliary Power, N.A. Only

1шт.

8

1502351C1

RELAY

12V, Headlight

1шт.

9

1964535C2

FLASHER UNIT,12V

Europe Only, Serial No. JJE0964574, Build Date 3-23-2000

1шт.

9

1987397C2

FLASHER UNIT,12V

Europe Only, Serial No. JJE0964575, Build Date 3-23-2000

1шт.

9

92389C2

FLASHER UNIT

N.A. Only

1шт.

10

177499A2

LIMIT SWITCH

Brake

2шт.

11

REF

INSTRUCTION

Switch, Ignition, See Fig. 04-10

1шт.

12

194112A1

SWITCH ASSY

Europe Only, See Fig. 04-02 and 04-03

1шт.

13

194115A3

SWITCH

Europe Only, See Fig. 04-02 and 04-03

1шт.

14

245908C1

FLASHER SWITCH

See Fig. 04-02 and 04-03

1шт.

15

REF

INSTRUCTION

Switch, See Fig. 06-21

1шт.

16

194113A1

SWITCH ASSY

Europe Only, See Fig. 04-02 and 04-03

1шт.

17

194109A1

SWITCH

See See Fig. 04-02 and 04-03

1шт.

18

197168A1

SWITCH

See See Fig. 04-02 and 04-03, Headlight, 3 Position, Europe Only

1шт.

18

177249A1

ASSEMBLY

N.A. Only

1шт.

18

1331046C2

KNOB

Switch Panel

1шт.

19

194111A1

SWITCH ASSY

Europe Only, See Fig. 04-02 and 04-03

1шт.

20

194110A1

SWITCH

N.A. Only, See Fig. 04-02 and 04-03

1шт.

21

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

2шт.

21

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.

22

121410A1

FUSE,5A, Mini, Tan

1шт.

22

121411A1

FUSE,7.5A, Mini, Brown

1шт.

22

121412A1

FUSE,10A, Mini, Red

1шт.

22

121413A1

FUSE,15A, Mini, Blue

1шт.

22

121414A1

FUSE,20A, Mini, Yellow

1шт.

22

121415A1

FUSE,25A, Mini, Clear

1шт.

22

121416A1

FUSE,30A, Mini, Green

1шт.

23

245539C1

CONNECTION

Battery Power

1шт.

24

492-11025

LOCK WASHER,1/4"

1шт.

25

425-104

NUT,1/4"-20, Cl 5

1шт.

26

765-14419

SELF-TAP SCREW,Oval HD, M4.8 x 1.6 x 19mm

4 x 19 mm

1шт.

26

764-34438

SELF-TAP SCREW,Slotted Oval Hd, M4.8 x 38

1шт.

27

353-187

CAP

1шт.

28

224552A1

CABLE

Ground

1шт.

29

780-34395

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 9.5

8шт.

30

934599R1

WASHER,M5.3 x 15 x 1.6

4шт.

31

191138A1

FUSE HOLDER

1шт.

32

1987452C1

RELAY

12V, 70 amp, Chassis - Starter

1шт.

33

105849A1

RELAY

20 amp, Roof Lights, Headlight, Lower Front Worklights, Accessory Power

2шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

35

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

36

333755A1

HARNESS

Adaptor, Powershift

1шт.

229355A1

CLAMP

Not Illustrated

1шт.
