Запчасти Case IH MX120 (04-03) - HARNESS ENGINE (JJE0956090 - ,JJA0091438, JJA0091709 -) (04) - ELECTRICAL SYSTEMS

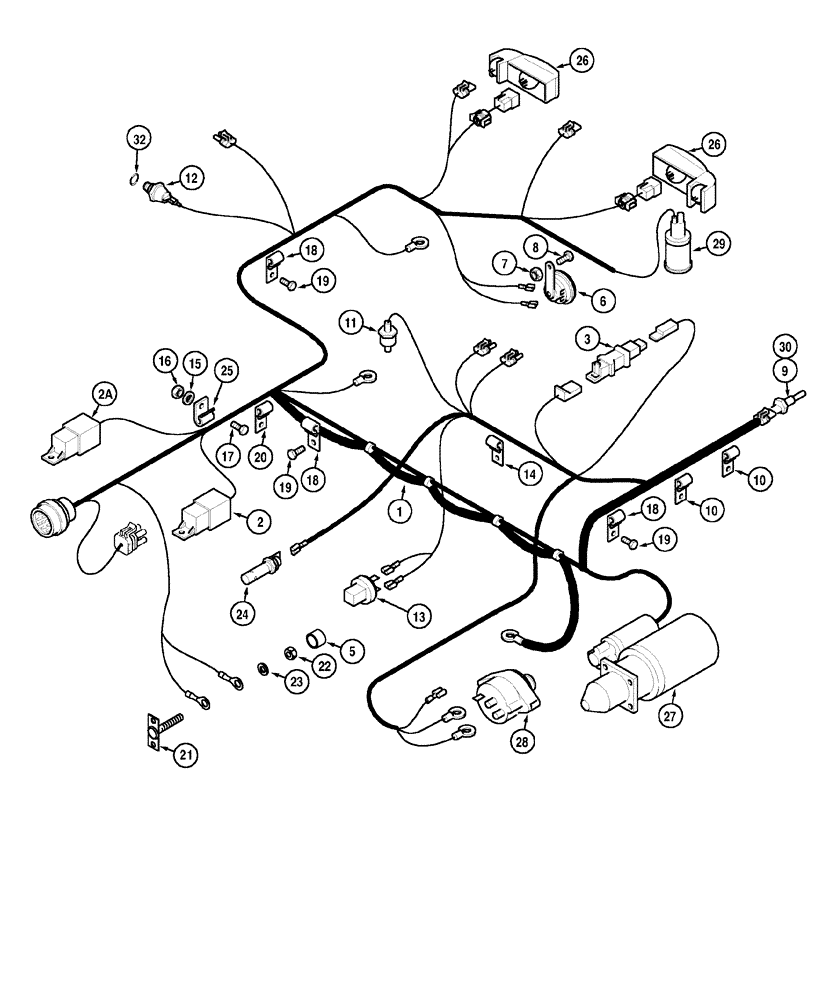

Схема запчастей Case IH MX120 - (04-03) - HARNESS ENGINE (JJE0956090 - ,JJA0091438, JJA0091709 -) (04) - ELECTRICAL SYSTEMS
26
18
32
11
19
23
14
3
10
7
8
19
6
16
18
15
13
19
29
27
22
21
12
17
25
20
9
1
2
5
30
28
2a
26
18
10
24

Артикул

Название

Примечание

Количество

1

304383A1

HARNESS

Serial No. -JJE0960366, Build Date 7-8-1999, Includes 3

1шт.

1

328285A1

HARNESS

Serial No. JJE0960367, Build Date 7-8-1999, Includes 3

1шт.

2

314451A1

RELAY

40 amp, Starter

1шт.

2a

314451A1

RELAY

40 amp, Fuel

1шт.

3

113699A1

RECTIFIER

1шт.

5

3221520R1

CAP

2шт.

6

237582A1

HORN

12V

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

9

143417A3

SENSOR

Coolant

1шт.

10

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

11

243803A2

TEMPERATURE SENDER,1/2" - 14

Water Temp

1шт.

12

277016A1

PRESSURE SWITCH

Oil, Includes 32

1шт.

13

279492A1

RESTRICTION SWITCH

Air Filter, Serial No. JJE0957221, Build Date 7-28-1999

1шт.

14

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

18

229353A1

CLAMP

19,05 mm

3шт.

18a

229357A1

CLAMP

25,4 mm

1шт.

18b

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

20,62 mm

1шт.

19

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

20

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

21

305945A1

SUPPORT

1шт.

See Figure 04-07

1шт.

22

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

24

A77616

GLOW PLUG

Thermostart

1шт.

25

516-22190

CLAMP,J, 13/16" Insul, 3/8" Bolt

1шт.

26

REF

INSTRUCTION

Lamp, Head, See Fig. 04-21

2шт.

27

116928A2

STARTING MOTOR

See Fig.(s) 04-15, 04-16, 04-17

1шт.

27

116928A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 3.0KW

1шт.

27

116928A2C

CORE-STARTER

Return Number, Stater 12 volt, 3.0KW

1шт.

28

REF

INSTRUCTION

Alternator, See Fig.(s) 04-18, 04-19, 04-20

1шт.

29

190752A1

HOUSING

Ether Start, See Fig. 02-06

1шт.

30

345-87

SEALANT

1шт.

30

B17503

LOCTITE

1шт.

32

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 38
