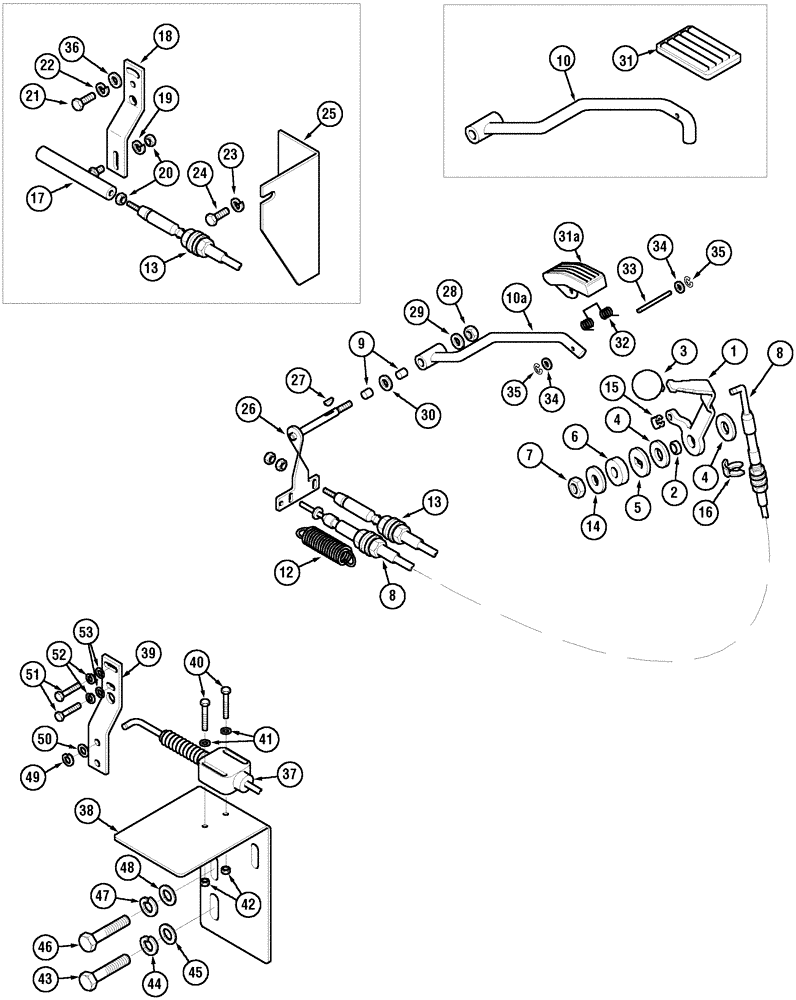

Запчасти Case IH MX120 (03-09) - THROTTLE CONTROL (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
238114A4
CONTROL LEVER
1шт.
2
T101396
RING
1шт.
3
1958759C1
KNOB
1шт.
4
1531493C1
FRICTION WASHER
2шт.
5
T101397
WASHER
1шт.
6
T101407
WASHER
1шт.
7
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
8
239750A3
CABLE ASSY.,1285.2mm L
50.6" L
1шт.
9
1533534C1
PLASTIC RING
If So Equipped
2шт.
251393A2
PEDAL ASSY.
336 mm, Incl. 10, 31 - 35
1шт.
No Longer Available, Order Components
1шт.
301878A1
PEDAL ASSY.
300 mm, Incl. 10A, 31A - 35
1шт.
10
251392A2
ROD ASSY.
1шт.
10a
298634A1
STEM
Use with 301878A1
1шт.
12
248913A2
SPRING
1шт.
12a
3234916R1
SPRING
Use with 301878A1
1шт.
13
193749A3
CABLE ASSY.
97.6" L, Build Date 5-11-2000, Serial Range: -JJE0965023
1шт.
14
T101398
WASHER,8.5mm ID x 40mm OD x 3mm Thk
1шт.
15
800-436
CIRCLIP,M6
1шт.
16
800-4313
CIRCLIP,M13
1шт.
17
248342A1
BALL JOINT
Build Date 5-11-2000, Serial Range: -JJE0965023
1шт.
18
249821A4
CONTROL LEVER
Build Date 5-11-2000, Serial Range: -JJE0965023
1шт.
19
892-11006
LOCK WASHER,M6
Build Date 5-11-2000, Serial Range: -JJE0965023
1шт.
20
829-1406
NUT,Hex, M6 x 1, Cl 10.9
Build Date 5-11-2000, Serial Range: -JJE0965023
2шт.
21
627-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd
Build Date 5-11-2000, Serial Range: -JJE0965023
2шт.
22
892-11006
LOCK WASHER,M6
Build Date 5-11-2000, Serial Range: -JJE0965023
2шт.
23
892-11012
LOCK WASHER,M12
Build Date 5-11-2000, Serial Range: -JJE0965023
2шт.
24
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
Build Date 5-11-2000, Serial Range: -JJE0965023
2шт.
25
249482A3
SUPPORT ASSY.
Build Date 5-11-2000, Serial Range: -JJE0965023
1шт.
26
276470A3
PIVOT ASSY.
1шт.
Ref #26 - option is 378496a1. dmm 3/9/01.
1шт.
27
836-4065
WOODRUFF KEY,M4 x 6.5 x 15.72
1шт.
28
832-10410
NUT,M10 x 1.5, Cl 8
1шт.
29
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
11 x 24 x 3 mm
1шт.
30
230347A1
SPACER
If So Equipped
1шт.
31
259171A1
SKID/SHOE
Use with 251393A2
1шт.
31a
298842A1
SKID/SHOE
Use with 301878A1
1шт.
32
256776A1
SPRING
1шт.
35
800-435
CIRCLIP,M5
2шт.
36
896-11006
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
2шт.
37
358186A1
CABLE ASSY.
2022 mm, Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
If looking to install the new style throttle cable on a tractor below JJA0112044 (one door cab) or JJE 965023 (two door cab) see NTR SB MX 3005 02 for installation instructions. BB TSG 4/1/2002
1шт.
38
359414A1
SUPPORT ASSY.
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
39
375492A1
CONTROL LEVER
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
40
814-6035
BOLT,Hex, M6 x 1 x 35mm, Cl 8.8
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
41
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
42
829-1406
NUT,Hex, M6 x 1, Cl 10.9
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
43
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
44
892-11012
LOCK WASHER,M12
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
45
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
46
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
47
892-11008
LOCK WASHER,8mm ID
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
48
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
49
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
50
3221347R2
CIRCLIP
Build Date 5-11-2000, Start Serial: JJE0965023
1шт.
51
627-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
52
892-11006
LOCK WASHER,M6
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
53
896-11006
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
Build Date 5-11-2000, Start Serial: JJE0965023
2шт.
411384A1
SET OF PARTS
KIT, Throttle Cable, Incl. Ref 37 - 50, 52
1шт.
For Installation of New Style Throttle Cable on Tractors BSN JJE0965023
1шт.
