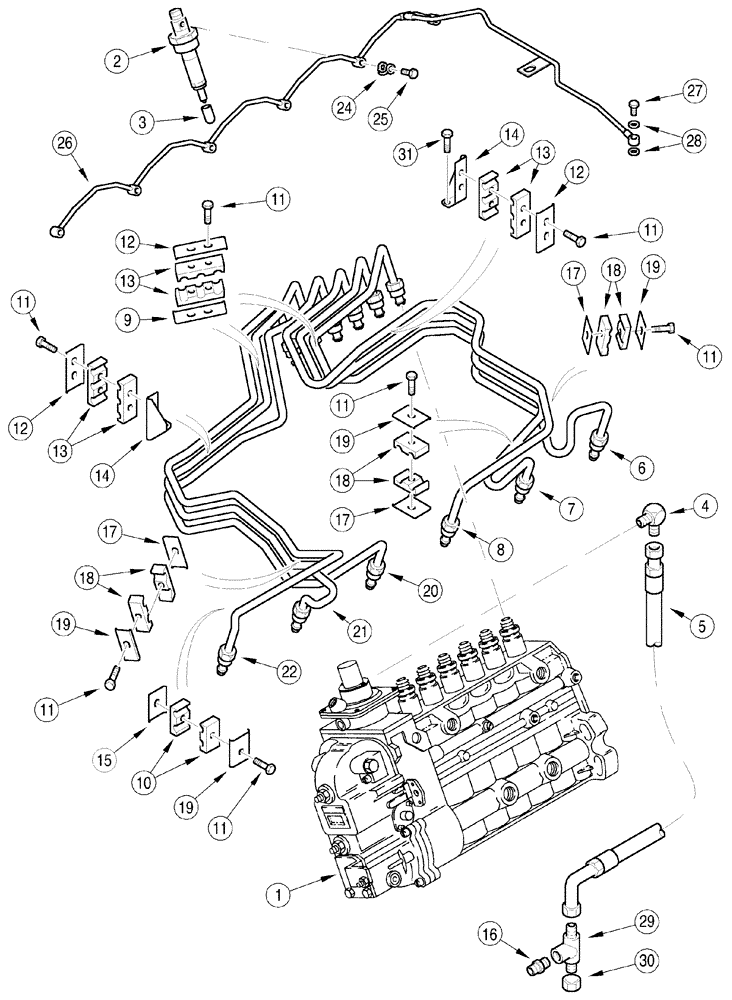

Запчасти Case IH MX120 (03-01) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

REF

INSTRUCTION

Pump Assy, See Fig. 3-03, 3-04

1шт.

2

J929490

NOZZLE INJECTION

See Fig. 3-05

6шт.

2

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION PUMP

6шт.

3

J906659

SEAL

M7

6шт.

4

A77512

ELBOW

Male

1шт.

5

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

6

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 1

1шт.

7

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 2

1шт.

8

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 3

1шт.

9

J917716

BRACE

2шт.

10

J919359

CLAMP

2шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

12

J904519

SUPPORT

4шт.

13

J917747

CLAMP

8шт.

14

J282942

BRACKET

2шт.

15

J940840

BRACE

1шт.

16

J941472

FITTING

1шт.

17

J917717

BRACE

3шт.

18

J917746

CLAMP

6шт.

19

CURJ904711

CLAMP

4шт.

20

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 4

1шт.

21

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 5

1шт.

22

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

Cylinder 6

1шт.

24

J903380

SEAL

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

26

J933295

MANIFOLD

1шт.

27

J924726

BANJO BOLT

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

29

J933291

TEE

1шт.

30

218-752

CAP,37 Degree, 7/16"-20

1шт.

31

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.
